Name: Waveshare IMX219 Camera Module for Raspberry Pi - 8MP - 79.3° - WS-26184
Brand: Waveshare
SKU: 005834
Price: 15 EUR
Availability: InStock

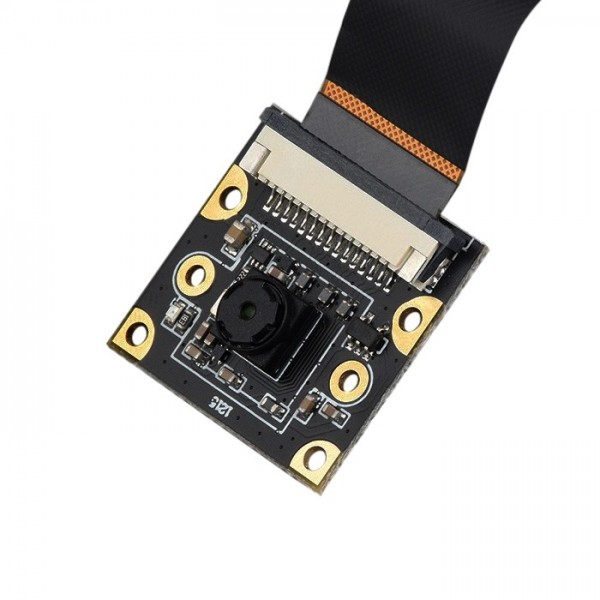

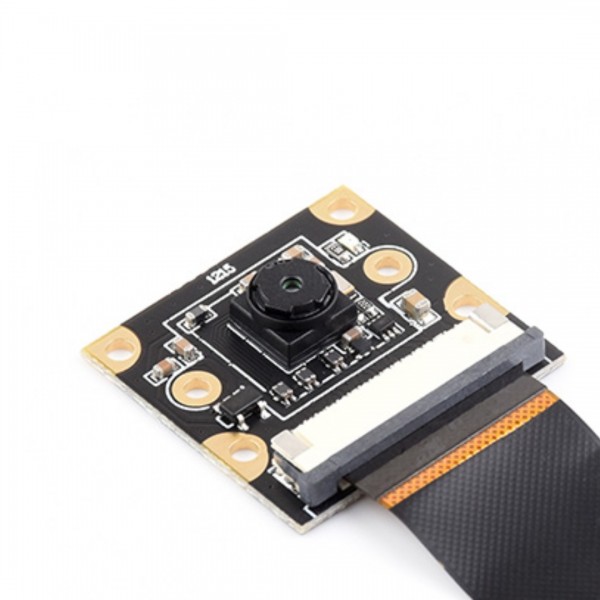

Waveshare IMX219 Camera Module for Raspberry Pi - 8MP - 79.3°

Availability: Directly available from warehouse in Eindhoven
SKU: 005834

Based on 0 review(s) - Write a review

€15.00

Ex Tax: €12.40

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

This camera can be used to replace the standard camera on the Raspberry Pi Camera V2 module. The module is compatible with all Raspberry Pi boards.

Note: The included cable is only suitable for use with the Raspberry Pi 5 and Rasperry Pi Zero.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare IMX219 Camera Module for Raspberry Pi - 8MP - 79.3°

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare IMX219 Camera Module for Raspberry Pi - 8MP - 79.3° , WS-26184 , Cameras and Scanners

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	26184
Features	Camera
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	25
Dimension Y [mm]	24
Dimension Z [mm]	5.4
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.2
Form factor	Module (general)
Communication
Hardware interface(s)	CSI
Scanner/camera
Type	Camera
Sensor(chip)	IMX219
Lense type	Normal
Number of pixels long side	3280
Number of pixels short side	2464
Focal length [mm]	2.85
Aperture	2.00
Maximum viewing angle (diagonal) [°]	79.3
Connectors
Power supply connector(s)	FFC female 15p 1.00mm
IO-connector(s)	FFC female 15p 1.00mm
Wire/cable
Shielding	Yes
Wire/cable length [m]	0.2
Package contents
Package contents	1x IMX219-77 Camera Module 1x Raspberry Pi 5 camera cable - 22 to 15 pin FPC-FFC flex - 20cm
