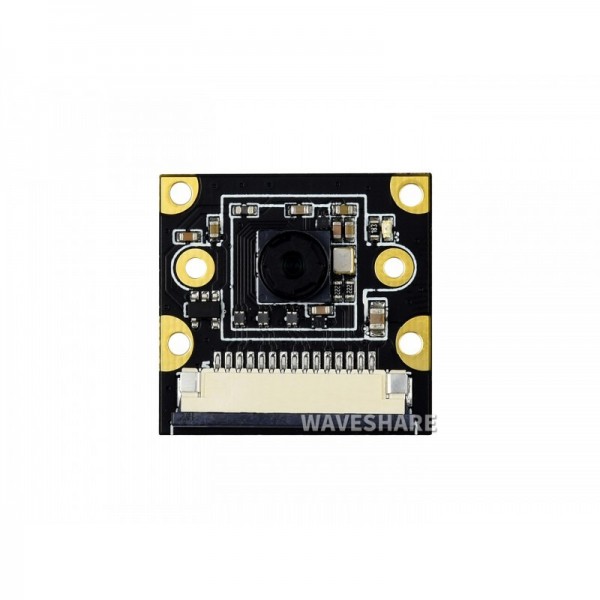

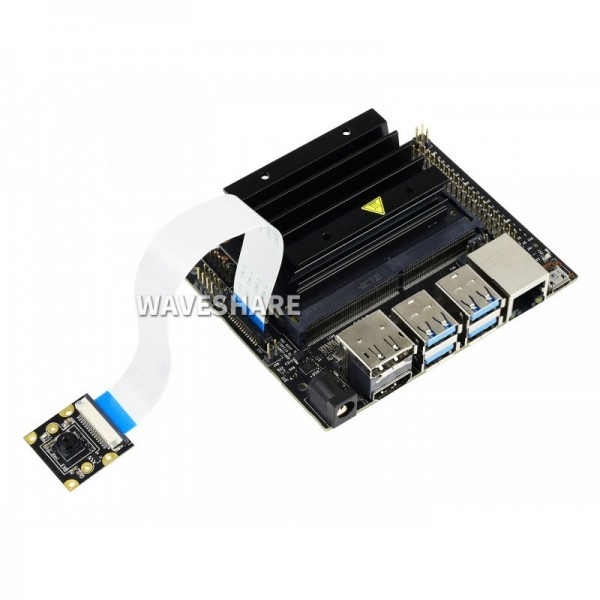

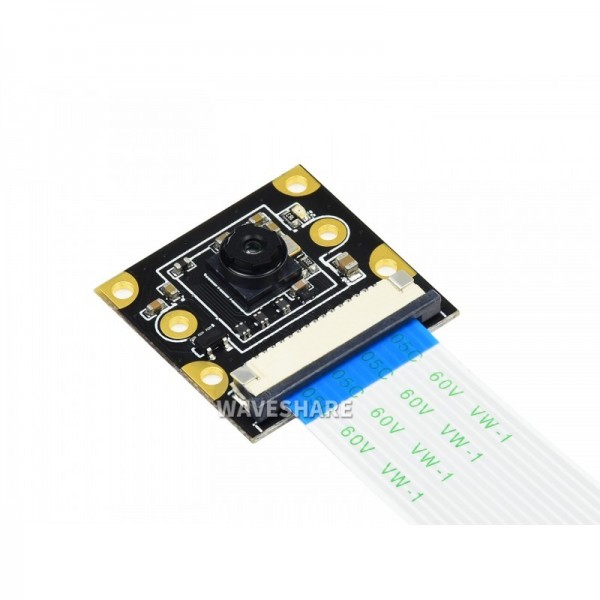

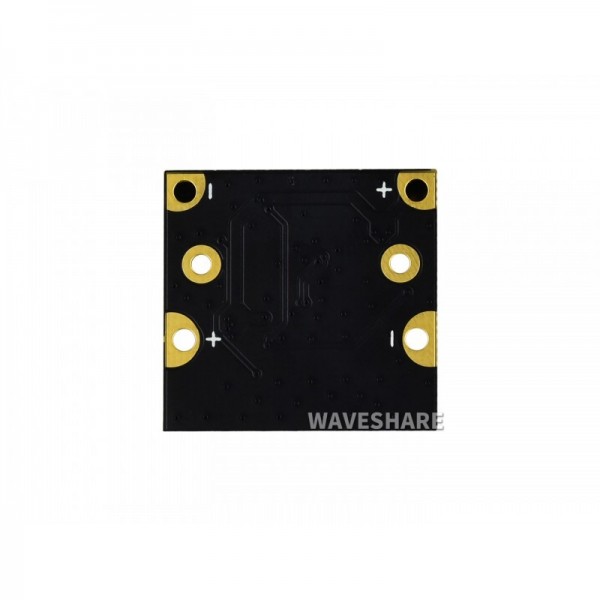

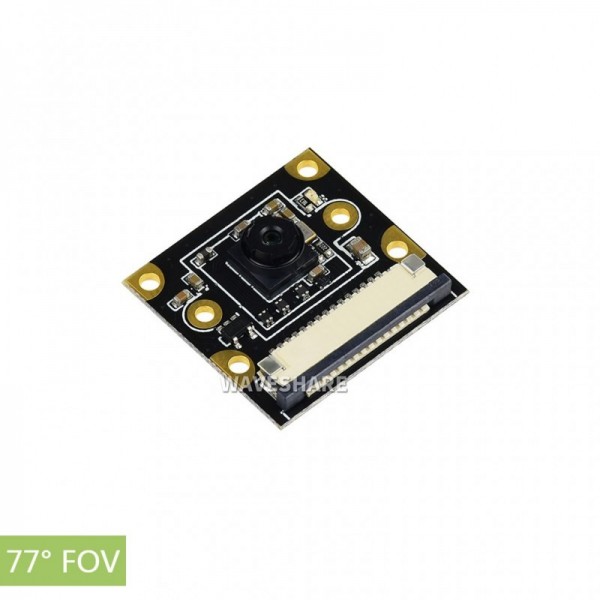

Waveshare IMX219-77 Camera - for Jetson Nano

Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
Waveshare IMX219-77 Camera - for Jetson Nano
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004786
€17.50
Ex Tax: €14.46

A camera module from Waveshare that is suitable for Jetson Nano/Xavier mini computers.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare IMX219-77 Camera - for Jetson Nano

This product has 0 review(s) in total.

Specifications

General
Brand Waveshare
Manufacturer model/SKU 16507
Features Camera
General physical appearance
Main color Black
Weight [g] 3
Dimension X [mm] 25
Dimension Y [mm] 24
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) CSI
Scanner/camera
Type Camera
Sensor(chip) IMX219
Lense type Normal
Number of pixels long side 3280
Number of pixels short side 2464
Focal length [mm] 2.85
Aperture 2.00
Maximum viewing angle (diagonal) [°] 77
Connectors
Power supply connector(s) FFC female 15p 1.00mm
IO-connector(s) FFC female 15p 1.00mm
Package contents
Package contents 1x Camera module
1x Flatcable
