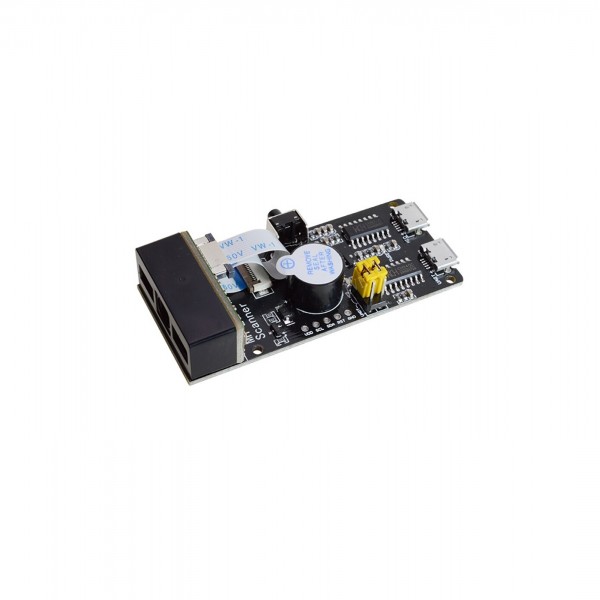

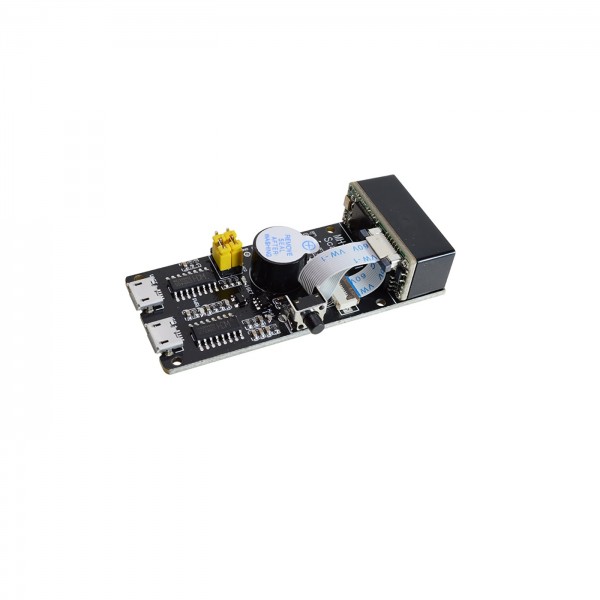

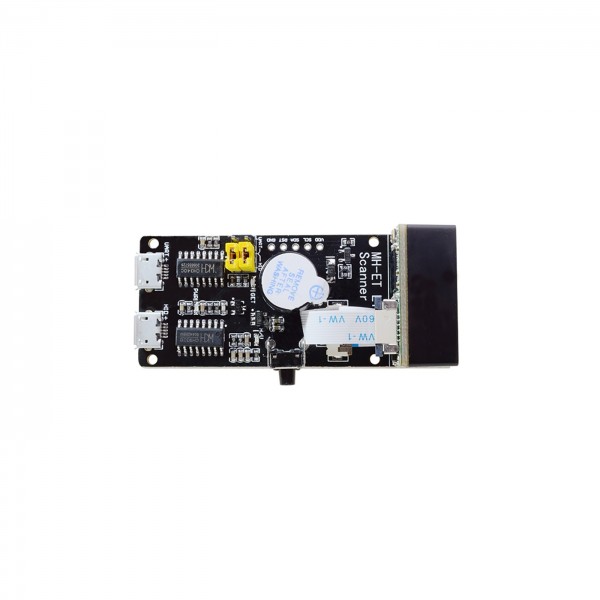

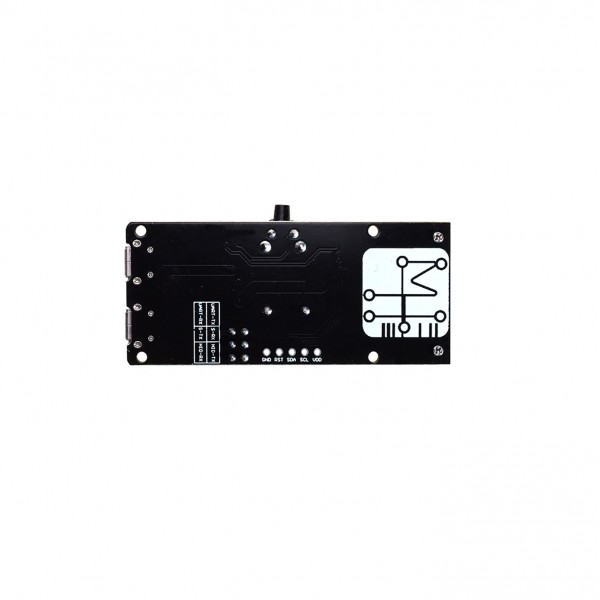

MH-ET LIVE Barcode Scanner V3.0

A simple barcode and QR code scanner. Has a UART interface and an HID interface. The board has a built-in LED for scanning in the dark.

Specifications:

• Micro USB UART interface
• Default baudrate: 9600
• Micro USB HID (Human Interface Device/keyboard) interface
• 1D format: UPC/BAN, UPC/BAN with supplements, BooklandEAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128. Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 or 5, Interleaved 2 or 5, Discrete 2 or 5, Codabar, MSI, Chinese 2 or 5, GS1 DataBar variations, Korean 3 or 5, ISBT Concat
• 2D format: QR Code, PDF417, Data Matrix
• Dimensions (LxWxH): 65x28x13.7mm

For more information see the documents under the tab "Downloads".

Note: After a factory reset, the scanner may no longer give output. This can be solved by executing the following serial commands in sequence (for example, this can be done with the Arduino IDE with a baud rate of 9600):

~M00910001.

~M00510000.

~MA5F0506A.

~M00910000.

An alternative is to scan the following QR codes one after the other:

Check the tab "Downloads" for more information and/or downloads.
