  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005827
€19.50
Ex Tax: €16.12

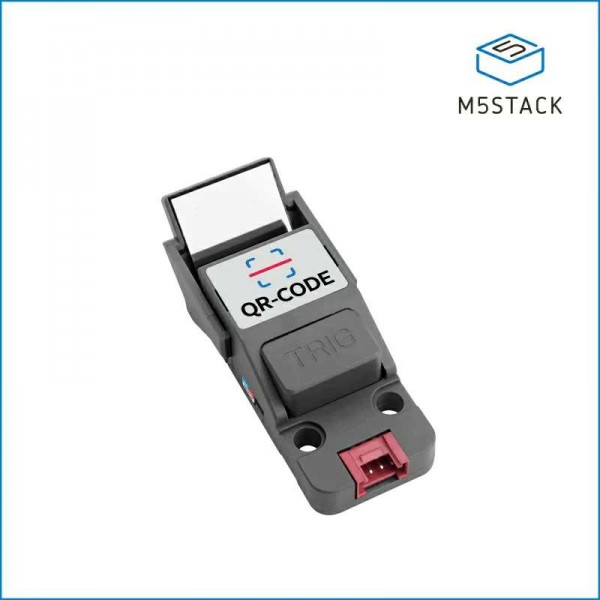

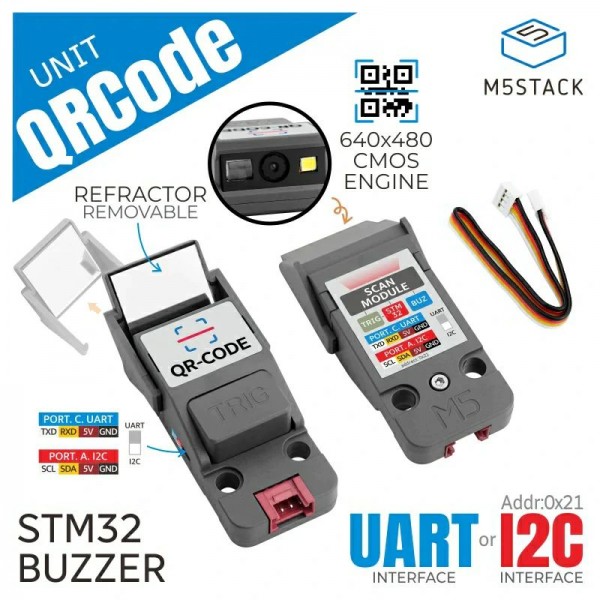

A QR-Code and Barcode scanner module from M5Stack with CMOS imaging. The module works with the I2C or UART protocol, adjustable with a switch. The module includes a buzzer, trigger button and 2 LEDs for feedback. In addition, it comes with a removable mirror to change the scanning direction.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack QR Code Scanner Unit - I2C-UART

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U173
Features Enclosure
Scanner
Speaker/buzzer

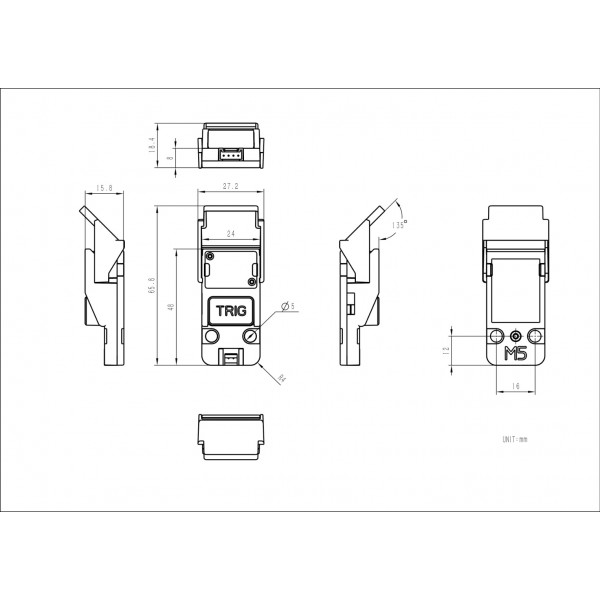

General physical appearance
Main color Gray/silver
Weight [g] 12
(without mirror)
Dimension X [mm] 48
(without mirror)
Dimension Y [mm] 24
(without mirror)
Dimension Z [mm] 16
(without mirror)
Mounting options LEGO (compatible) holes
Form factor Module (general)
M5Stack Unit
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
UART
Default I2C address 0x21
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 10

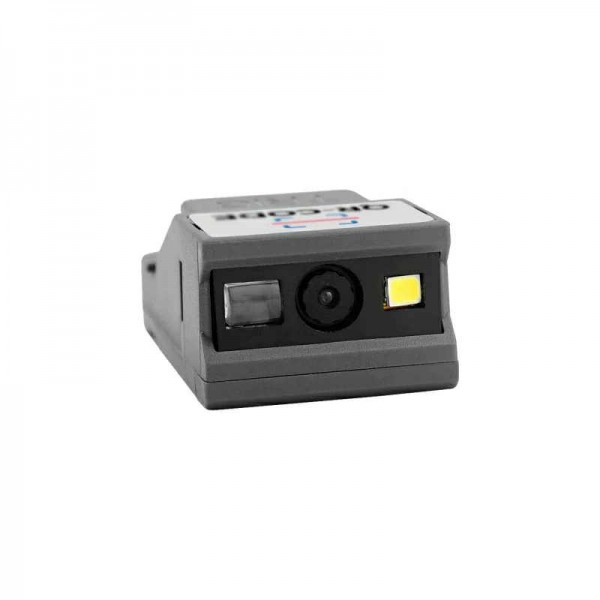

Scanner/camera
Type Scanner
Number of pixels long side 640
Number of pixels short side 480
Supported 1D codes EAN/UPC
Code 39
Code 93
Code 128
Interleaved 2 of 5
Supported 2D codes QR Code
Data Matrix
PDF417
Scanning accuracy [mil] 5
Horizontal viewing angle (inclination) [°] 55
Vertical viewing angle (elevation) [°] 55
Scanning angle (intersection/tilt) [±°] 360
Speaker
Speaker type Buzzer
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Polycarbonate (PC)

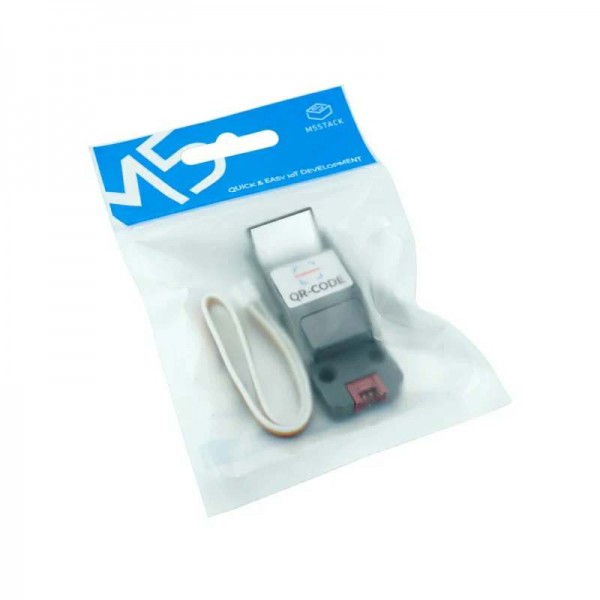

Package contents
Package contents 1x QR code scanner unit
1x Mirror piece
1x Grove cable 20cm
