M5Stack Atomic Barcode QR-Code Scanner 2 Base

M5Stack Atomic Barcode QR-Code Scanner 2 Base
M5Stack Atomic Barcode QR-Code Scanner 2 Base
M5Stack Atomic Barcode QR-Code Scanner 2 Base
M5Stack Atomic Barcode QR-Code Scanner 2 Base
M5Stack Atomic Barcode QR-Code Scanner 2 Base
M5Stack Atomic Barcode QR-Code Scanner 2 Base
M5Stack Atomic Barcode QR-Code Scanner 2 Base
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007126
Based on 0 review(s) - Write a review
€21.25
Ex Tax: €17.56
Add to Cart
Add to wishlist

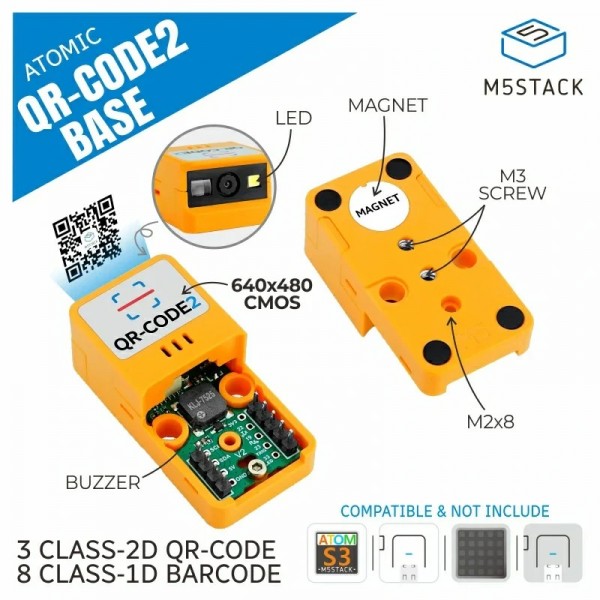

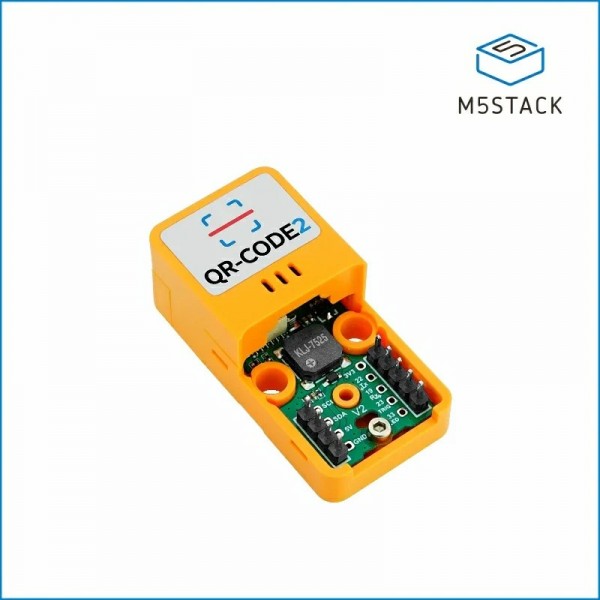

The M5Stack Atomic QR-Code Scanner 2 Base is a compact 1D/2D barcode scanner, specially designed for the Atom series of M5Stack.

Please login or register to review

Reviews Over M5Stack Atomic Barcode QR-Code Scanner 2 Base

This product has 0 review(s) in total.

Tags: M5Stack , Atom , M5Stack Atomic Barcode QR-Code Scanner 2 Base , 007126 , M5Stack , A133-B , Enclosure , Scanner , Speaker/buzzer , UART

Specifications

General
Brand M5Stack
Manufacturer model/SKU A133-B
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Scanner
Enclosure
Speaker/buzzer
General physical appearance
Main color Orange
Weight [g] 12
Dimension X [mm] 48
Dimension Y [mm] 24
Dimension Z [mm] 18
Mounting options Magnets
Screw thread
LEGO (compatible) holes
Thread size M3
Form factor Module (general)
M5Stack Atom layout/shield
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 115200

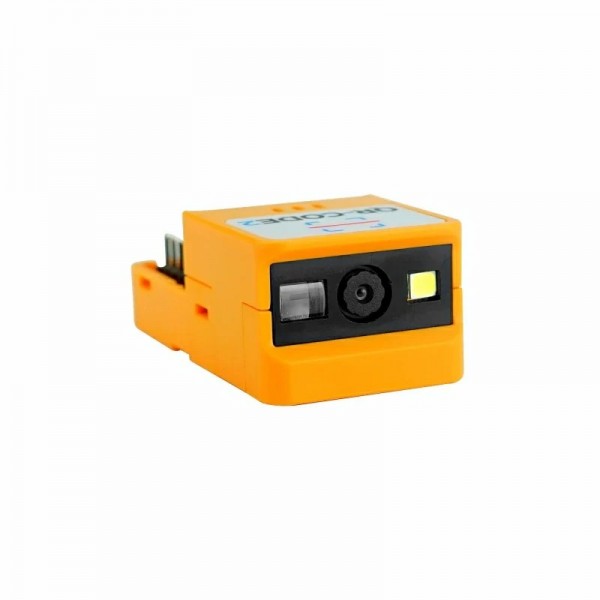

Scanner/camera
Type Scanner
Number of pixels long side 640
Number of pixels short side 480
Supported 1D codes Code 39
Code 93
EAN/UPC
Code 128
Interleaved 2 of 5
Supported 2D codes QR Code
Data Matrix
Micro PDF417
Minimum scan distance [mm] 50
Maximum scanning distance [mm] 160
Scanning accuracy [mil] 5
Scanning angle (intersection/tilt) [±°] 360
Maximum scan angle (deflection/skew) [±°] 55
Maximum scan angle (elevation/pitch) [±°] 55
Speaker
Speaker type Buzzer
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Atomic Barcode QR-Code Scanner 2 Base
