Name: GM73 Barcode and QR Code Scanning Module - DFROBOT-SEN0544
Brand: DFRobot
SKU: 004612
Price: 43 EUR
Availability: InStock

GM73 Barcode and QR Code Scanning Module

Availability: Directly available from warehouse in Eindhoven
SKU: 004612

Based on 0 review(s) - Write a review

€43.00

Ex Tax: €35.54

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

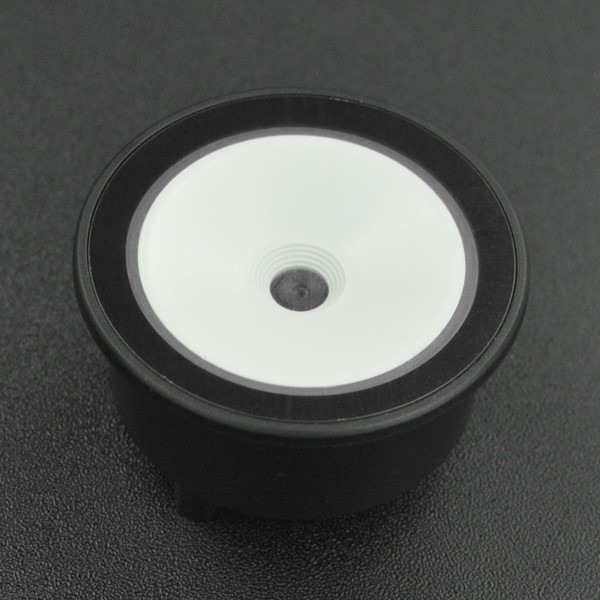

A scanner that can scan both barcodes and QR codes. It can be read out via UART or via USB. In the second case, the module acts as a keyboard. This module is easy to build into a piece of sheet material or wall due to its round shape and the supplied mounting material.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over GM73 Barcode and QR Code Scanning Module

Average Rating:

This product has 0 review(s) in total.

Manual: 004612_gm73_barcode_scanner.pdf

Tags: GM73 Barcode and QR Code Scanning Module , DFROBOT-SEN0544 , Cameras and Scanners

Specifications

General
Brand	No brand
Manufacturer model/SKU	GM73
Minimum operating humidity [%R.H.]	5
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Scanner
General physical appearance
Main color	Black

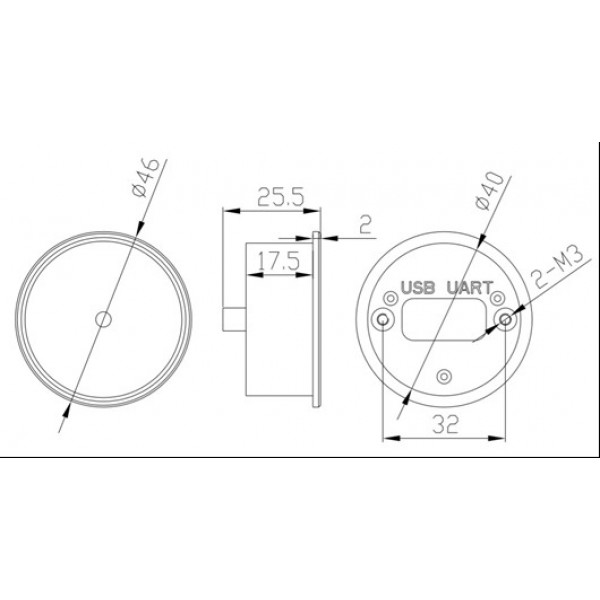

Dimension X [mm]	46
Dimension Y [mm]	46
Dimension Z [mm]	26
Mounting options	Mounting hole(s)
Maximum mounting thickness [mm]	23
Recommended mounting dimensions [mm]	ø40
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	Native USB UART
Default baudrate	9600
Scanner/camera
Type	Scanner
Supported 1D codes	EAN/UPC Code 39 Code 93 Code 128 UCC/EAN 128 Codabar Interleaved 2 of 5 MSI-Plessey GS1 Databar Code 11 Industrial 25 Standard 25 Matrix 2 of 5
Supported 2D codes	QR Code Data Matrix PDF417
Minimum scan distance [mm]	30
Maximum scanning distance [mm]	150
Scanning accuracy [mil]	5
Horizontal viewing angle (inclination) [°]	60
Vertical viewing angle (elevation) [°]	46
Scanning angle (intersection/tilt) [±°]	360
Maximum scan angle (deflection/skew) [±°]	55
Maximum scan angle (elevation/pitch) [±°]	55
Connectors
Power supply connector(s)	Molex Picoblade (compatible) male
IO-connector(s)	Molex Picoblade (compatible) male
Package contents

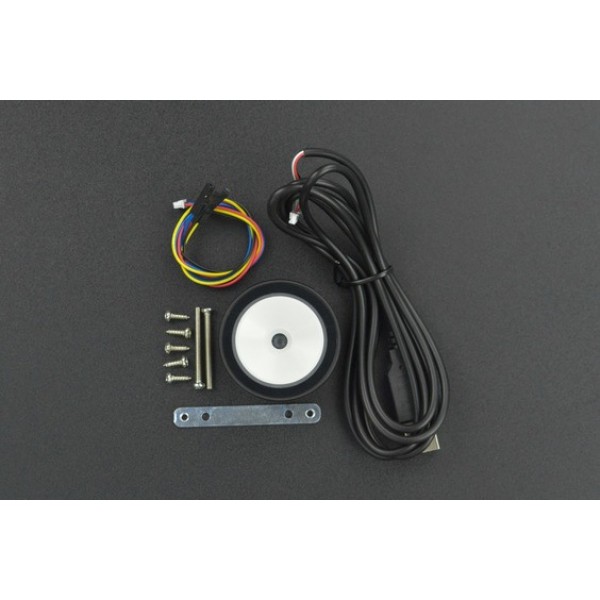

Package contents	1x GM73 1x DuPont female to Molex Picoblade 4p cable 1x USB-A male to Molex Picoblade 4p cable 1x Mounting bracket 2x Mounting bolt M3x30mm 2x Mounting screw
