Keyestudio PIR Motion Sensor Module
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006340
€5.00
Ex Tax: €4.13
Your shopping cart is empty!

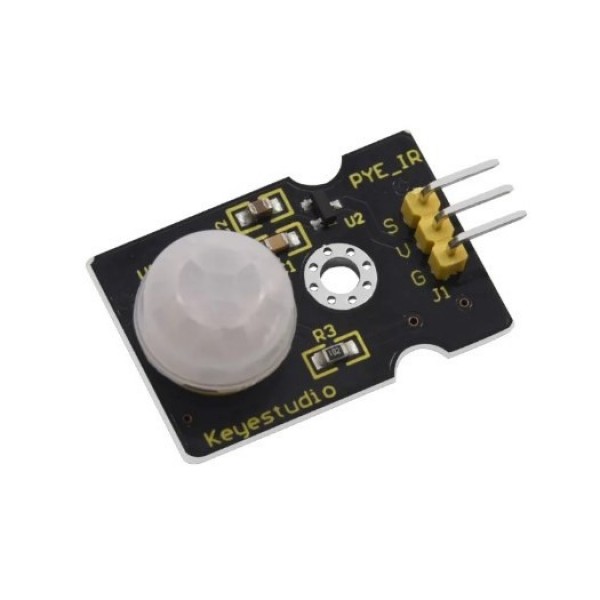

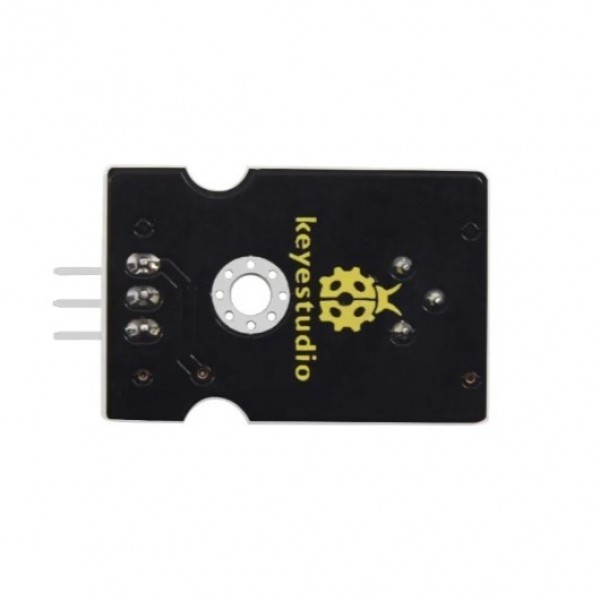

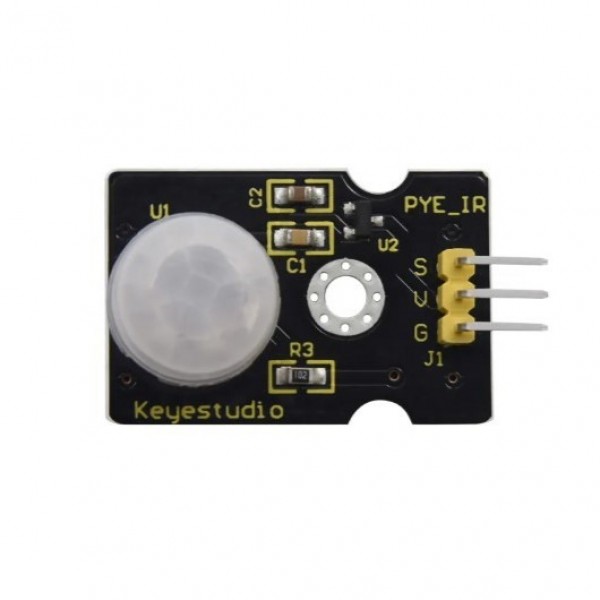

A PIR (pyroelectric infrared) sensor module from Keyestudio. This sensor can detect movement based on infrared light.
See the following page for more information: Wiki
| General | |
| Brand | Keyestudio |
| Manufacturer model/SKU | |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 85 |
| Features | Object detection sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 4 |
| Dimension X [mm] | 30 |
| Dimension Y [mm] | 20 |
| Mounting options | Pin headers Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.2 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 18 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | Digital |
| Object detection sensor | |
| Type | PIR |
| Detection type | Motion |
| Adjustable detection distance | No |
| Adjustable sensitivity | No |
| Maximum measuring range [cm] | 400 |
| Maximum detection angle [°] | 100 |
| Minimum delay time [s] | 2.7 |
| Maximum delay time [s] | 2.7 |
| Adjustable delay time | No |
| Connectors | |
| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) |
| Package contents | |
| Package contents | |
