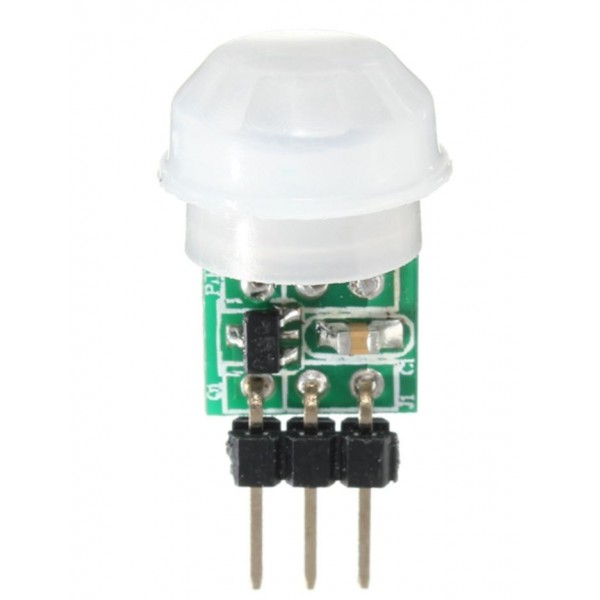

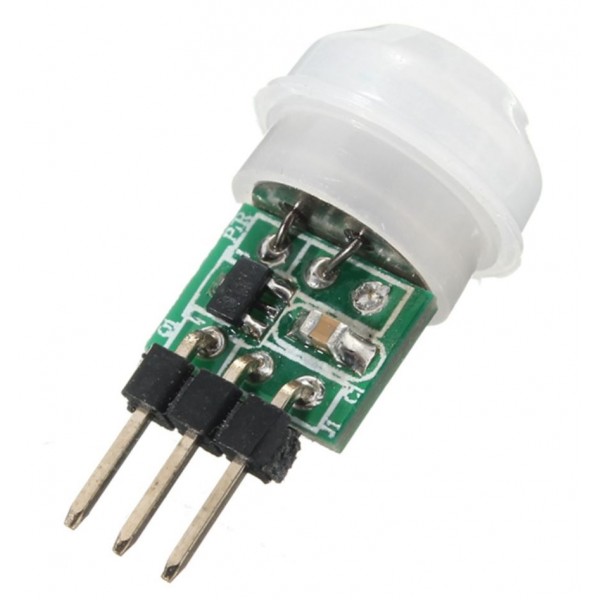

IR Pyroelectric Infrared PIR Motion Sensor Detector Module - Mini

This motion sensor is a mini version of the standard PIR sensor that we sell. This type of sensor can be used to detect movement by means of infrared light.

• Input Voltage: DC 2.7-12V
• Quiescent current: <100uA
• Level output: High 3.3 V/Low 0V
• Delay time: approximately 2 seconds (± 30% deviation)
• Standard detection at approximately 3 meters distance
• PCB dimensions: 10mm*8mm
• Total size: 12mm*27mm
• Angle of Sensor: <100 °
• Working temperature: -20°C - +60°C
• Lens type: Small

Pins:

• Vin (indicated with "+" and/or "U1")
• Out (middle pin)
• GND/ground/min  (indicated with "-" and/or "C1")
