Name: Hi-Link HLK-LD1115H-24G 24GHz Radar Sensor Module - HLK-LD1115H-24G
SKU: 005045
Price: 9 EUR
Availability: InStock

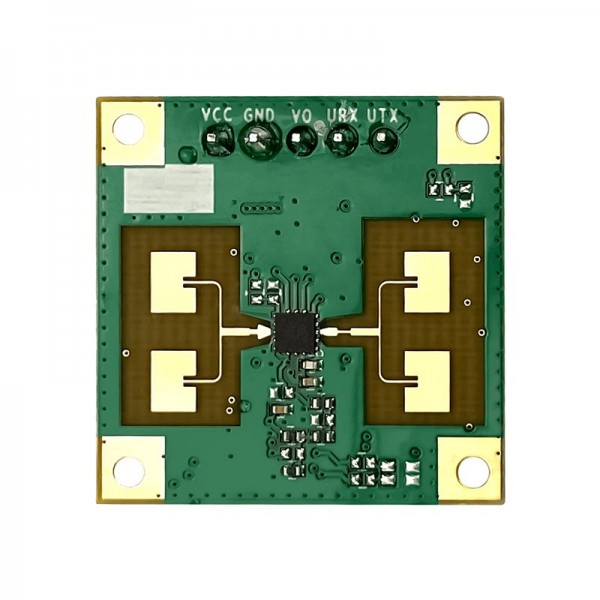

Hi-Link HLK-LD1115H-24G 24GHz Radar Sensor Module

Availability: Directly available from warehouse in Eindhoven
SKU: 005045

Based on 0 review(s) - Write a review

€9.00

Ex Tax: €7.44

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

A radar sensor that can be used to detect movement and/or static presence. This sensor works based on microwaves and the Doppler effect. This sensor can detect movement due to a difference in speed, which also works through almost all materials except metal. The sensor status can be read via the "VO" pin and/or via UART.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Hi-Link HLK-LD1115H-24G 24GHz Radar Sensor Module

Average Rating:

This product has 0 review(s) in total.

Manual: 005045_HLK-LD1115H-24G_Use_Manual.pdf

Tags: Hi-Link HLK-LD1115H-24G 24GHz Radar Sensor Module , HLK-LD1115H-24G , Motion

Specifications

General
Brand	Hi-Link
Manufacturer model/SKU	HLK-LD1115H-24G
Features	Object detection sensor
General physical appearance
Main color	Green
Weight [g]	3
Dimension X [mm]	25
Dimension Y [mm]	25
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	1.9
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.6
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART Digital
Default baudrate	115200
Object detection sensor
Type	Radar
Detection type	Presence
Adjustable sensitivity	Yes
Minimum measuring range [cm]	0.1
Maximum measuring range [cm]	1600 (motion) 500 (presence)
Adjustable delay time	Yes
Operating frequency [GHz]	24
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Radar sensor
