DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m

DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
New
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006232
€12.50
Ex Tax: €10.33

This sensor serves as a replacement for a PIR sensor and works on the basis of millimeter waves and the doppler effect. Due to a difference in speed, this sensor can detect motion, this also works through almost all materials except metal. The sensor status can be read via the "OUT" pin. In addition, you can use the UART interface to read out more information such as detection distance, and adjust measuring settings.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot mmWave - C4001 24GHz Human Presence Detection Sensor - 25m

This product has 0 review(s) in total.

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0609
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 3

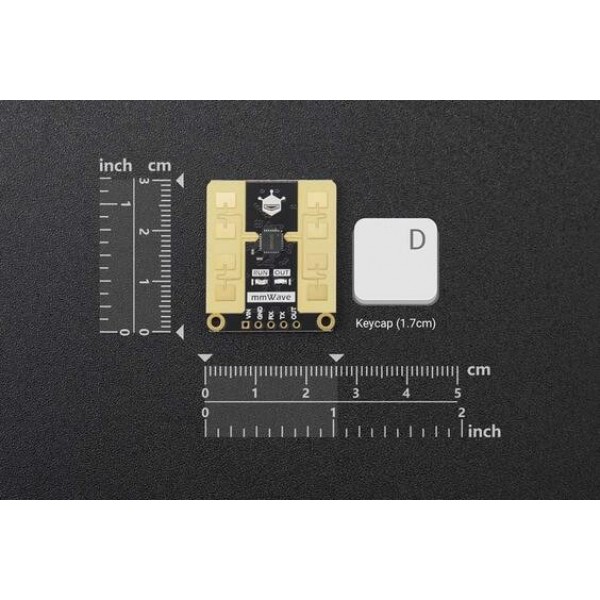

Dimension X [mm] 30
Dimension Y [mm] 26
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) UART
Digital
Default baudrate 9600
Object detection sensor
Type Radar
Detection type Motion
Distance
Presence
Adjustable detection distance Yes
Adjustable sensitivity Yes
Minimum measuring range [cm] 120
Maximum measuring range [cm] 2500
(distance, motion)
1600
(presence)
Maximum detection angle [°] 100
Adjustable delay time Yes
Operating frequency [GHz] 24
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents

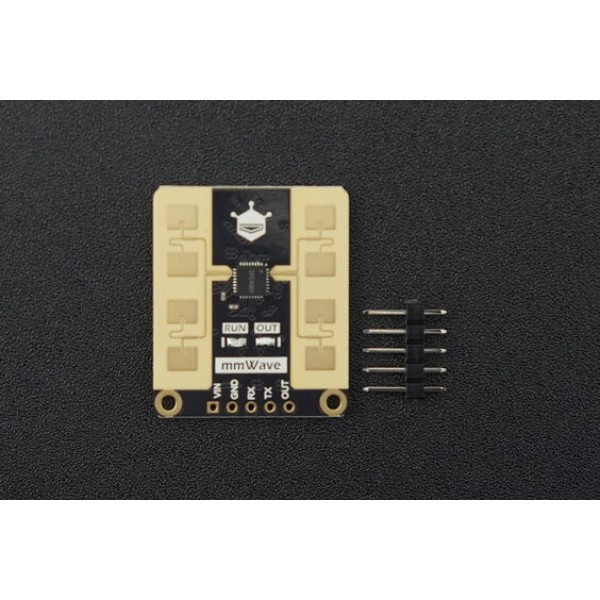

Package contents 1x C4001 sensor module
1x Male pin header 5p
