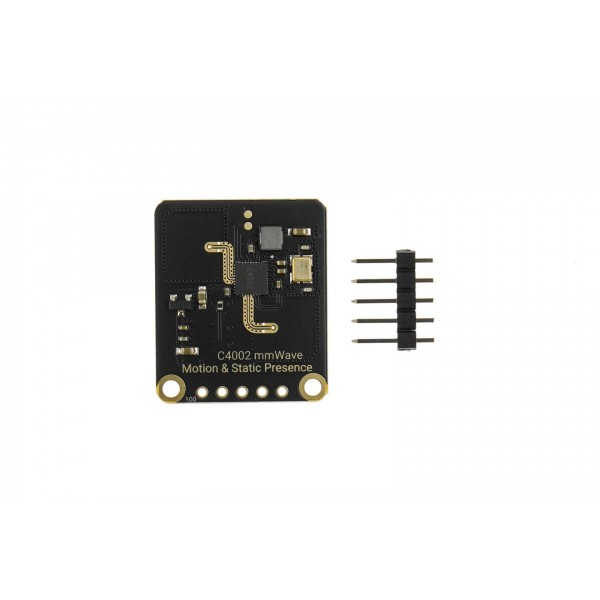

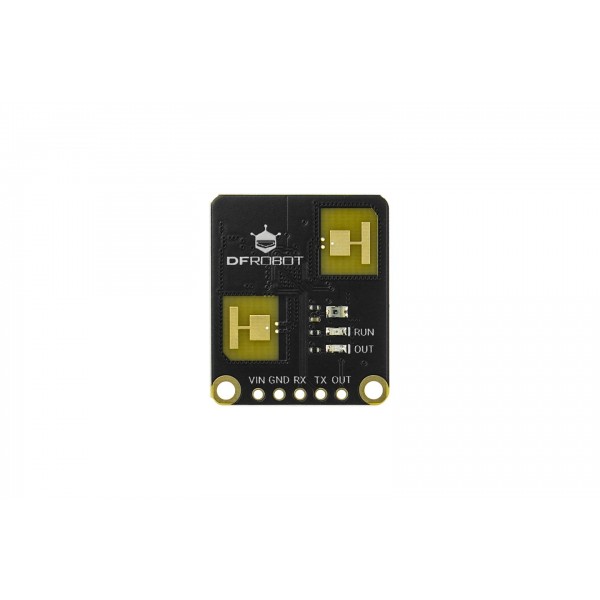

DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m

DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
New
DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007767
Based on 0 review(s) - Write a review
€9.50
Ex Tax: €7.85
Add to Cart
Add to wishlist

This radar sensor module from DFRobot can detect human presence, motion and distance. Due to a difference in speed, this sensor can detect motion, this also works through almost all materials except metal. The UART interface can be used to read out the sensor and to adjust measuring settings.

See the following page for an example with Home Assistant (/ESPHome): Home Assistant

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m

This product has 0 review(s) in total.

Tags: Sensors , Motion , DFRobot Gravity mmWave C4002 24GHz Human Presence Detection Sensor - 10m , 007767 , DFRobot , SEN0691 , Object detection sensor , Light sensor , UART

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0691
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 85
Features Light sensor
Object detection sensor
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 26
Dimension Y [mm] 22
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.6
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 3.6
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) UART
Default baudrate 115200
Object detection sensor
Type Radar
Detection type Motion
Distance
Presence
Adjustable detection distance Yes
Adjustable sensitivity Yes
Maximum measuring range [cm] 1000
Maximum detection angle [°] 120
Operating frequency [GHz] 24
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Sensor module
1x Male pin header 5p
