DFRobot Fermion GR10-30 Gesture Sensor

DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
2-4 Weeks
DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
DFRobot Fermion GR10-30 Gesture Sensor
  • Availability: 2-4 Weeks
  • SKU: 005084
Based on 0 review(s) - Write a review
€18.00
Ex Tax: €14.88
Add to Cart
Add to wishlist

This GR10-30 gesture sensor from DFRobot can recognise 12 different hand gestures with a range up to 30cm. Parameters for gesture detection can easilly be customised for accurate results.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion GR10-30 Gesture Sensor

This product has 0 review(s) in total.

Tags: Sensors , Motion , DFRobot Fermion GR10-30 Gesture Sensor , 005084 , DFRobot , SEN0543 , Object detection sensor , I2C , UART

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0543
Minimum operating humidity [%R.H.] 5
Maximum operating humidity [%R.H.] 85
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 70
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 24
Dimension Y [mm] 21
Mounting options SMT
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
UART
Default baudrate 9600
Default I2C address 0x73
Adjustable I2C address No
Object detection sensor
Type IR
Detection type Gesture
Adjustable detection distance Yes
Adjustable sensitivity Yes
Maximum measuring range [cm] 30
Connectors
Power supply connector(s) Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
IO-connector(s) Solder pin(s) (SMT)
Through hole solder pin(s) (2.54mm)
Package contents

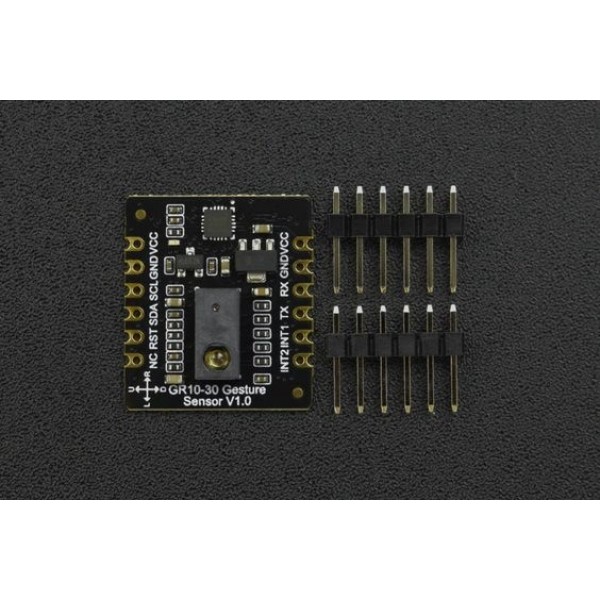

Package contents 1x GR10-30 Gesture sensor
2x Male pin headers 6p
