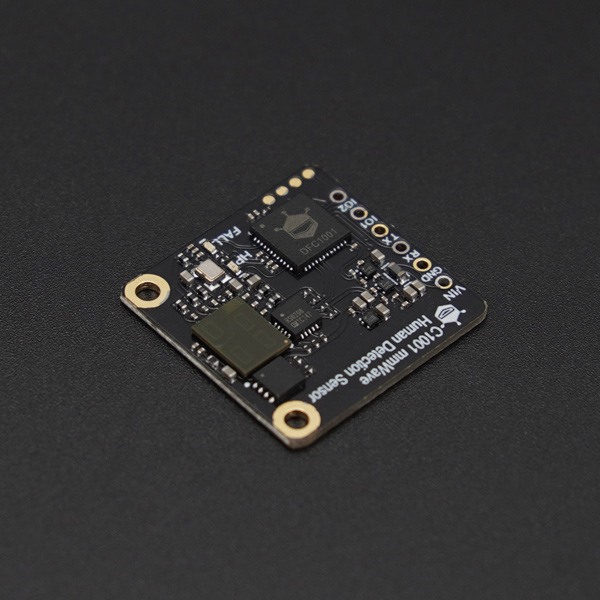

DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m

DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m
DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m
DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m
DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m
DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006663
€39.00
Ex Tax: €32.23

The SEN0623 is a sensor based on 60GHz radar technology that detects human static presence, posture, sleep states, and vital signs.

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot C1001 60GHz mmWave Indoor Fall Detection Sensor - 11m

This product has 0 review(s) in total.

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0623
Minimum operating temperature [°C] -20
Maximum operating temperature [°C] 60
Features Object detection sensor
Heart rate sensor
General physical appearance
Main color Black
Weight [g] 2

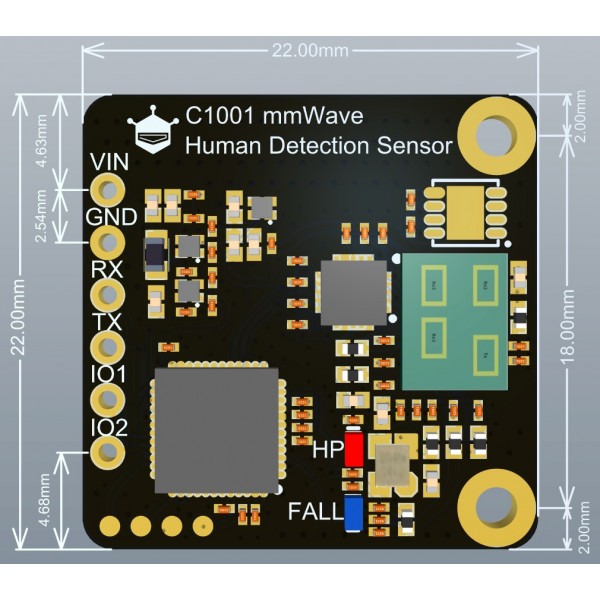

Dimension X [mm] 22
Dimension Y [mm] 22
Dimension Z [mm] 2
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Object detection sensor
Type Radar
Detection type Motion
Presence
Adjustable detection distance No
Adjustable sensitivity No
Minimum measuring range [cm] 40
Maximum measuring range [cm] 1100
(movement)
250
(sleep)
150
(heart rate)
Maximum detection angle [°] 100
(movement)
Operating frequency [GHz] 60
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Radar sensor
1x Male pin header 6p
