LilyGO T-Radar Sensor Module - 60GHz - A121

LilyGO T-Radar Sensor Module - 60GHz - A121
LilyGO T-Radar Sensor Module - 60GHz - A121
LilyGO T-Radar Sensor Module - 60GHz - A121
LilyGO T-Radar Sensor Module - 60GHz - A121
LilyGO T-Radar Sensor Module - 60GHz - A121
LilyGO T-Radar Sensor Module - 60GHz - A121
LilyGO T-Radar Sensor Module - 60GHz - A121
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007407
Based on 0 review(s) - Write a review
€18.00
Ex Tax: €14.88
Add to Cart
Add to wishlist

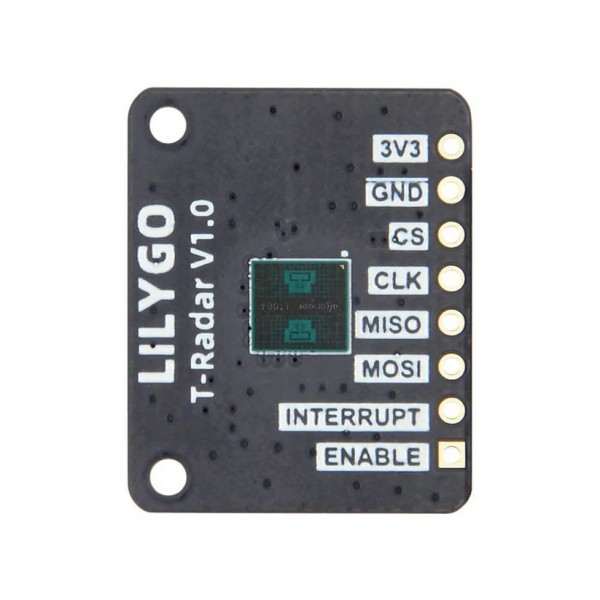

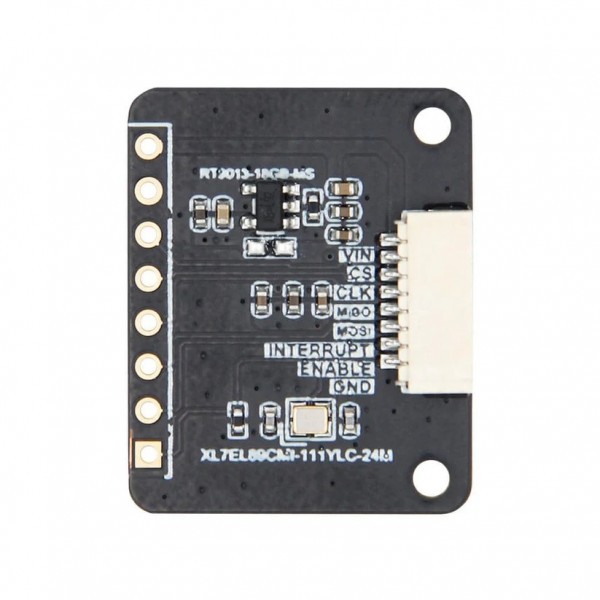

A radar sensor module from LilyGO based on the advanced A121 radar IC from Acconeer. The sensor can measure distance and detect presence, among other things, but also differences in materials (such as a rug or hard surface). The sensor can be connected via the through-hole pins or via a cable. This is not included but can be ordered separately: Molex Picoblade Female to DuPont Female Compatible Cable - 8p (note: the cable color does not logically correspond to the pins).

See the following page for more information: GitHub

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over LilyGO T-Radar Sensor Module - 60GHz - A121

This product has 0 review(s) in total.

Tags: Sensors , Distance , LilyGO T-Radar Sensor Module - 60GHz - A121 , 007407 , LilyGO TTGO , H746 , Object detection sensor , Digital , SPI

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU H746
Model revision V1.0
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 25
Dimension Y [mm] 20
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) SPI
Digital
Object detection sensor
Sensor (chip) A121
Type Radar
Detection type Distance
Presence
Adjustable sensitivity Yes
Minimum measuring range [cm] 3
Maximum measuring range [cm] 2300
(water level)
700
(human presence)
Accuracy [±mm] 2.67
(see datasheet for details)
Operating frequency [GHz] 60
Connectors
Power supply connector(s) Molex Picoblade (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) Molex Picoblade (compatible) male
Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Sensor module
