DFRobot Ultrasonic ToF Material Detection Sensor
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005518
€13.50
Ex Tax: €11.16
Your shopping cart is empty!

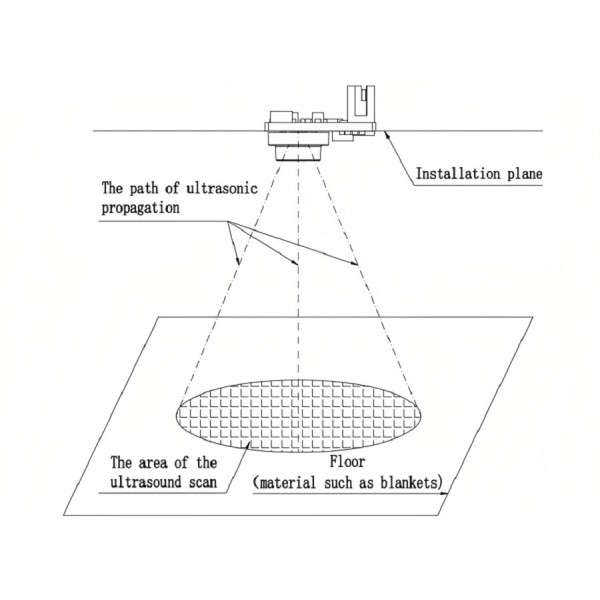

An ultrasonic time-of-flight sensor from DFRobot. This sensor measures the energy of an ultrasonic echo to identify materials. The sensor can determine if a material is soft or hard between 2-10cm.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | SEN0560 |
| Minimum operating temperature [°C] | -10 |
| Maximum operating temperature [°C] | 50 |
| Lifespan [h] | 3000 |
| Features | Material detection sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 2 |

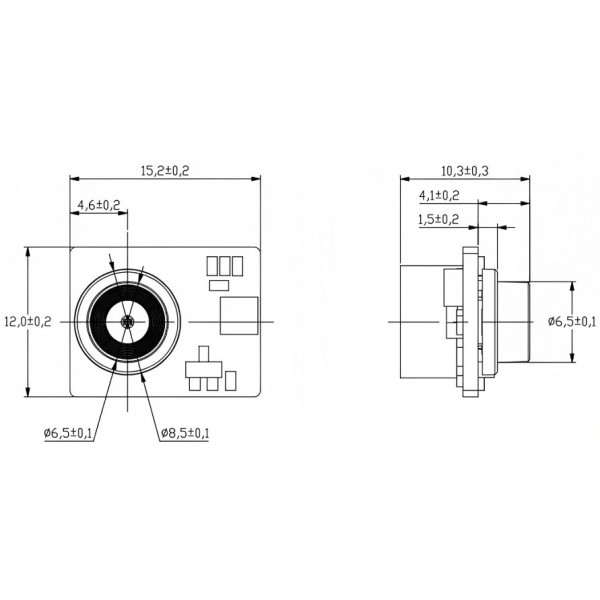

| Dimension X [mm] | 15 |
| Dimension Y [mm] | 12 |
| Water and dust protection | IP54 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 2.8 |
| Maximum supply voltage [V DC] | 3.6 |
| Minimum IO-pin input voltage [V] | 2.8 |
| Maximum IO-pin input voltage [V] | 3.5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | UART Digital |
| Default baudrate | 115200 |
| Object detection sensor | |
| Type | Ultrasonic |
| Detection type | Material |
| Adjustable sensitivity | No |
| Minimum measuring range [cm] | 2 |
| Maximum measuring range [cm] | 10 |
| Maximum detection angle [°] | 45 |
| Connectors | |
| Power supply connector(s) | JST-ZH (compatible) male |
| IO-connector(s) | JST-ZH (compatible) male |
| Package contents | |

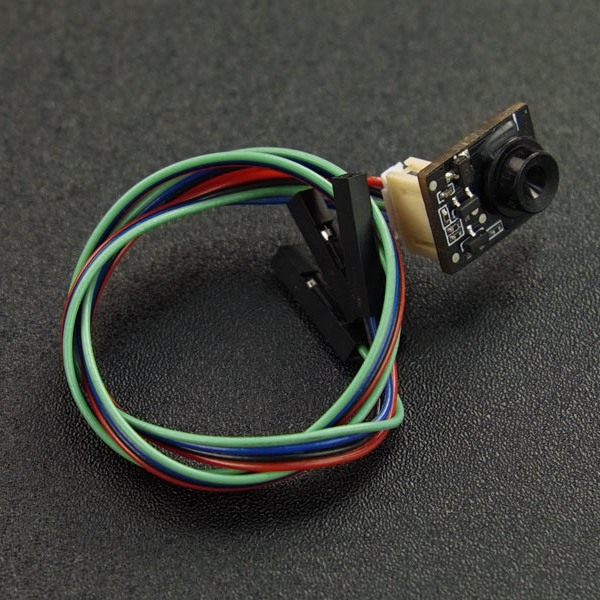

| Package contents | 1x ToF Material Detection Sensor 1x JST-ZH female to DuPont female cable 4p |
