AS5600 Magnetic Angle Sensor Encoder Module

AS5600 Magnetic Angle Sensor Encoder Module
AS5600 Magnetic Angle Sensor Encoder Module
AS5600 Magnetic Angle Sensor Encoder Module
AS5600 Magnetic Angle Sensor Encoder Module
AS5600 Magnetic Angle Sensor Encoder Module
AS5600 Magnetic Angle Sensor Encoder Module
AS5600 Magnetic Angle Sensor Encoder Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004634
Based on 1 review(s) - Write a review
€3.00
Ex Tax: €2.48
Add to Cart
Add to wishlist

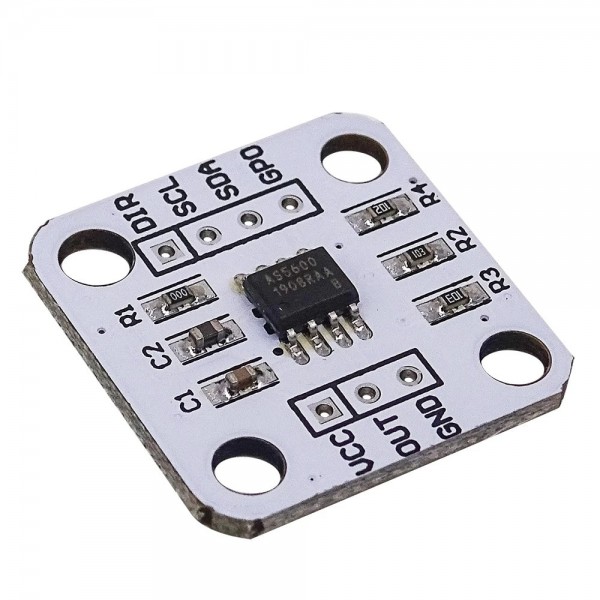

An encoder module that can very accurately measure an angle of, for example, an axis by means of a magnetic field. In order for the sensor to work, the diametrically magnetized magnet must be attached to a shaft (e.g. with glue). The sensor must then be mounted just above it (maximum ~2mm).

By default, the module works on 3.3V (both power supply and signals). However, if the resistor R1 is removed, it is also possible to operate the module at 5V.

See the following page for an Arduino library for this sensor: AS5600

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over AS5600 Magnetic Angle Sensor Encoder Module

This product has 1 review(s) in total.

Datasheet: 004634_AS5600.pdf

Tags: Sensors , Acceleration-Rotation , AS5600 Magnetic Angle Sensor Encoder Module , 004634 , No brand , Rotary encoder , I2C , Analog , PWM

Specifications

General
Brand No brand
Features Rotary encoder

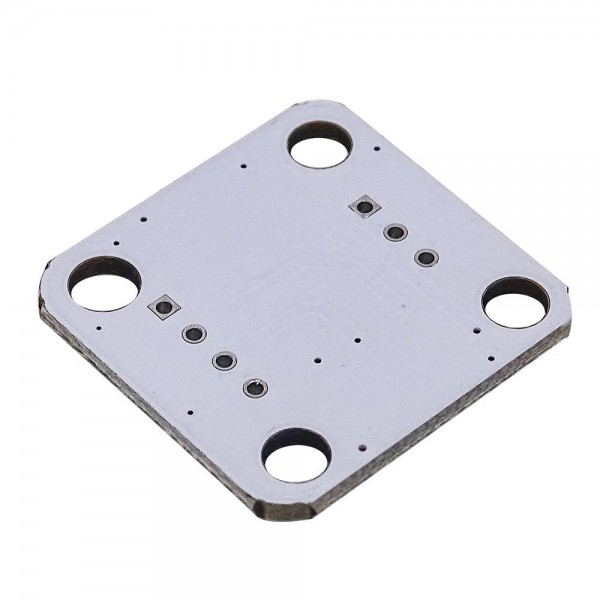

General physical appearance
Main color White
Weight [g] 3
Dimension X [mm] 23
Dimension Y [mm] 23
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.7
Form factor Module (general)
Experiment PCB friendly Yes
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
PWM
Analog
Rotary encoder
Encoder (chip) AS5600
Encoder type Absolute
Encoder technology Magnetic field orientation
Number of steps/pulses per rotation 4096
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Pin distance [mm] 2.54

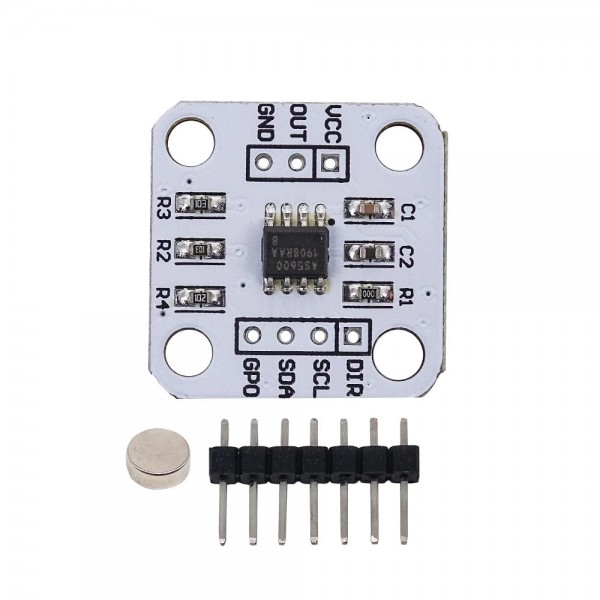

Package contents
Package contents 1x AS5600 Module
1x Diametrically magnetized magnet
1x Male header set
