Keyestudio Steam and Rain Sensor Module

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

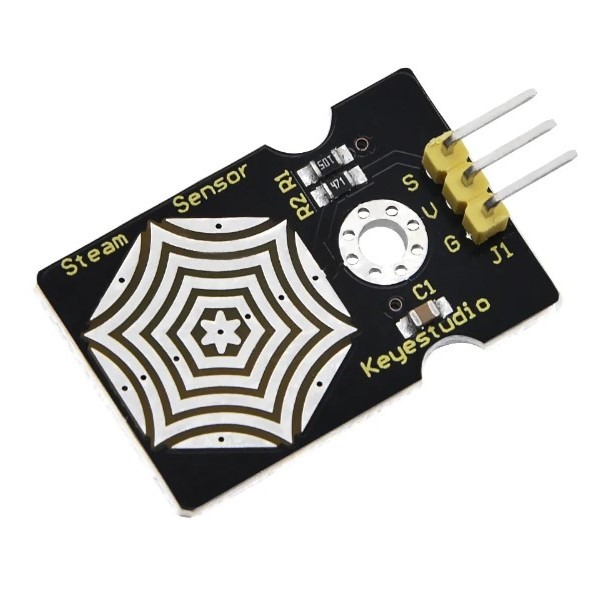

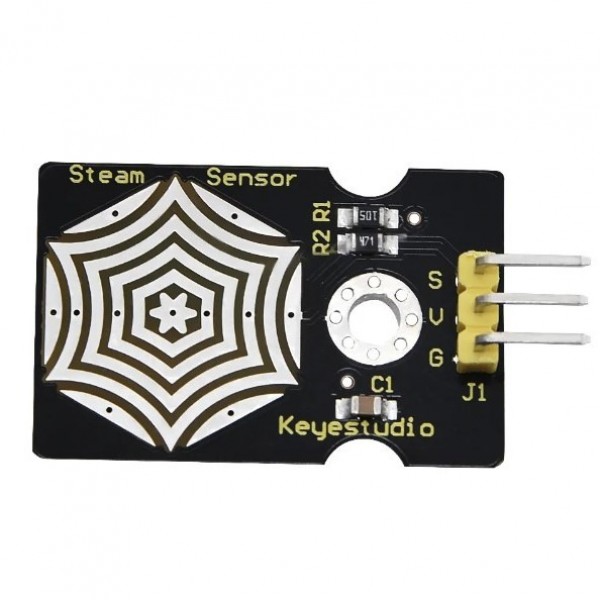

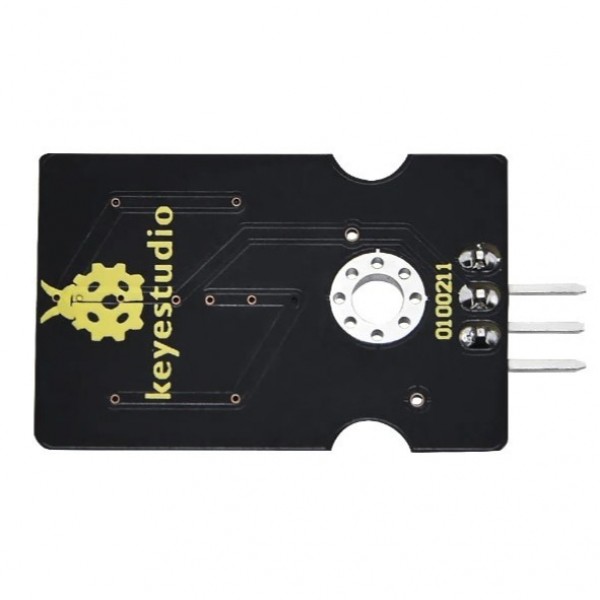

A steam and rain sensor module from Keyestudio. This sensor measures the amount of liquid on the measuring surface to detect steam or water.

Note: The pin headers and components on the PCB are not waterproof.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: Keyestudio Steam and Rain Sensor Module , Keyestudio-KS0203 , Liquid

General
Brand	Keyestudio
Manufacturer model/SKU	KS0203
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	70
Features	Rain sensor
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	30
Dimension Y [mm]	20
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Analog
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Sensor module
