DFRobot Non-contact Optical Turbidity Sensor - UART
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005116
€9.50
Ex Tax: €7.85
Your shopping cart is empty!

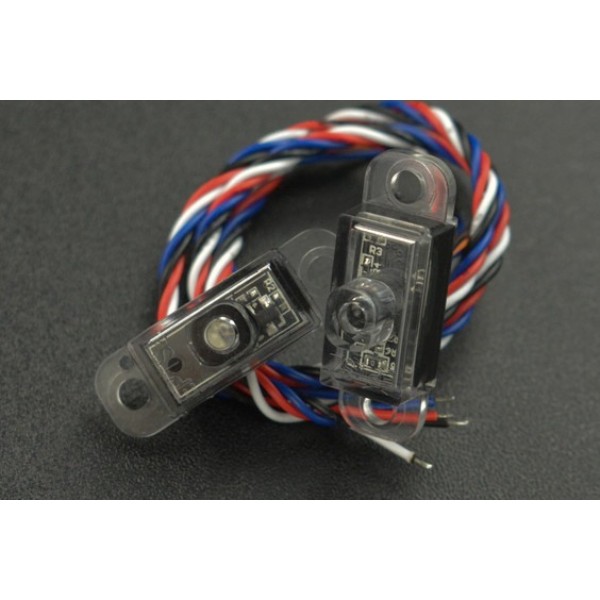

A analog turbidity sensor from DFRobot. This sensor is to be mounted on two sides of a see through container, without making contact with the liquid.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | SEN0554 |
| Minimum operating temperature [°C] | 5 |
| Maximum operating temperature [°C] | 60 |
| Lifespan [h] | 50000 |
| Features | Turbidity sensor |
| General physical appearance | |
| Main color | Black |

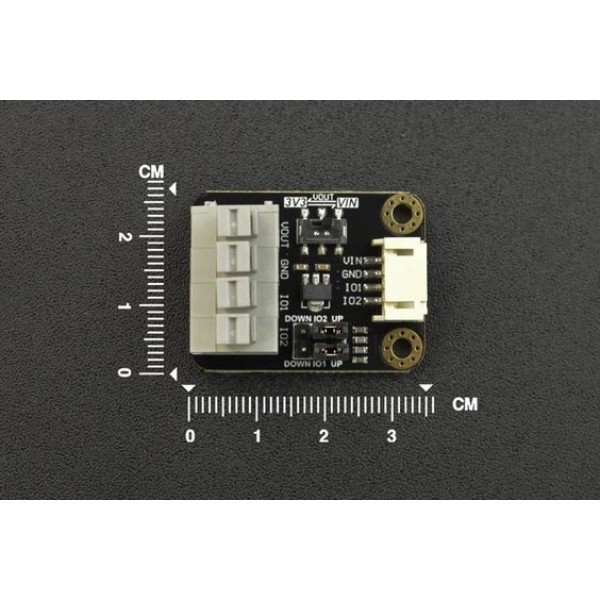

| Dimension X [mm] | 28 (sensor) 35 (adapter board) |
| Dimension Y [mm] | 8.8 (sensor) 27 (adapter board) |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 3.1 (sensor) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 5 |
| IO-pin output voltage [V] | Adjustable 3.3V or 5V |
| Communication | |
| Hardware interface(s) | UART |
| Default baudrate | 9600 |
| Connectors | |
| Power supply connector(s) | JST-PH (compatible) male |
| IO-connector(s) | JST-PH (compatible) male |
| Package contents | |

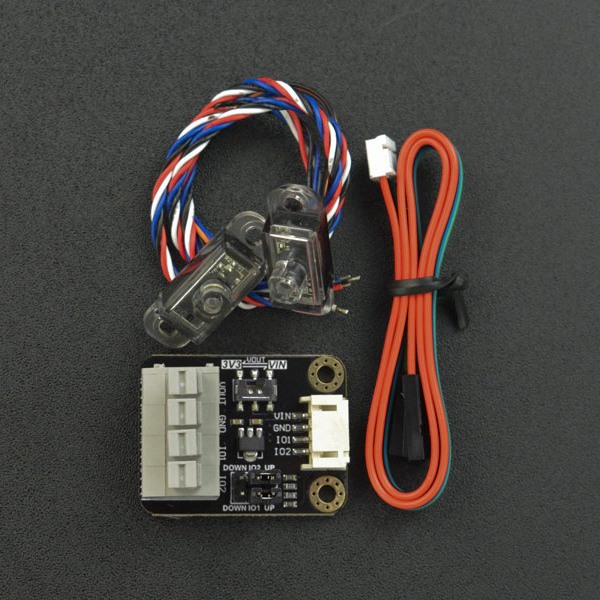

| Package contents | 1x Turbidity Sensor 1x Sensor Adapter (FIT0511) 1x JST-PH to DuPont female cable |
