  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005525
Based on 0 review(s) - Write a review
€28.75
Ex Tax: €23.76
10 or more €28.25
Add to Cart
Add to wishlist

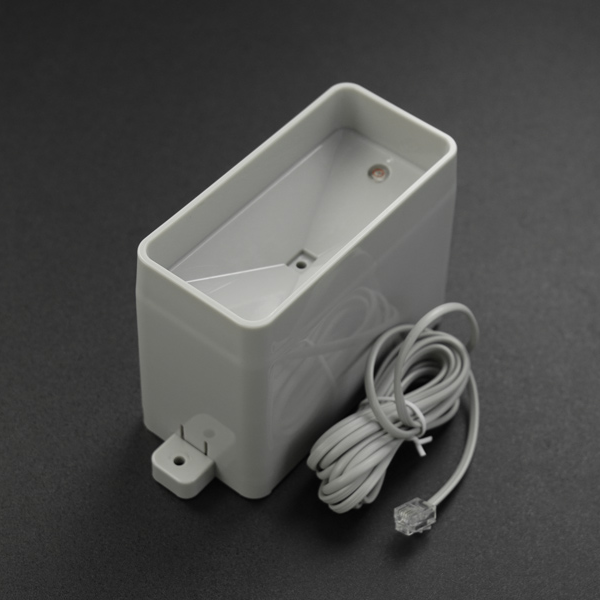

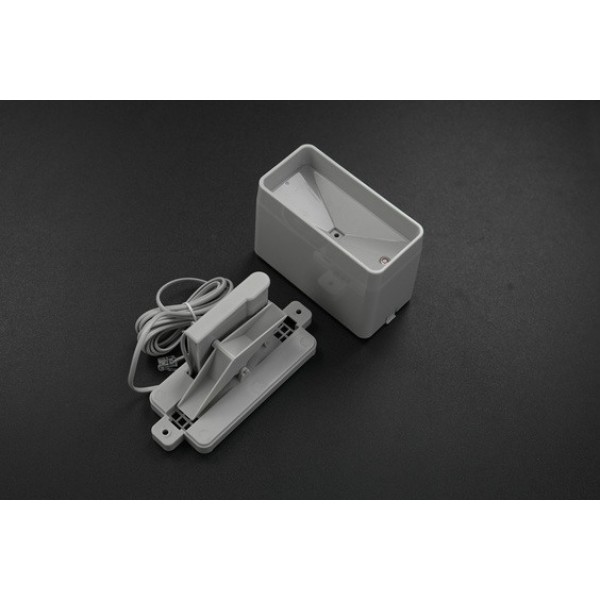

A rain sensor from DFRobot. This sensor uses a small internal tray that collects rainwater until it tilts and sends a pulse to the sensor. By measuring the pulses from the tilting tray, this sensor can accurately determine the amount of rain in mm.

Note: The signal adapter board must be kept dry.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Gravity Tipping Bucket Rainfall Sensor - I2C - UART

This product has 0 review(s) in total.

Tags: Sensors , Liquid , DFRobot Gravity Tipping Bucket Rainfall Sensor - I2C - UART , 005525 , DFRobot , SEN0575 , Rain sensor , I2C , UART

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0575
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Rain sensor
General physical appearance
Main color Gray/silver
Weight [g] 163
(Bucket)
6
(PCB)

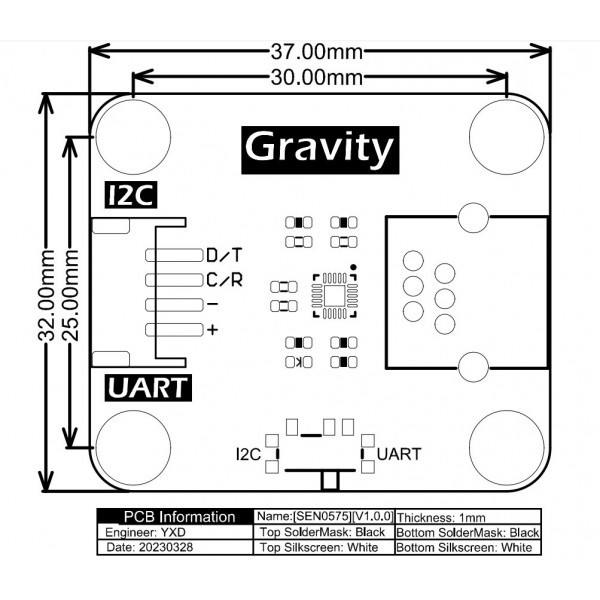

Dimension X [mm] 150
(Bucket)
37
(PCB)
Dimension Y [mm] 93
(Bucket)
32
(PCB)
Dimension Z [mm] 60
(Bucket)
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.1
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
UART
(adjustable with switch)
Default baudrate 9600
Default I2C address 0x1D
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 10
Connectors
Power supply connector(s) JST-PH (compatible) male
IO-connector(s) JST-PH (compatible) male

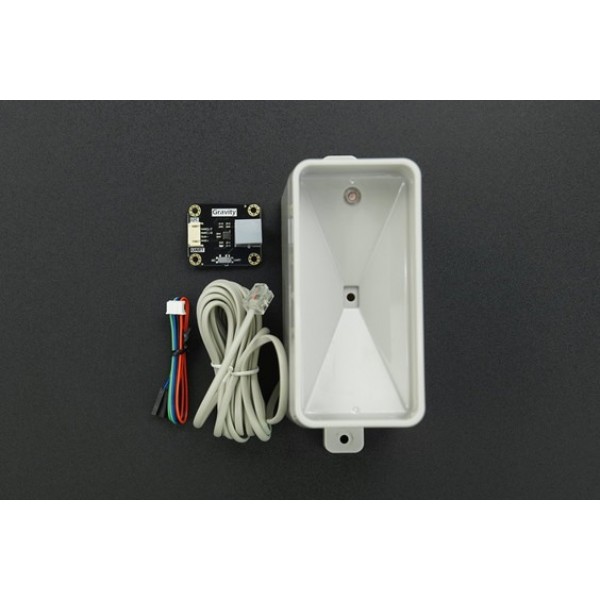

Package contents
Package contents 1x Tipping bucket rainfall sensor
1x Signal adapter board
1x JST-PH to DuPont female cable 4p
