DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor

DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor
DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor
New
DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor
DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor
DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006229
Based on 0 review(s) - Write a review
€9.00
Ex Tax: €7.44
Add to Cart
Add to wishlist

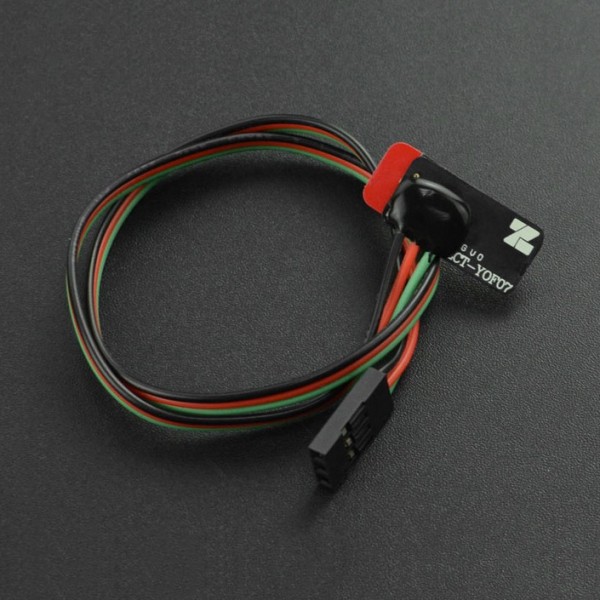

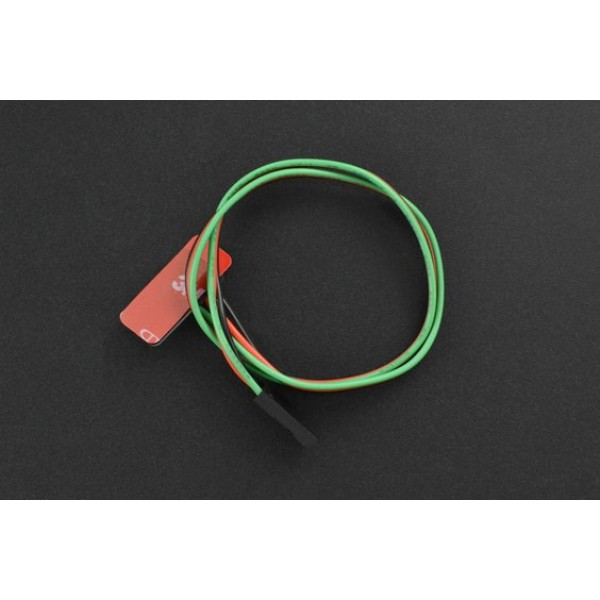

A capacitive liquid level sensor from DFRobot. This sensor can detect liquid through a non-conductive material up to 5mm thick. The sensor will give a low signal when liquid is detected.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor

This product has 0 review(s) in total.

Tags: DFRobot Gravity Non-contact Capacitive Flexible Liquid Level Sensor , DFROBOT-SEN0508 , Liquid

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0508
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 85
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 4
Dimension X [mm] 20
Dimension Y [mm] 10
Water and dust protection IP62
Mounting options Adhesive layer
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 2.5
Maximum supply voltage [V DC] 5.5
Indication average current consumption [mA] 0.29
(@5V)
0.235
(@3V)
IO-pin output voltage [V] Equal to pull-up resistor voltage
Communication
Hardware interface(s) Digital (NPN)
Built-in pull-up resistor(s) [kΩ] None
Object detection sensor
Type Capacitive
Detection type Threshold
Adjustable detection distance No
Adjustable sensitivity No
Maximum measuring range [cm] 0.5
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 0.3
Package contents
Package contents 1x Liquid level sensor
