Name: DFRobot Gravity Analog Water Pressure Sensor - DFROBOT-SEN0257
Brand: DFRobot
SKU: 006164
Price: 21 EUR
Availability: InStock

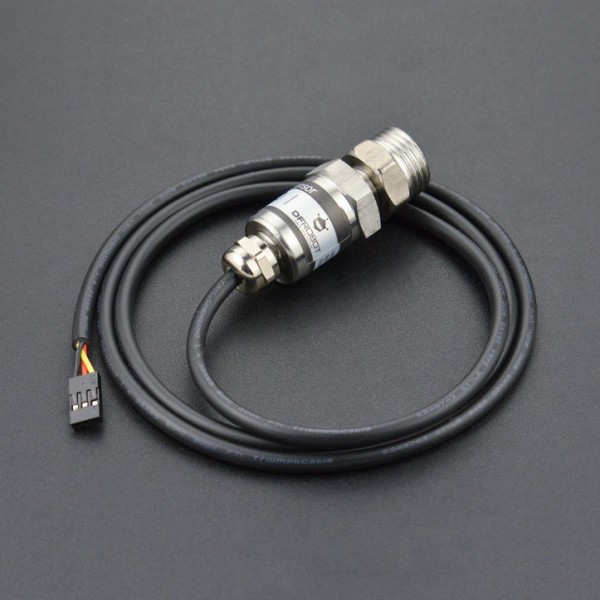

DFRobot Gravity Analog Water Pressure Sensor

Availability: Directly available from warehouse in Eindhoven
SKU: 006164

Based on 0 review(s) - Write a review

€21.00

Ex Tax: €17.36

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

This water pressure sensor from DFRobot can easily be used in combination with a microcontroller.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity Analog Water Pressure Sensor

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity Analog Water Pressure Sensor , DFROBOT-SEN0257 , Liquid

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0257
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	85
Features	Pressure sensor (gas/liquid)
General physical appearance
Main color	Gray/silver
Weight [g]	90 (without adapter) 112 (with G1/2 adapter)
Dimension X [mm]	25
Dimension Y [mm]	25
Dimension Z [mm]	52 (without adapter)
Water and dust protection	IP68
Mounting options	Screw thread
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
IO-pin output voltage [V]	4.5 (@1.6MPa) 0.5 (@0Pa)
Communication
Hardware interface(s)	Analog
Pressure sensor
Suitable medium	Air Water
Minimum measuring range [hPa]	0
Maximum measuring range [hPa]	16000
Accuracy [%]	1
Fluid connector
Coupling type(s)	G1/2" internal thread G1/4" external thread
Suitable liquids/gasses	Clean water Air
Maximum pressure [bar]	20
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Wire/cable length [m]	1
Pinout
Power supply pin	Red wire
Ground/min	Black wire
Data	Yellow wire
Package contents
Package contents	1x Analog Water Pressure Sensor 1x G1/4 to G1/2 adapter
