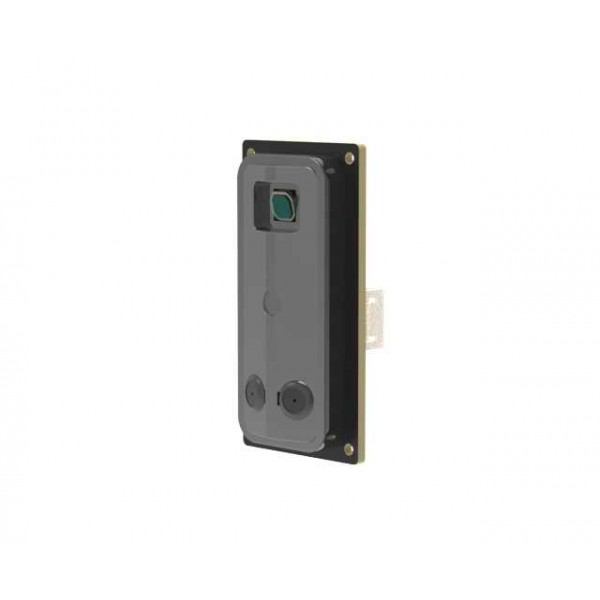

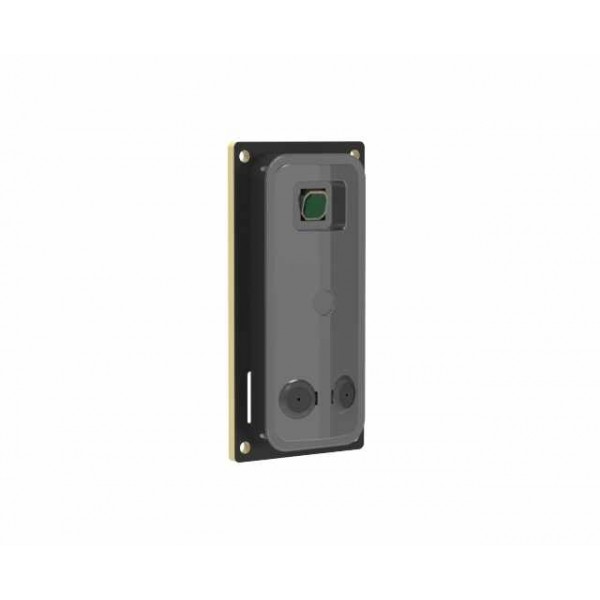

YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm

YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm
YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm
YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm
YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm
YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006590
Based on 0 review(s) - Write a review
€50.25
Ex Tax: €41.53
Add to Cart
Add to wishlist

A LiDAR sensor module from YDLIDAR. This sensor uses a laser to measure distance and position of objects in a FOV of 85 degrees between 70-1000mm. The sensor can be used via UART, or via USB with the supplied USB to serial adapter board.

Via the link below, a tool and multiple development documents are available to read the sensor via USB on a Windows device.

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm

This product has 0 review(s) in total.

Tags: Sensors , Distance , YDLIDAR GS5 - Linear Array Solid State LiDAR Sensor - 70-1000mm , 006590 , YDLIDAR , GS5 , Object detection sensor , UART , USB CDC

Specifications

General
Brand YDLIDAR
Manufacturer model/SKU GS5
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 50
Lifespan [h] 10000
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 12
(sensor only)
Dimension X [mm] 49
Dimension Y [mm] 25
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 1.8
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.2
(via JST-ZH)
5
(via USB)
Maximum supply voltage [V DC] 3.4
(via JST-ZH)
5
(via USB)
Minimum IO-pin input voltage [V] 2.4
Maximum IO-pin input voltage [V] 3.4
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) UART
USB CDC
Default baudrate 921600
USB to serial converter CP2102
Object detection sensor
Type LiDAR
Detection type Distance
Position
Minimum measuring range [cm] 7
Maximum measuring range [cm] 100
Smallest resolution [mm] 1
Accuracy [%] 3
(70-300mm)
5
(300-600mm)
8
(600-1000mm)
Maximum detection angle [°] 85
Smallest resolution [°] 0.54
Connectors
Power supply connector(s) USB-C female
Micro USB female
JST-ZH (compatible) male
IO-connector(s) USB-C female
JST-ZH (compatible) male
Package contents
Package contents 1x LiDAR module
1x Adapter board
1x 4p connector cable
1x USB-A to USB-C cable
