Name: YDLIDAR GS2 - Linear Array Solid State LiDAR Sensor - 25-300mm - YDLIDAR-GS2
SKU: 005108
Price: 37.25 EUR
Availability: InStock

YDLIDAR GS2 - Linear Array Solid State LiDAR Sensor - 25-300mm

Availability: Directly available from warehouse in Eindhoven
SKU: 005108

Based on 0 review(s) - Write a review

€37.25

Ex Tax: €30.79

10 or more €36.75

20 or more €36.25

50 or more €35.75

100 or more €35.25

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

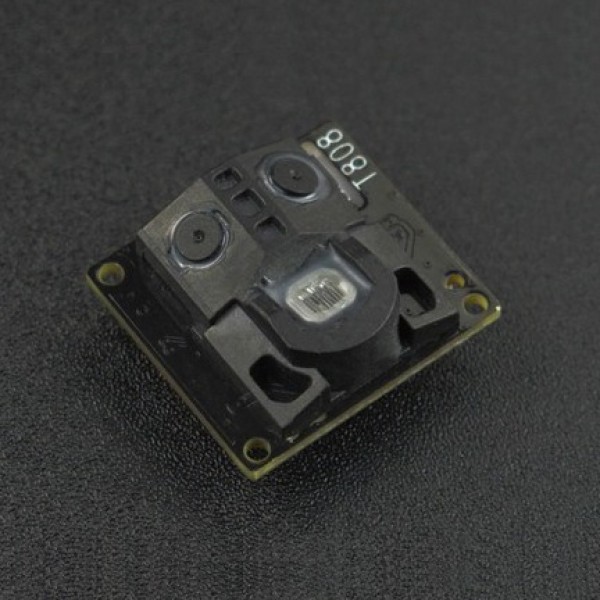

A LiDAR sensor module from YDLIDAR. This sensor uses a laser to measure distance and position of objects (as small as 3mm) in a FOV of 100 degrees between 25-300mm. The sensor can be used via UART, or via USB with the supplied USB to serial adapter board.

Via the link below, a tool and multiple development documents are available to read the sensor via USB on a Windows device.

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over YDLIDAR GS2 - Linear Array Solid State LiDAR Sensor - 25-300mm

Average Rating:

This product has 0 review(s) in total.

More documents: 005108_YDLIDAR GS2 documents.zip

Tags: YDLIDAR GS2 - Linear Array Solid State LiDAR Sensor - 25-300mm , YDLIDAR-GS2 , Distance

Specifications

General
Brand	YDLIDAR
Manufacturer model/SKU	GS2
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	40
Features	Object detection sensor
General physical appearance
Main color	Black
Weight [g]	13 (complete set) 5 (LiDAR only)

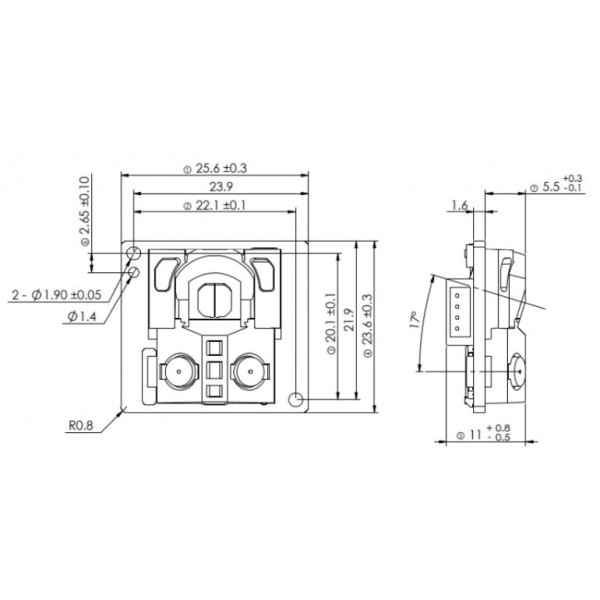

Dimension X [mm]	26 (LiDAR)
Dimension Y [mm]	24 (LiDAR)
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	1.9
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.2 (via JST-ZH) 5 (via USB)
Maximum supply voltage [V DC]	3.4 (via JST-ZH) 5 (via USB)
Minimum IO-pin input voltage [V]	2.4
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART USB CDC
Default baudrate	921600
USB to serial converter	CP2102
Object detection sensor
Type	LiDAR
Detection type	Distance Position
Minimum measuring range [cm]	2.5
Maximum measuring range [cm]	30
Smallest resolution [mm]	1
Accuracy [±mm]	3 (0-100mm)
Accuracy [%]	3 (100-200mm) 8 (200-300mm)
Maximum detection angle [°]	100
Smallest resolution [°]	0.6
Accuracy [±°]	3
Connectors
Power supply connector(s)	USB-C female Micro USB female JST-ZH (compatible) male
IO-connector(s)	USB-C female JST-ZH (compatible) male
Package contents

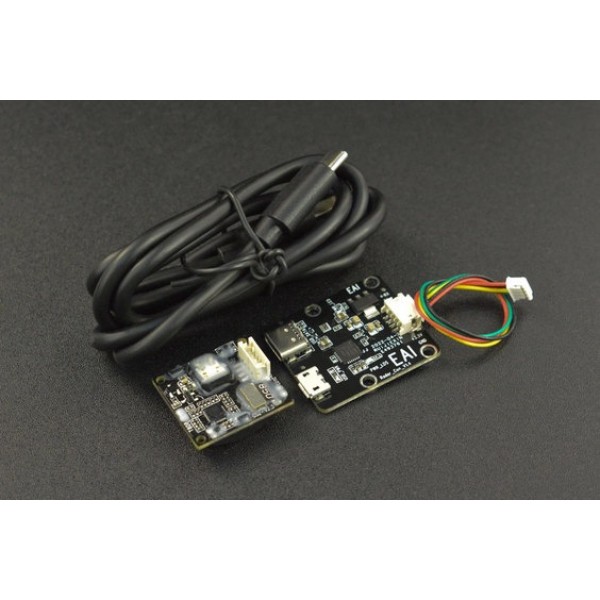

Package contents	1x LiDAR module 1x Adapter board 1x 4p connector cable 1x USB-A to USB-C cable
