Waterproof Ultrasonic Sensor - RCWL-1655

Availability: Directly available from warehouse in Eindhoven
SKU: 005698

Based on 0 review(s) - Write a review

€5.00

Ex Tax: €4.13

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

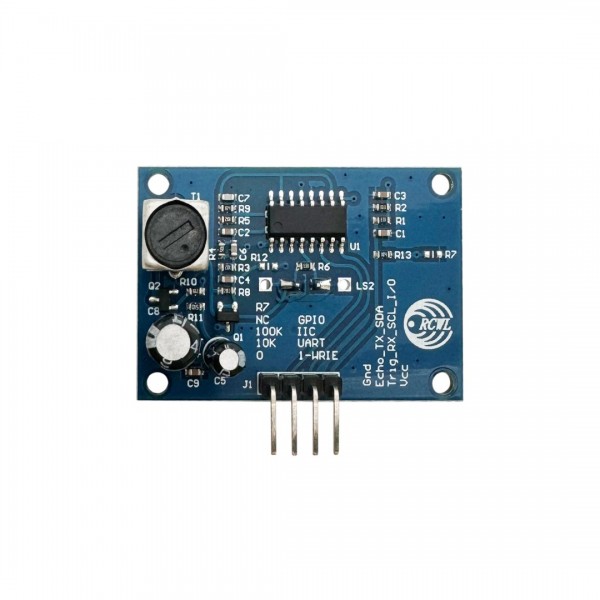

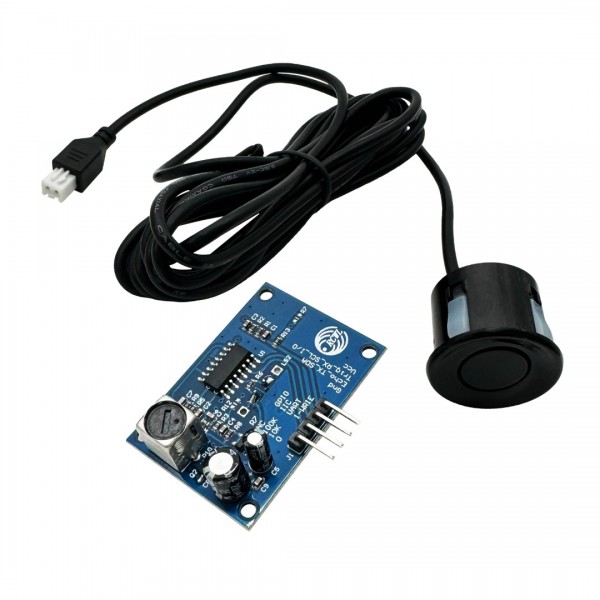

The RCWL-1655 is a waterproof ultrasonic ranging module with an integrated transceiver and receiver. The sensor (transmitter/receiver (black part)) is waterproof from the front.

See the following page for a tutorial: Tutorial

Please login or register to review

Reviews Over Waterproof Ultrasonic Sensor - RCWL-1655

Average Rating:

This product has 0 review(s) in total.

Tags: Waterproof Ultrasonic Sensor - RCWL-1655 , RCWL-1655 , Distance

Specifications

General
Brand	No brand
Manufacturer model/SKU	RCWL-1655
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	60
Features	Object detection sensor
General physical appearance
Main color	Black
Weight [g]	38 (sensor) 6 (PCB)
Dimension X [mm]	25 (sensor) 41 (PCB)
Dimension Y [mm]	25 (sensor) 29 (PCB)
Dimension Z [mm]	19 (sensor)
Water and dust protection	Splash-proof (front of sensor only)
Mounting options	Mounting hole(s) Clamp
Diameter mounting hole(s) [mm]	2.6
Recommended mounting dimensions [mm]	ø22 (sensor)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2.8
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	2.8
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Digital
Object detection sensor
Type	Ultrasonic
Detection type	Distance
Adjustable detection distance	No
Minimum measuring range [cm]	19
Maximum measuring range [cm]	400
Smallest resolution [mm]	1 (theoretical, depending on microcontroller timing)
Accuracy [%]	2
Maximum detection angle [°]	22.5 (±2.5)
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Wire/cable
Wire/cable length [m]	2.5
Package contents
Package contents	1x Ultrasonic sensor 1x Adapter PCB
