Name: Ultrasonic Sensor - RCWL-1633 - with WS2812 RGB LEDs - RCWL-1633
SKU: 005958
Price: 5 EUR
Availability: InStock

Ultrasonic Sensor - RCWL-1633 - with WS2812 RGB LEDs

Availability: Directly available from warehouse in Eindhoven
SKU: 005958

Based on 0 review(s) - Write a review

€5.00

Ex Tax: €4.13

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

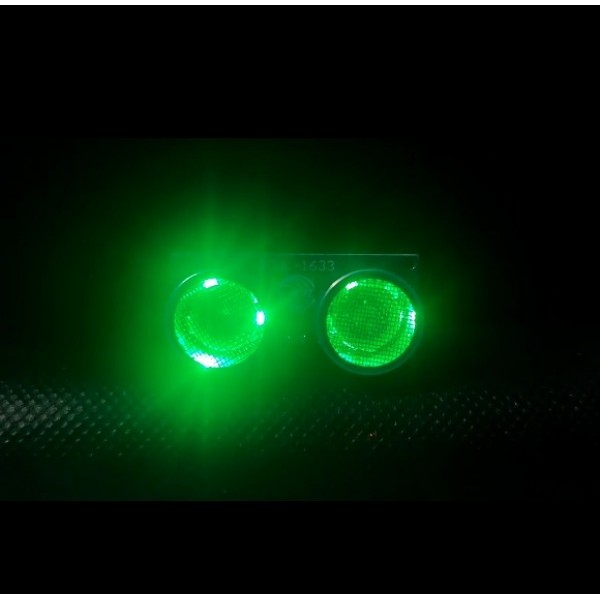

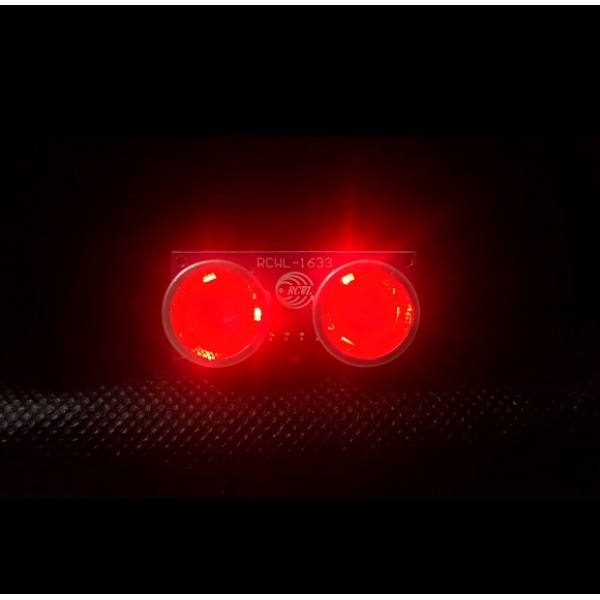

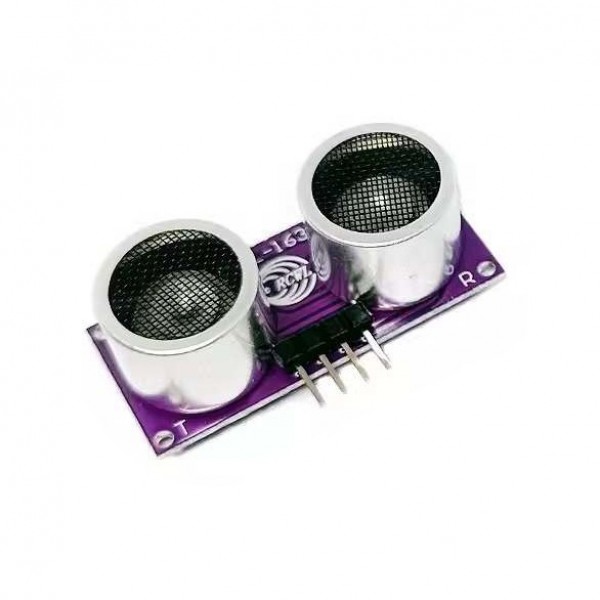

With this sensor a distance can easily be measured. Software-wise the sensor is practically compatible with the HC-SR04, however it works with a single pin for both the trigger and the echo. In addition, the receiver and transmitter can be colored by means of 6 digital LEDs.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Ultrasonic Sensor - RCWL-1633 - with WS2812 RGB LEDs

Average Rating:

This product has 0 review(s) in total.

Arduino IDE example: 005958_005958__RCWL-1633_test.ino

Tags: Ultrasonic Sensor - RCWL-1633 - with WS2812 RGB LEDs , RCWL-1633 , Distance

Specifications

General
Brand	No brand
Manufacturer model/SKU	RCWL-1633
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	80
Features	Object detection sensor Digital LED(s)
General physical appearance
Main color	Purple
Weight [g]	7
Dimension X [mm]	40
Dimension Y [mm]	18
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	1.6
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	4.5
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Digital
LED
LED (driver) chip	WS2812B (compatible)
LED color	RGB
Number of LEDs	6
Object detection sensor
Type	Ultrasonic
Detection type	Distance
Adjustable detection distance	No
Minimum measuring range [cm]	2
Maximum measuring range [cm]	400
Smallest resolution [mm]	1 (theoretical, depending on microcontroller timing)
Accuracy [±mm]	10
Accuracy [%]	2
Maximum detection angle [°]	17.5 (±2.5)
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Ultrasonic sensor
