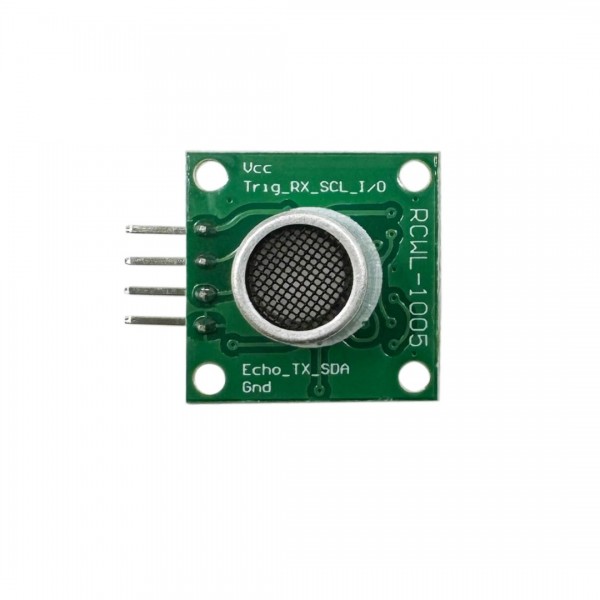

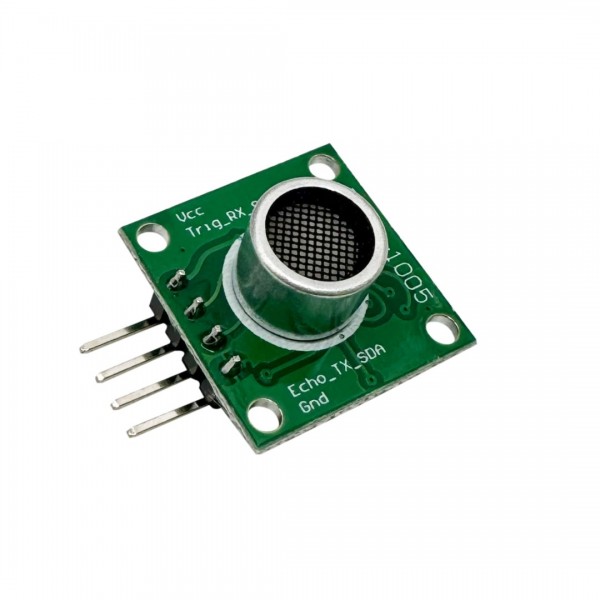

Ultrasonic Sensor - RCWL-1005

Ultrasonic Sensor - RCWL-1005
Ultrasonic Sensor - RCWL-1005
Ultrasonic Sensor - RCWL-1005
Ultrasonic Sensor - RCWL-1005
Ultrasonic Sensor - RCWL-1005
Ultrasonic Sensor - RCWL-1005
Ultrasonic Sensor - RCWL-1005
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005671
Based on 0 review(s) - Write a review
€3.00
Ex Tax: €2.48
Add to Cart
Add to wishlist

With this sensor a distance can be measured easily. The sensor is software compatible with the HC-SR04.

See the following page for a tutorial: Tutorial

Please login or register to review

Reviews Over Ultrasonic Sensor - RCWL-1005

This product has 0 review(s) in total.

Tags: Sensors , Distance , Ultrasonic Sensor - RCWL-1005 , 005671 , No brand , RCWL-1005 , Object detection sensor , Digital

Specifications

General
Brand No brand
Manufacturer model/SKU RCWL-1005
Minimum operating temperature [°C] -10
Maximum operating temperature [°C] 60
Features Object detection sensor
General physical appearance
Main color Green
Weight [g] 3
Dimension X [mm] 20
Dimension Y [mm] 20
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 2.8
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 2.8
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) Digital
Object detection sensor
Type Ultrasonic
Detection type Distance
Adjustable detection distance No
Minimum measuring range [cm] 25
Maximum measuring range [cm] 450
Smallest resolution [mm] 1
(theoretical, depending on microcontroller timing)
Accuracy [%] 2
Maximum detection angle [°] 25
(±5)
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x Ultrasonic sensor
