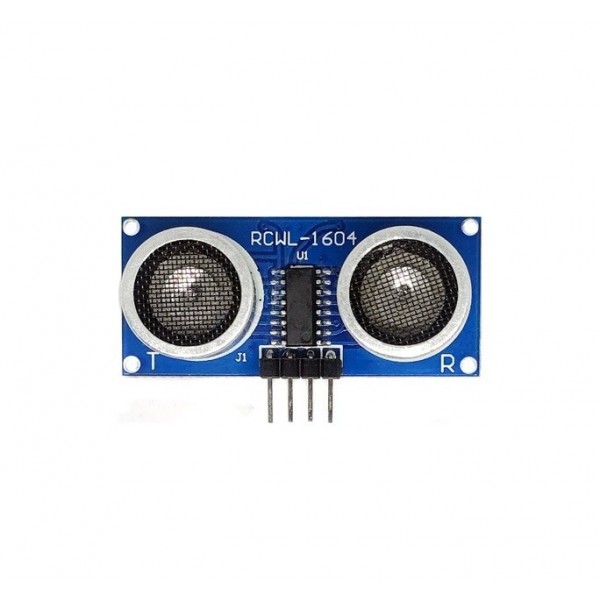

Ultrasonic Distance Sensor - RCWL-1604

2-4 Weeks

Ultrasonic Distance Sensor - RCWL-1604

Based on 0 review(s) - Write a review

€2.75

Ex Tax: €2.27

Qty

Add to Cart

Add to wishlist

Not in stock

With this sensor a distance can be measured easily. The sensor is compatible with the HC-SR04.

See the following page for a tutorial: Tutorial

Please login or register to review

This product has 0 review(s) in total.

Tags: Ultrasonic Distance Sensor - RCWL-1604 , RCWL-1604 , Distance

General
Brand	No brand
Manufacturer model/SKU	RCWL-1604
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	60
Features	Object detection sensor
General physical appearance
Main color	Blue
Weight [g]	7
Dimension X [mm]	45
Dimension Y [mm]	20
Mounting options	Pin headers Mounting hole(s)
Diameter mounting hole(s) [mm]	1.8
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2.8
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	2.8
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	Digital
Object detection sensor
Type	Ultrasonic
Detection type	Distance
Adjustable detection distance	No
Minimum measuring range [cm]	2
Maximum measuring range [cm]	400
Smallest resolution [mm]	1 (theoretical, depending on microcontroller timing)
Accuracy [%]	2
Maximum detection angle [°]	17.5 (±2.5)
Connectors
Power supply connector(s)	Pin header male (2.54mm)
IO-connector(s)	Pin header male (2.54mm)
Package contents
Package contents	1x Ultrasonic sensor
