  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002646
Based on 1 review(s) - Write a review
€6.00
Ex Tax: €4.96
Add to Cart
Add to wishlist

With this very small TOF10120 Time-of-Flight sensor you can easily measure a distance using the reflection of light.

Specifications:

  • Voltage (power supply and signal): 3.3-5V DC
  • Detection distance: 100-1800mm
  • Wavelength: 940nm
  • 2 Mounting holes of 2mm

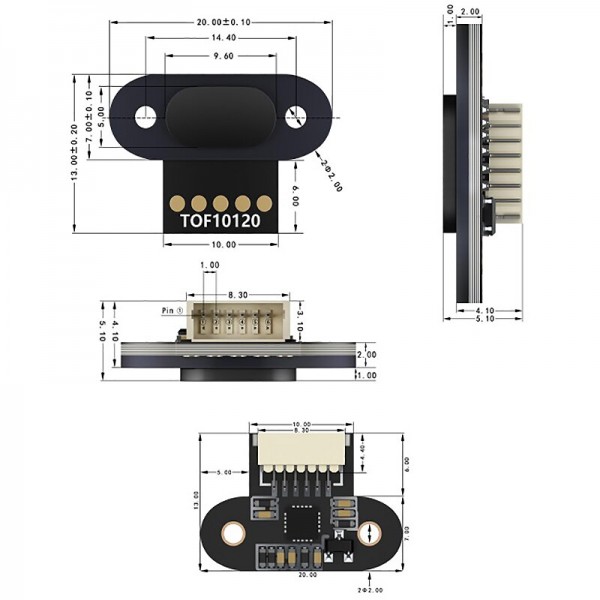

  • Dimensions: See images

Pinout:

  • 1 GND: Ground
  • 2 VDD: 3.3-5V DC
  • 3 RXD: TTL input
  • 4 TXD: TTL output
  • 5 SDA: I2C data signal
  • 6 SCL: I2C clock signal

See the next page for a manual in combination with Arduino: TOF 10120 Laser Rangefinder to measure distance with arduino
