PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm

PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm
PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm
PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm
PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm
PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007598
Based on 0 review(s) - Write a review
€16.25
Ex Tax: €13.43
Add to Cart
Add to wishlist

An underwater distance sensor from PONO that utilizes Ultrasonic Time-of-Flight (ToF) technology to accurately measure distances up to 50cm through water, communicating via a simple UART interface.

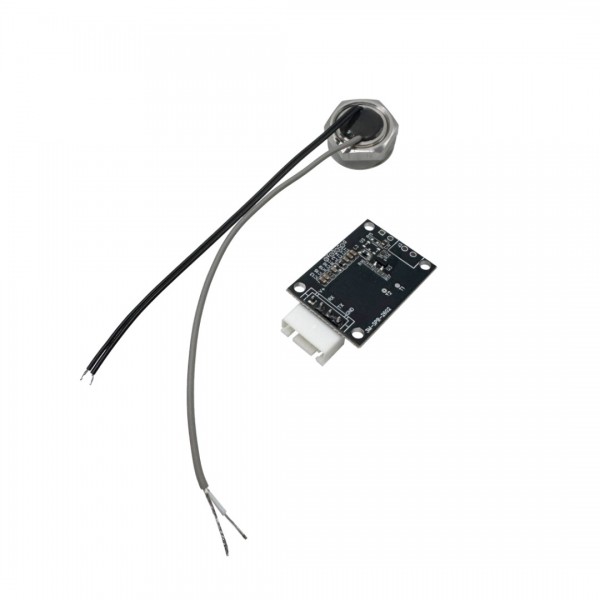

The probe must be soldered to the circuit board as follows:

  • White wire (in the gray wire): S+ (J4)
  • Silver wire (in the gray wire): S- (J4)
  • Black wires (polarity doesn't matter): Temp pins (J3)

To connect the module via the connector, the following cable can be used: JST-XH Female to DuPont Female Compatible Cable - 4p (note: the cable color does not logically correspond to the pinout)

See the following page for more information: GitHub

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm

This product has 0 review(s) in total.

Tags: Sensors , Distance , PONO US500-HX Underwater Ultrasonic Distance Sensor - UART - 50cm , 007598 , PONO , US500-HX , Object detection sensor , UART

Specifications

General
Brand PONO
Manufacturer model/SKU US500-HX
Minimum operating temperature [°C] 0
(probe)
-10
(PCB)
Maximum operating temperature [°C] 100
(probe)
70
(PCB)
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 12
(PCB + probe)
Dimension X [mm] 30
(PCB)
18
(probe)
Dimension Y [mm] 21
(PCB)
18
(probe)
Material Stainless steel
(probe)
Water and dust protection IP67
(probe)
Mounting options Screw thread
Mounting hole(s)
Diameter mounting hole(s) [mm] 2.5
Maximum mounting thickness [mm] 2.0
(probe)
Recommended mounting dimensions [mm] ø14
(probe)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 12
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) UART
Default baudrate 9600
Object detection sensor
Type Ultrasonic
Detection type Distance
Minimum measuring range [cm] 5
Maximum measuring range [cm] 50
Smallest resolution [mm] 1
Accuracy [±mm] 2
Maximum detection angle [°] 10
Connectors
Power supply connector(s) JST-XH (compatible) male
IO-connector(s) JST-XH (compatible) male
Package contents
Package contents 1x Sensor module
1x Ultrasonic sensor
