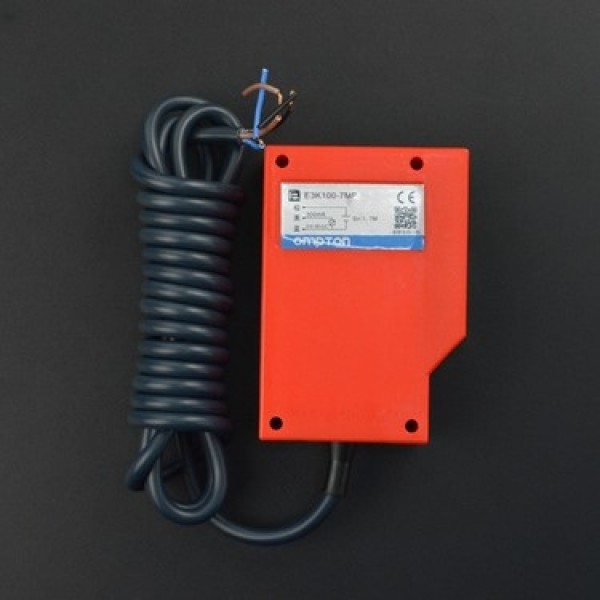

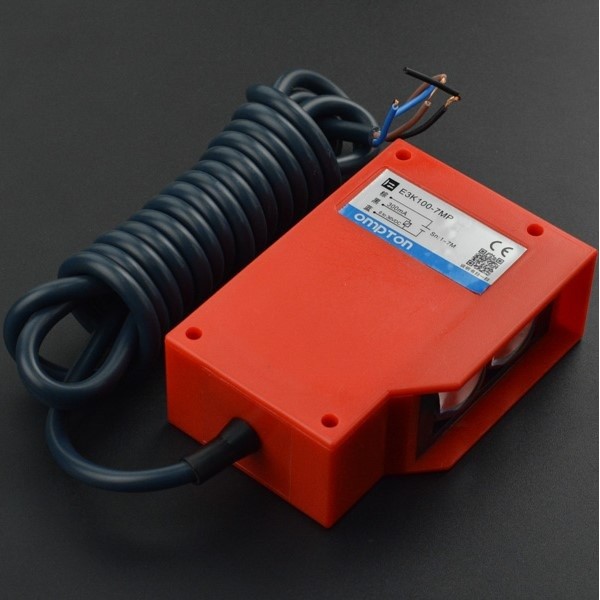

Diffuse Photoelectric Reflection Sensor - 0-7m

This is a photoelectric sensor switch that can detect objects. The maximum detection distance can be set with the built-in potentiometer. As soon as an object is within the detection distance, the power supply wire and the signal/output wire will be connected. In addition, an LED will also light up.

Specifications:

• Supply voltage: 6 - 36V DC
• Signal voltage: 6 - 36V DC (same as supply voltage)
• Maximum signal current (source): 300mA
• Detection distance: 0 - 7m
• Response time: 2.5ms
• Output type: PNP NO (normally open)
• Internal pull-down resistance: 10kΩ
• Cable length: 2m

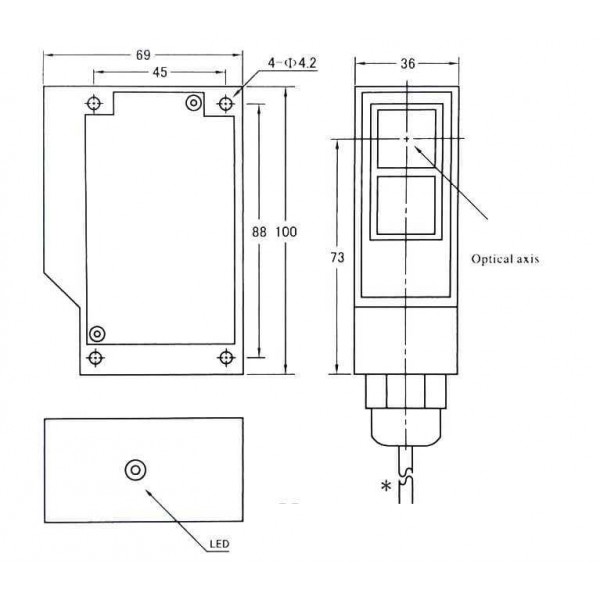

• Dimensions (without cable): 100 x 69 x 37mm

Pinout:

• Brown: Supply voltage/+
• Blue: GND/ground/-
• Black: Signal/Output

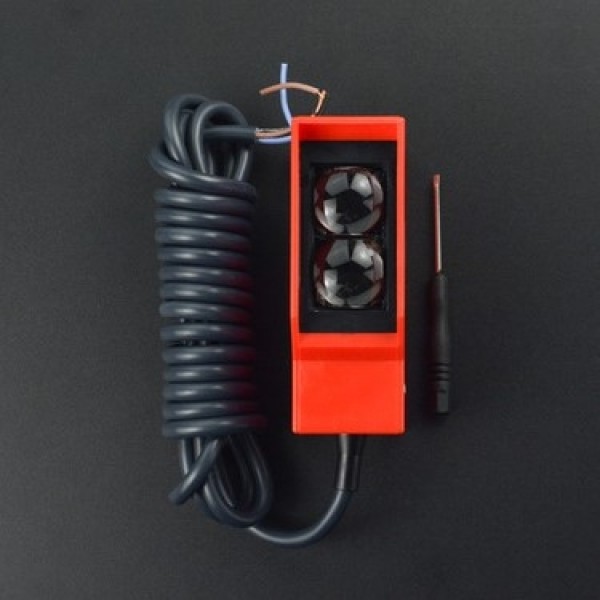

Package contents:

• 1x Diffuse Photoelectric Reflection Sensor
• 1x Screwdriver
