Name: DFRobot IP68 Underwater Ultrasonic Distance Sensor - UART - 6m - DFROBOT-SEN0599
Brand: DFRobot
SKU: 005932
Price: 35 EUR
Availability: InStock

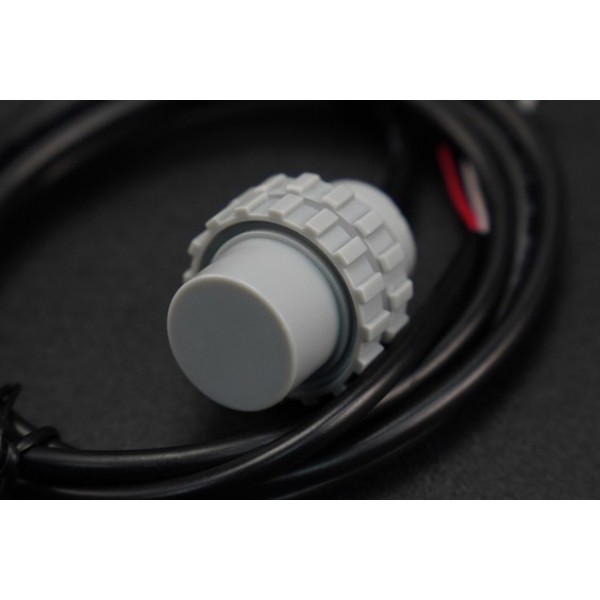

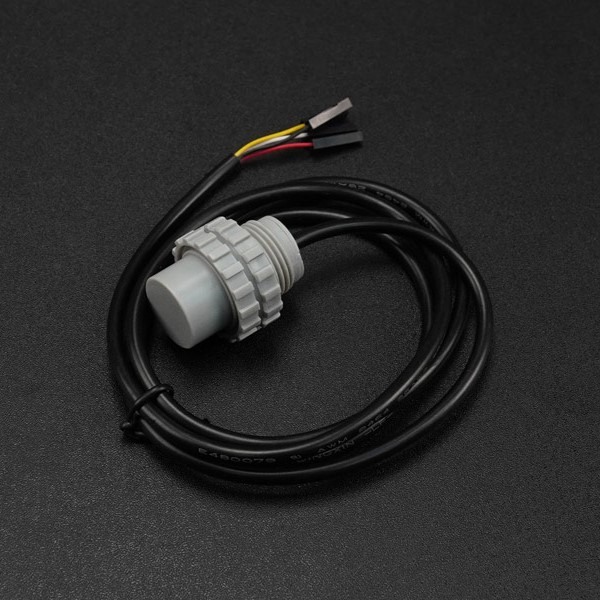

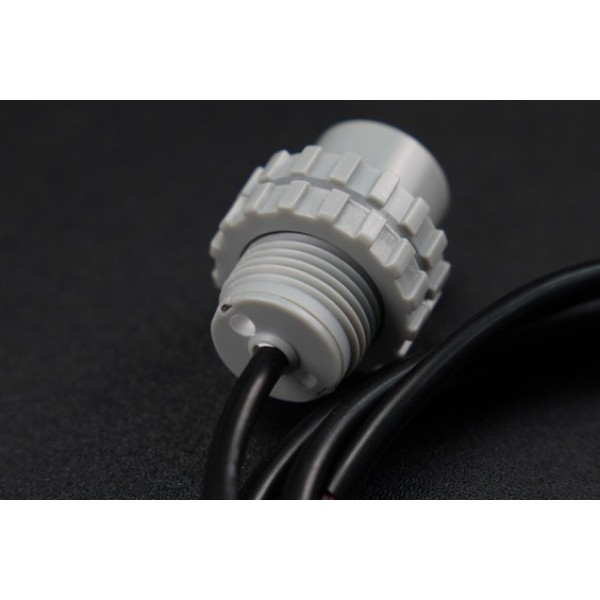

DFRobot IP68 Underwater Ultrasonic Distance Sensor - UART - 6m

Availability: Directly available from warehouse in Eindhoven
SKU: 005932

Based on 0 review(s) - Write a review

€35.00

Ex Tax: €28.93

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

Description
Reviews

A waterproof ultrasonic sensor for measuring distances up to 6m.

Note: This sensor can only be used underwater.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot IP68 Underwater Ultrasonic Distance Sensor - UART - 6m

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot IP68 Underwater Ultrasonic Distance Sensor - UART - 6m , DFROBOT-SEN0599 , Distance

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-15
Maximum operating temperature [°C]	50
Features	Object detection sensor

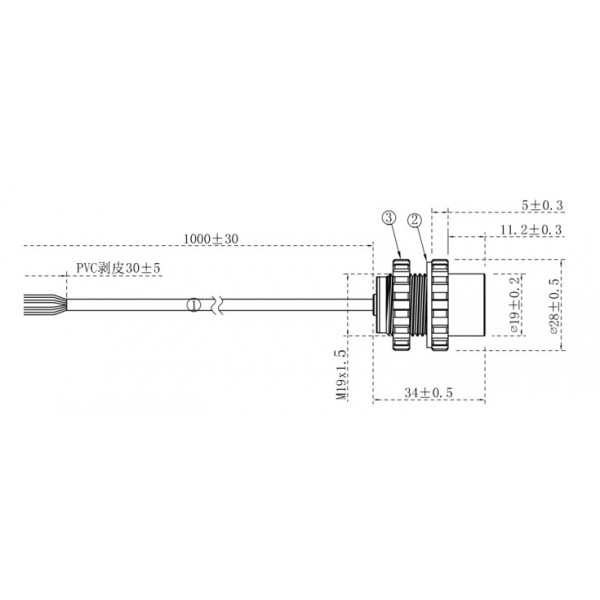

General physical appearance
Main color	Gray/silver
Weight [g]	42
Dimension X [mm]	28
Dimension Y [mm]	28
Dimension Z [mm]	34
Water and dust protection	IP68
Maximum depth [m]	10
Mounting options	Screw thread
Maximum mounting thickness [mm]	9.5
Recommended mounting dimensions [mm]	ø19
Thread size	M19x1.5
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	24
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	UART
Default baudrate	115200
Object detection sensor
Type	Ultrasonic
Detection type	Distance
Adjustable detection distance	No
Adjustable sensitivity	No
Minimum measuring range [cm]	5
Maximum measuring range [cm]	600
Smallest resolution [mm]	1
Maximum resolution [bit]	16
Accuracy [±mm]	10 (2-6m) 5 (0.05-2m)
Accuracy [%]	1 (2-6m) 0.5 (0.05-2m)
Maximum detection angle [°]	16
Connectors
Power supply connector(s)	Pin header female (2.54mm)
IO-connector(s)	Pin header female (2.54mm)
Wire/cable
Outside diameter [mm]	4
Wire/cable length [m]	1
Package contents
Package contents	1x Underwater ultrasonic distance sensor
