Name: DFRobot Gravity VL53L0X Time-of-Flight ToF Distance Sensor - I2C - DFROBOT-SEN0245
Brand: DFRobot
SKU: 006230
Price: 13 EUR
Availability: InStock

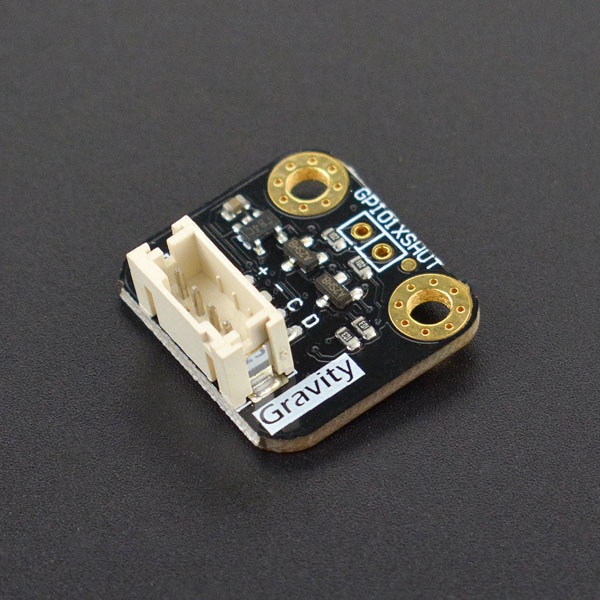

DFRobot Gravity VL53L0X Time-of-Flight ToF Distance Sensor - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 006230

Based on 0 review(s) - Write a review

€13.00

Ex Tax: €10.74

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

With this small VL53L0X Time-of-Flight sensor you can easily measure a distance.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity VL53L0X Time-of-Flight ToF Distance Sensor - I2C

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Gravity VL53L0X Time-of-Flight ToF Distance Sensor - I2C , DFROBOT-SEN0245 , Distance

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0245
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	70
Features	Object detection sensor
General physical appearance
Main color	Black
Weight [g]	2
Dimension X [mm]	22
Dimension Y [mm]	20
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x52
Adjustable I2C address	Yes (via I2C)
Built-in pull-up resistor(s) [kΩ]	10
Object detection sensor
Sensor (chip)	VL53L0X
Type	ToF
Detection type	Distance
Minimum measuring range [cm]	3
Maximum measuring range [cm]	200
Smallest resolution [mm]	1
Accuracy [%]	3 (high accuracy mode)
Maximum detection angle [°]	25

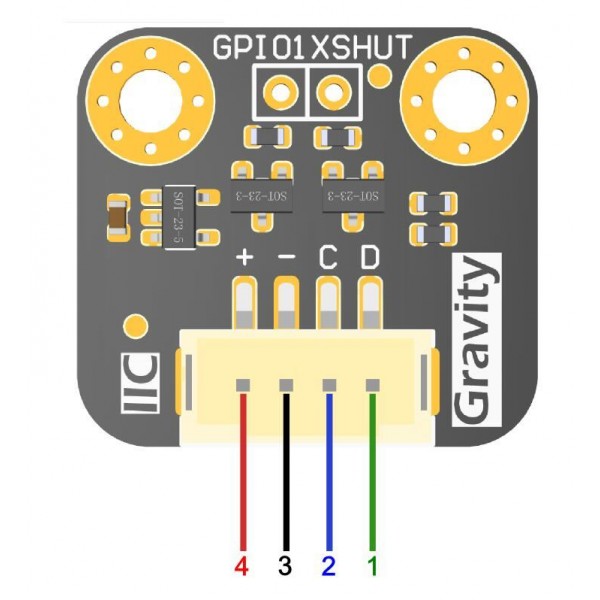

Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x ToF sensor module 1x JST-PH female to pinheader female cable
