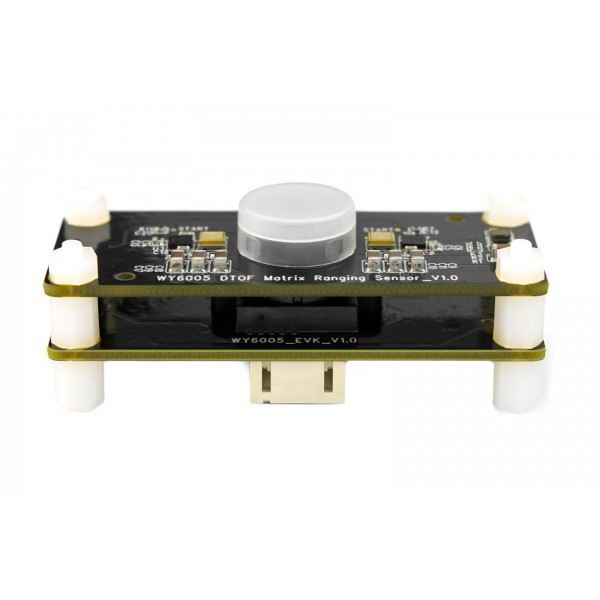

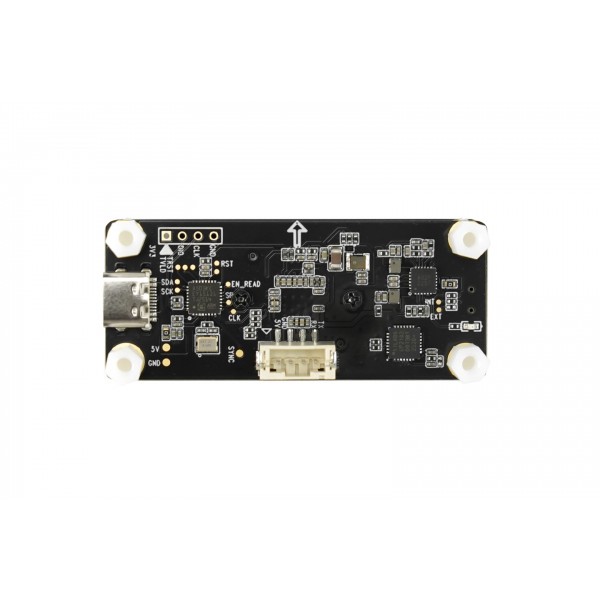

DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module

DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007769
Based on 0 review(s) - Write a review
€45.00
Ex Tax: €37.19
Add to Cart
Add to wishlist

A distance sensor from DFRobot that uses dToF (direct Time of Flight) to measure a relatively long distance.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module

This product has 0 review(s) in total.

Tags: Sensors , Distance , DFRobot Gravity 64x8 Matrix dToF LiDAR Sensor Module , 007769 , WANYEE , WY6005 (WANYEE) SEN0682 (DFRobot) , Object detection sensor , UART , USB

Specifications

General
Brand WANYEE
DFRobot
Manufacturer model/SKU WY6005 (WANYEE)
SEN0682 (DFRobot)
Features Object detection sensor
General physical appearance
Main color Black
Weight [g] 20
Dimension X [mm] 62
Dimension Y [mm] 26
Dimension Z [mm] 22
Mounting options Screw thread
Mounting hole(s)
Diameter mounting hole(s) [mm] 3
Thread size M3
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) USB
UART
Default baudrate 921600
Object detection sensor
Type LiDAR
Detection type Distance
Position
Minimum measuring range [cm] 10
Maximum measuring range [cm] 500
Smallest resolution [mm] 14
Accuracy [±mm] 30
(90% reflective panel, indoor, 750lux)
Maximum detection angle [°] 120
Connectors
Power supply connector(s) USB-C female
JST-PH (compatible) male
IO-connector(s) USB-C female
JST-PH (compatible) male

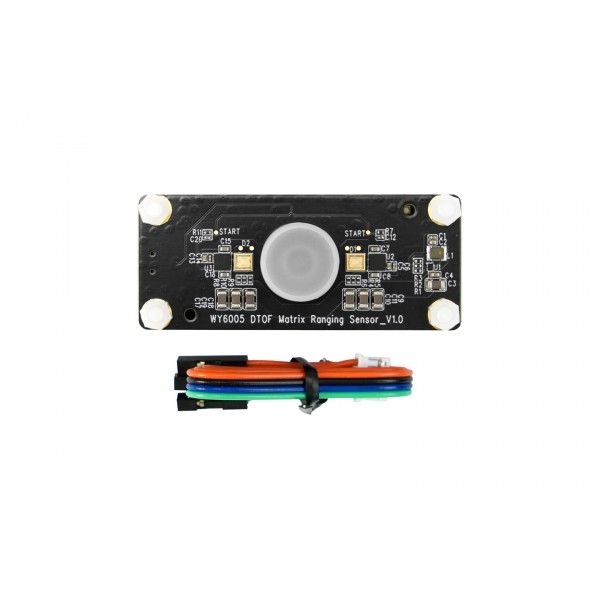

Package contents
Package contents 1x Sensor module
1x JST-PH to DuPont female cable
