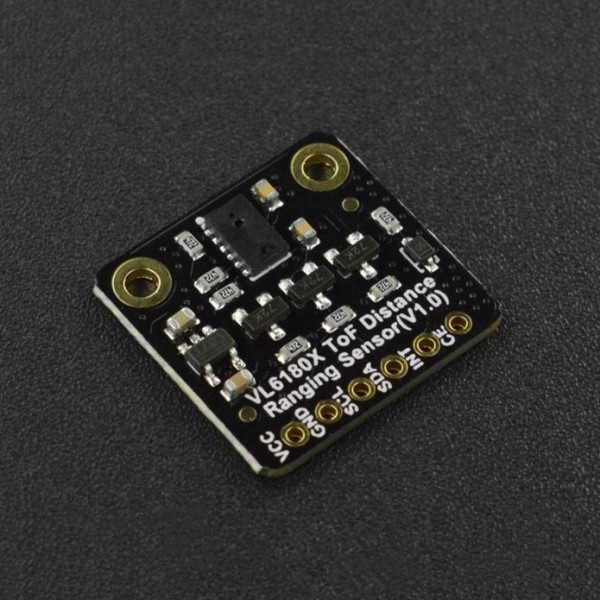

DFRobot Fermion VL6180X Time-of-Flight ToF Distance Sensor
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006209
€7.50
Ex Tax: €6.20
Your shopping cart is empty!
A Time of Flight (ToF) distance sensor and light sensor in one.
See the following page for more information: Wiki
This product has 0 review(s) in total.
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | SEN0427 |
| Minimum operating temperature [°C] | -20 |
| Maximum operating temperature [°C] | 85 |
| Features | Object detection sensor Light sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 1 |
| Dimension X [mm] | 19 |
| Dimension Y [mm] | 18 |
| Mounting options | Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | I2C |
| Default I2C address | 0x29 |
| Adjustable I2C address | No |
| Built-in pull-up resistor(s) [kΩ] | 4.7 |
| Light sensor | |
| Sensor (chip) | VL6180X |
| Measurable light | Visible |
| Light sensor type | Light intensity |
| Minimum measuring range [lux] | 1 |
| Maximum measuring range [lux] | 20800 |
| Smallest resolution [lux] | 0.32 |
| Maximale resolution [bit] | 16 |
| Object detection sensor | |
| Sensor (chip) | VL6180X |
| Type | ToF |
| Detection type | Distance |
| Minimum measuring range [cm] | 0.5 |
| Maximum measuring range [cm] | 10 |
| Smallest resolution [mm] | 1 |
| Maximum detection angle [°] | 25 (±5) |
| Connectors | |
| Power supply connector(s) | Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Through hole solder pin(s) (2.54mm) |
| Package contents | |

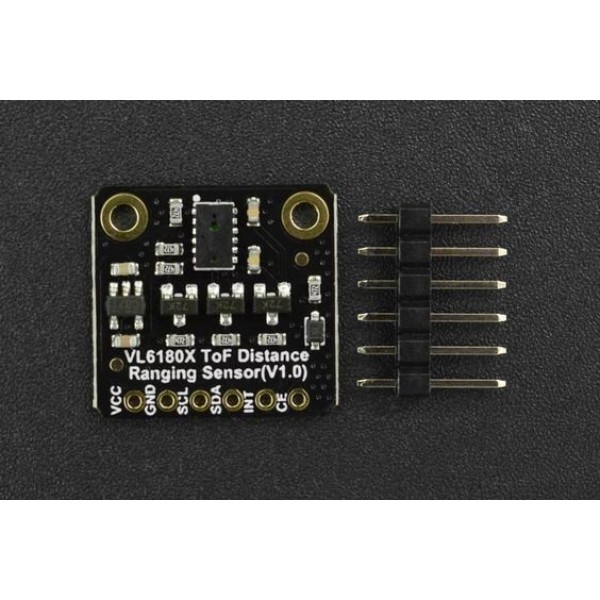

| Package contents | 1x VL6180X sensor module 1x Male pin header 6p |
