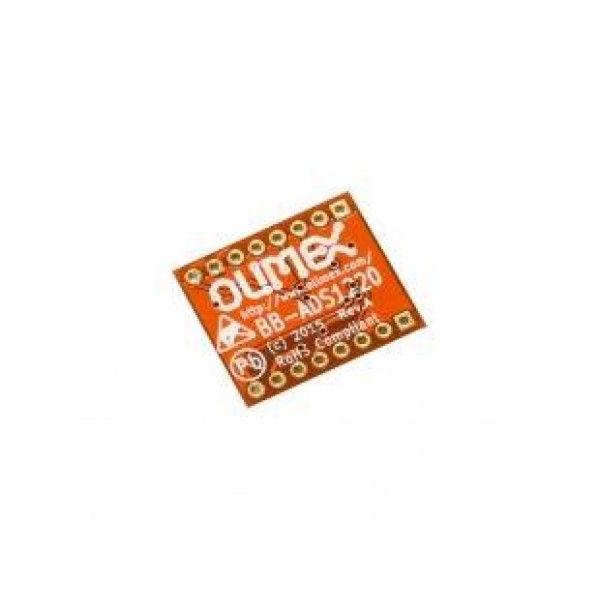

Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels

Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels
Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels
Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels
Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels
Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005923
€18.75
Ex Tax: €15.50

An ADC module that can measure voltage with high resolution. In addition, the module also has a built-in temperature sensor and a built-in signal amplifier to be able to measure small voltages.

See the following page for more information: GitHub

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Olimex BB-ADS1220 ADC Module - 24bit - SPI - 4 Channels

This product has 0 review(s) in total.

Specifications

General
Brand Olimex
Manufacturer model/SKU BB-ADS1220
Model revision A
Norm conformity RoHS
Features Temperature sensor
General physical appearance
Main color Red
Weight [g] 2
Dimension X [mm] 22
Dimension Y [mm] 19
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 2.3
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 2.3
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) SPI
ADC
ADC chip ADS1220
ADC input type Single ended
Differential
Maximum available analog input pins (ADC) 4
ADC resolution [bit] 24
Minimum ADC measuring voltage [V] 0
Maximum ADC measuring voltage [V] 5.5
Maximum ADC differential input range [±V] 5.5
Temperature sensor
Sensor (chip) ADS1220
Minimum measuring range [°C] 0
Maximum measuring range [°C] 125
Smallest resolution [°C] 0.03125
Maximum resolution [bit] 14
Accuracy [±°C] 0.5
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)

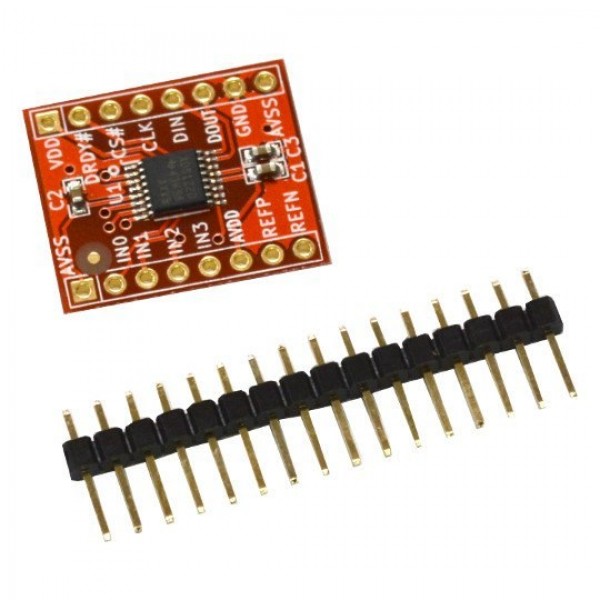

Package contents
Package contents 1x ADC module
2x Male pin header 8p
