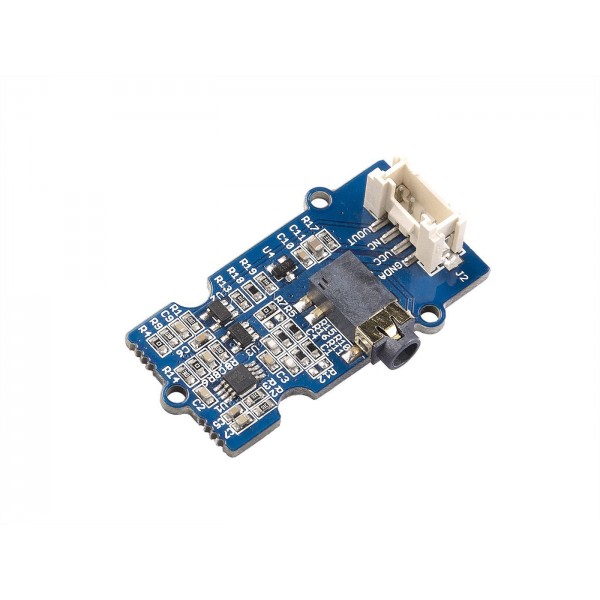

Seeed Studio Grove EMG Detector

An EMG detector from Seeed Studio for measuring activity in the muscles of the human body. The EMG detector measures small signals coming from the muscles, that signal is then amplified and filtered. The output signal can be read on the Vout pin. With the built-in Grove connection and included Grove cable, the module can easily be connected to the microcontroller boards from Seeed Studio or other microcontrollers with Grove connectors.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Signal voltage (output voltage): 1.5 - 3.3V
• Electrode connector: 3.5mm jack
• Connector: Grove

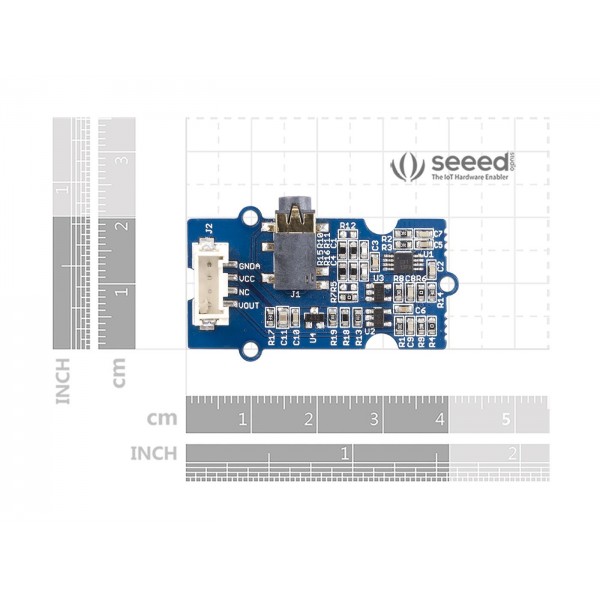

• Dimensions: See images

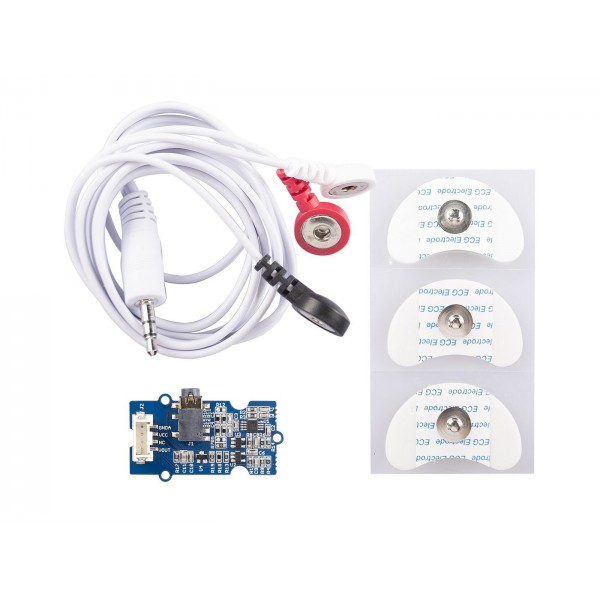

Package contents:

• 1x Seeed Studio Grove EMG detector
• 6x Disposable EMG electrode
• 1x EMG cable for 3 electrodes (~1m) with 3.5mm jack
• 1x Grove cable

See the following page for more information and examples: Seeed Studio Grove EMG Detector
