ECG Kit - AD8232

This ECG kit uses the AD8232 chip to measure your heart rate.

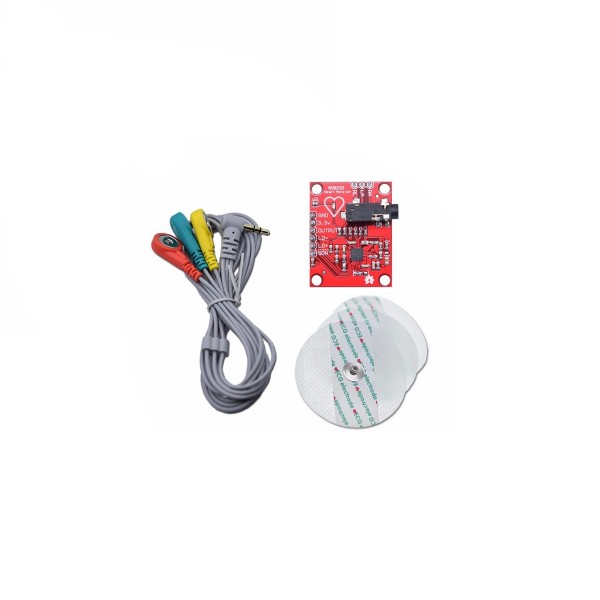

This kit contains:

• AD8232 module
• 3 Disposable ECG electrodes (spare electrodes can be ordered here)
• Connection wire for the ECG electrodes

Specifications:

• Input voltage: 3.3V
• Dimensions PCB (lxbxh): 35.5x30.5x10.5mm
• Diameter electrodes: 52mm

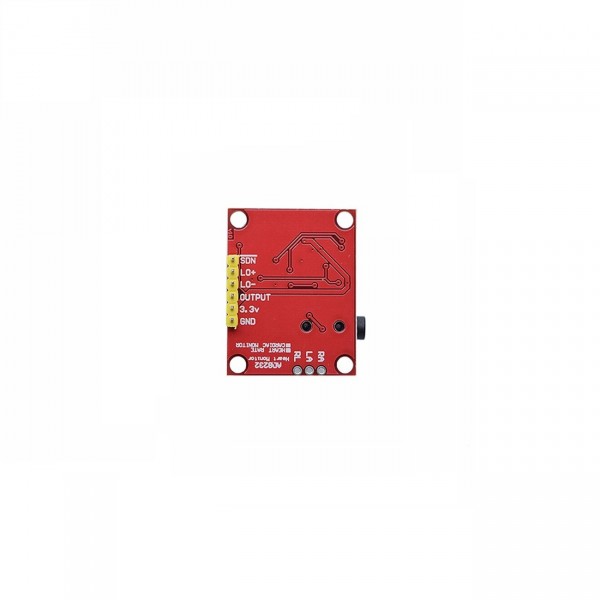

Pinout:

• Input: 3.3V (3.3V)
• Analog output (OUTPUT)
• LED indicator
• Shutdown pin (SDN)
• leads off detection (LO and LO+ pin)
• Ground (GND)

With this tutorial you can get it working with an Arduino.

Note: this device is not a medically certified product.
