Waveshare Environment Sensor Module - for Raspberry Pi Pico

Availability: Directly available from warehouse in Eindhoven
SKU: 004831

Based on 0 review(s) - Write a review

€35.00

Ex Tax: €28.93

Qty

Add to Cart

Add to wishlist

Only 4 pieces in stock

Description
Reviews

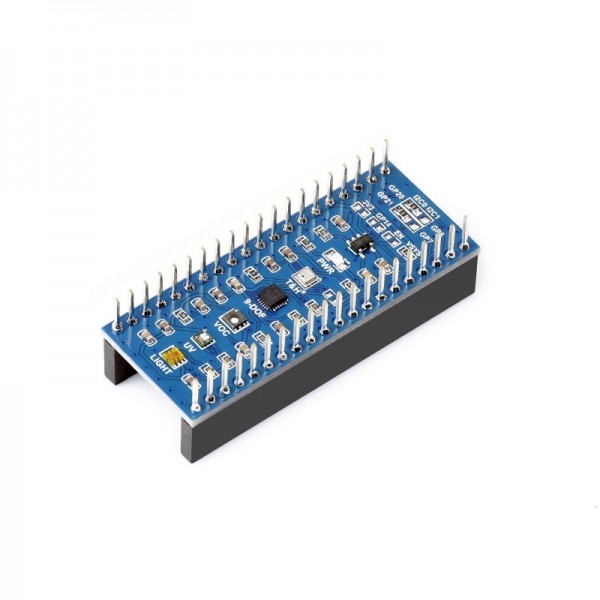

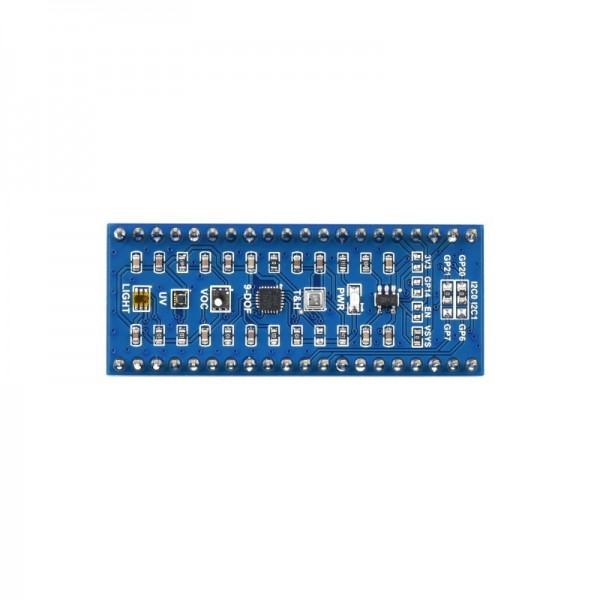

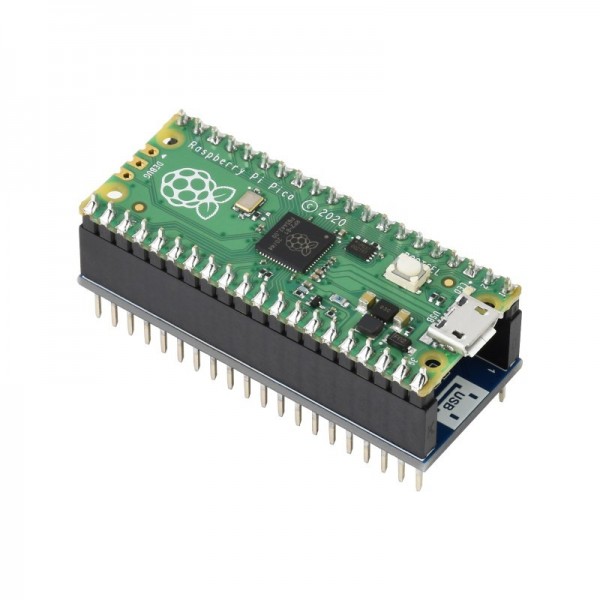

This environment sensor module from Waveshare is made for the Raspberry Pi Pico or other microcontrollers that use the same pin layout. This allows you to measure movement, temperature, humidity, light and air quality.

Note: No Raspberry Pi Pico is included.

Note: The wiki page below claims it has an ICM-20948 IMU sensor, however, this is actually the MPU-9250.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Environment Sensor Module - for Raspberry Pi Pico

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare Environment Sensor Module - for Raspberry Pi Pico , WS-20232 , Pressure

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	20232
Features	Temperature sensor Humidity sensor Light sensor Pressure sensor (gas/liquid) Acceleration sensor Magnetometer Gyroscope Gas sensor
General physical appearance
Main color	Blue
Weight [g]	10
Dimension X [mm]	52
Dimension Y [mm]	21
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication

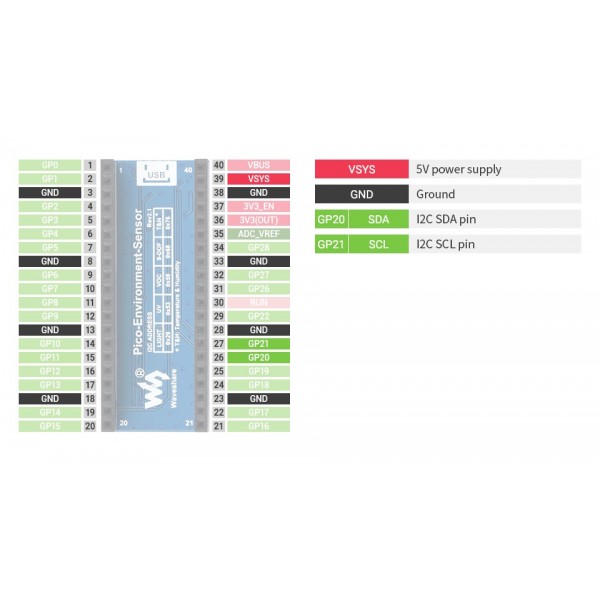

Hardware interface(s)	I2C

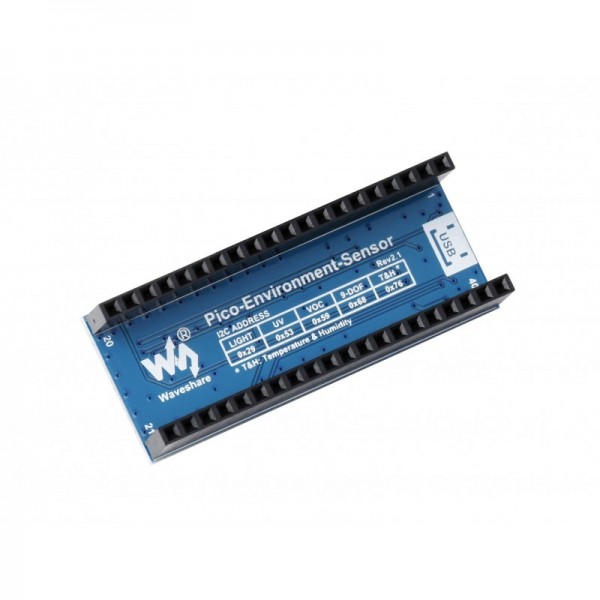

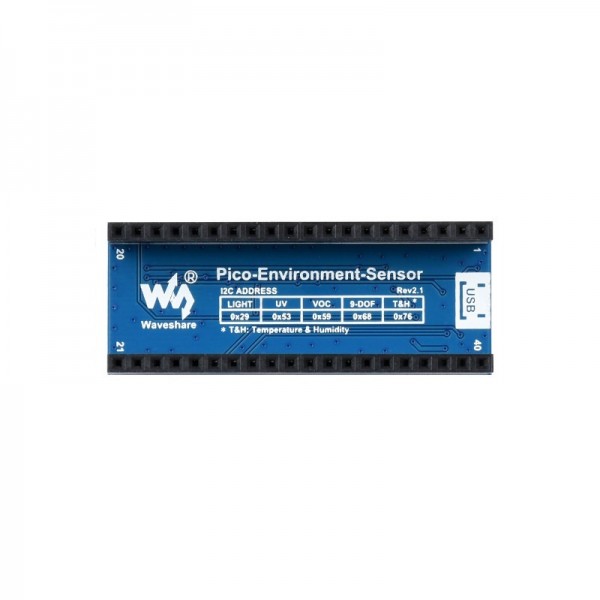

Default I2C address	0x29 (TSL25911FN) 0x76 (BME280) 0x68 (MPU-9250) 0x53 (LTR390-UV-1) 0x59 (SGP40)
Built-in pull-up resistor(s) [kΩ]	10
Temperature sensor
Sensor (chip)	BME280
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	85
Smallest resolution [°C]	0.01
Accuracy [±°C]	1.0
Humidity sensor
Sensor (chip)	BME280
Minimum measuring range [% R.H.]	0
Maximum measuring range [% R.H.]	100
Smallest resolution [%R.H.]	0.008
Accuracy [±%]	3.0
Pressure sensor
Sensor (chip)	BME280
Suitable medium	Air
Minimum measuring range [hPa]	300
Maximum measuring range [hPa]	1100
Smallest resolution [hPa]	0.0018
Accuracy [±hPa]	1.0
Light sensor
Sensor (chip)	TSL25911FN (visible light + IR) LTR390-UV-1 UV (UV + visible light)
Measurable light	Visible UV IR
Light sensor type	Light intensity
Acceleration sensor
Sensor chip/SoC	MPU-9250
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	16
Gyroscope
Sensor chip/SoC	MPU-9250
Degrees of freedom (DOF)	3
Maximum measuring range [±°/s]	2000
Maximum resolution [bit]	16
Magnetometer
Sensor (chip)	MPU-9250
Type	Compass
Degrees of freedom (DOF)	3
Minimum measuring range [mT]	0.0
Maximum measuring range [mT]	4.8
Maximum resolution [bit]	14
Gassensor
Sensor (chip)	SGP40
Measurable gasses	VOC
Output type	Exact
Minimum measuring range [ppm]	0.3
Maximum measuring range [ppm]	30
Minimum pre-heat time [s]	60
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x Environment Sensor Module
