Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico - ICM-20948 - LPS22HB

New

Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico - ICM-20948 - LPS22HB

Availability: Directly available from warehouse in Eindhoven
SKU: 006387

Based on 0 review(s) - Write a review

€18.00

Ex Tax: €14.88

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

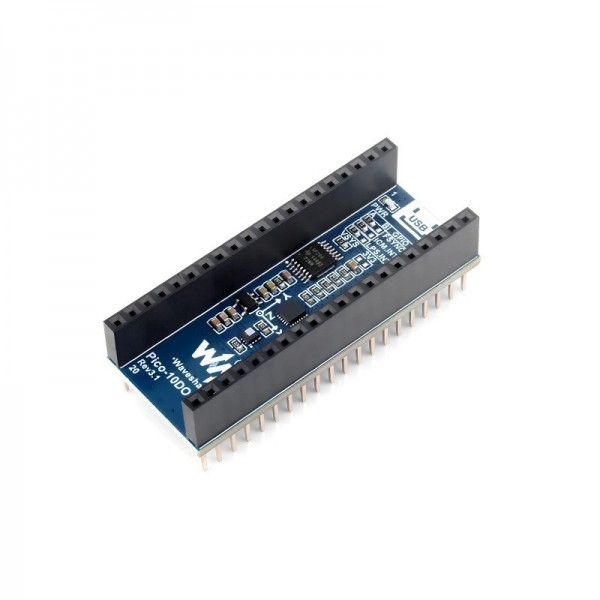

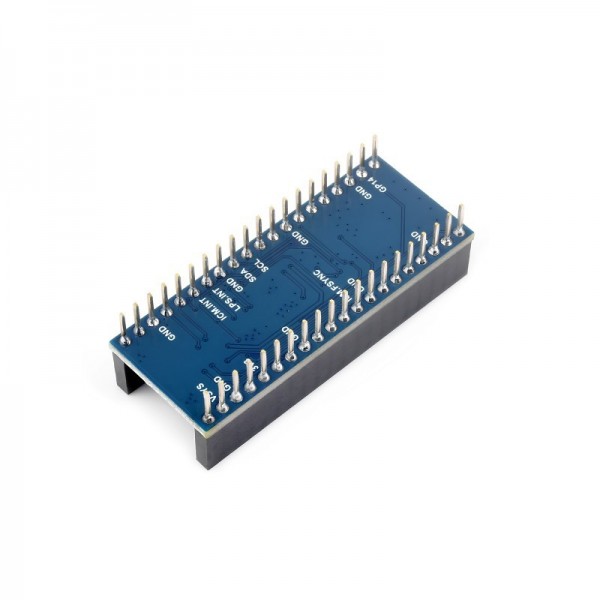

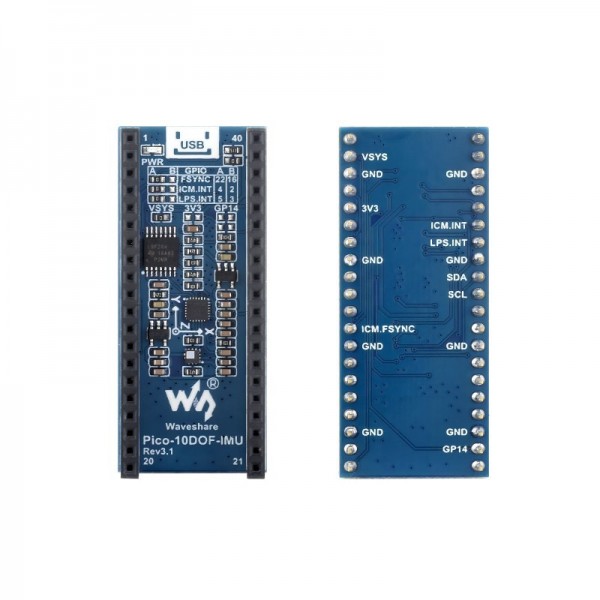

This module with Raspberry Pi Pico form factor has a 3-axis MEMS accelerometer, 3-axis MEMS gyroscope and 3-axis MEMS magnetometer (9DOF). In addition the module also has an air pressure sensor.

In this revision the MPU-9250 chip has been replaced by the ICM-20948 chip.

See the following page for more information: Wiki

Note: No Raspberry Pi is included.

Please login or register to review

Reviews Over Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico - ICM-20948 - LPS22HB

Average Rating:

This product has 0 review(s) in total.

Tags: Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico - ICM-20948 - LPS22HB , WS-19358-rev3.1 , Pressure

Specifications

General
Brand	Waveshare
Manufacturer model/SKU	19358
Model revision	Rev3.1
Features	Temperature sensor Pressure sensor (gas/liquid) Acceleration sensor Magnetometer Gyroscope
General physical appearance
Main color	Blue
Weight [g]	9

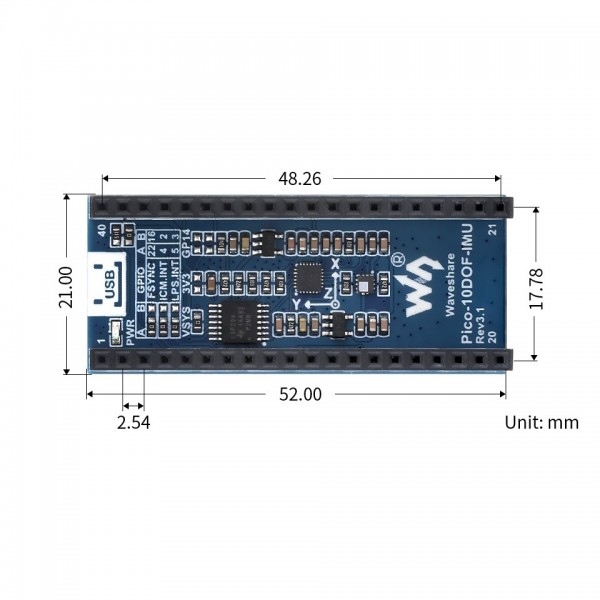

Dimension X [mm]	52
Dimension Y [mm]	21
Mounting options	Pin headers
Form factor	Module (general) Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication

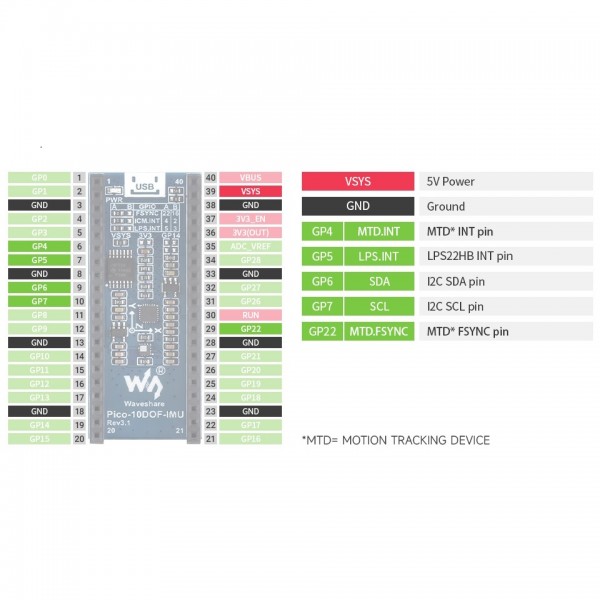

Hardware interface(s)	I2C
Default I2C address	0x68 (ICM-20948) 0x5C (LPS22HB)
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	4.7
Temperature sensor
Sensor (chip)	LPS22HB
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	85
Maximum resolution [bit]	16
Accuracy [±°C]	1.5 (0-65°C)
Pressure sensor
Sensor (chip)	LPS22HB
Suitable medium	Air
Minimum measuring range [hPa]	260
Maximum measuring range [hPa]	1260
Maximum resolution [bit]	24
Accuracy [±hPa]	0.1 (see datasheet)
Acceleration sensor
Sensor chip/SoC	ICM-20948
Degrees of freedom (DOF)	3
Maximum measuring range [±g]	16
Maximum resolution [bit]	16
Gyroscope
Sensor chip/SoC	ICM-20948
Degrees of freedom (DOF)	3
Maximum measuring range [±°/s]	2000
Maximum resolution [bit]	16
Magnetometer
Sensor (chip)	ICM-20948
Type	Compass
Degrees of freedom (DOF)	3
Minimum measuring range [mT]	0.0
Maximum measuring range [mT]	4.9
Maximum resolution [bit]	16
Connectors
Power supply connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
IO-connector(s)	Pin header male (2.54mm) Pin header female (2.54mm)
Package contents
Package contents	1x IMU module
