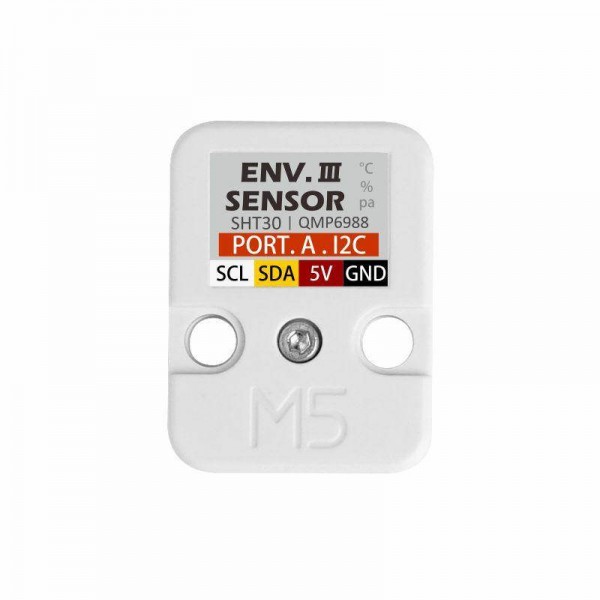

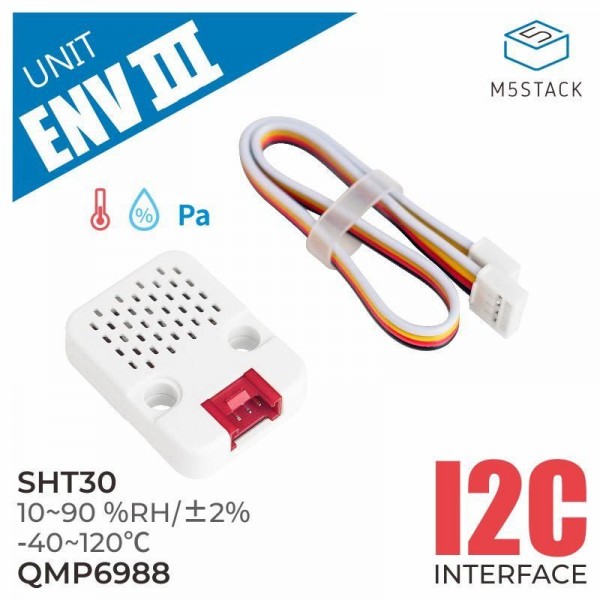

M5Stack ENV III Unit

The ENV III Unit is an upgrade of the ENV II and ENV Unit. This module has a temperature, humidity and air pressure sensor with a Grove connection for M5Stack.

The difference between the ENV III Unit and the ENV II Unit is that this one uses the QMP6988 instead of the BMP280 air pressure sensor.

Specifications:

• Air pressure sensor:
  • Chip: QMP6988
  • Measuring range: 300~1100hPa
  • Accuracy: ±3.9hPa
  • Communication: I2C
  • I2C address: 0x70
• Temperature sensor: SHT30
  • Measuring range: -40~120°C
  • Accuracy: ±0.2°C
  • Communication: I2C
  • I2C address: 0x44
• Humidity sensor: SHT30
  • Measuring range: 10~90%RH
  • Accuracy: ±2%
  • Communication: I2C
  • I2C address: 0x44
• 2x LEGO^® compatible holes
• Connector: Grove
• Operating temperature: 0 - 40°C
• Dimensions: 24 x 32 x 8mm

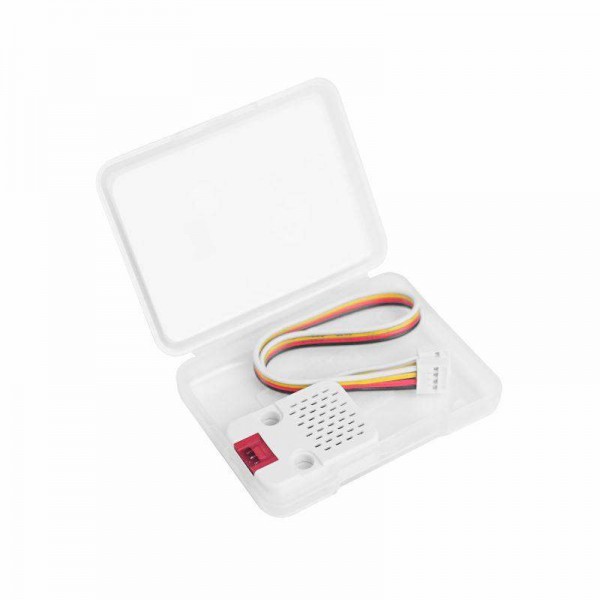

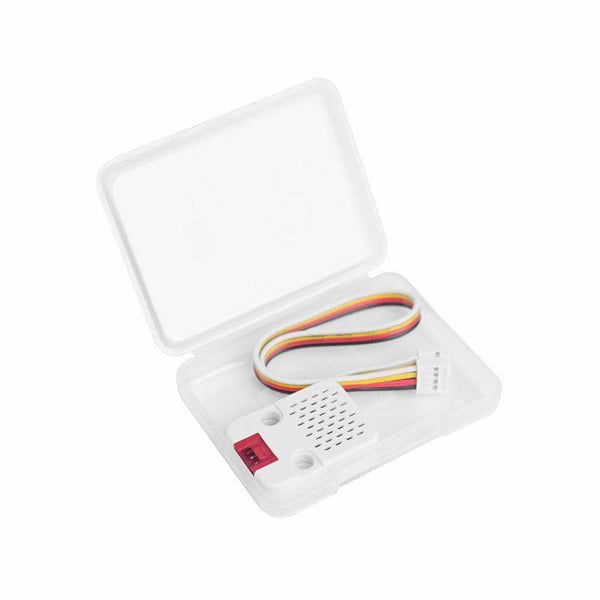

Package contents:

• 1x M5Stack ENV III Unit
• 1x Grove cable

See the following page for more information: M5Stack ENV III Unit.
