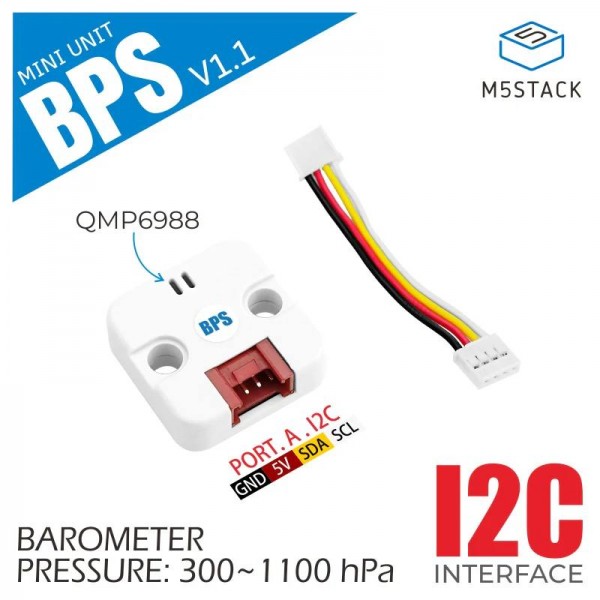

M5Stack Barometric Pressure 2 Unit - QMP6988
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004725
€6.00
Ex Tax: €4.96
Your shopping cart is empty!
See the following page for more information: Wiki
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U090-B |
| Features | Temperature sensor Pressure sensor (gas/liquid) |
| General physical appearance | |
| Main color | White |
| Weight [g] | 4 |
| Dimension X [mm] | 24 |
| Dimension Y [mm] | 24 |
| Dimension Z [mm] | 8 |
| Mounting options | LEGO (compatible) holes |
| Form factor | M5Stack Unit Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | I2C |
| Default I2C address | 0x56 |
| Temperature sensor | |
| Sensor (chip) | QMP6988 |
| Minimum measuring range [°C] | -40 |
| Maximum measuring range [°C] | 80 |
| Accuracy [±°C] | 2.0 |
| Pressure sensor | |
| Sensor (chip) | QMP6988 |
| Suitable medium | Air |
| Minimum measuring range [hPa] | 300 |
| Maximum measuring range [hPa] | 1100 |
| Maximum resolution [bit] | 24 |
| Accuracy [±hPa] | 1.0 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male |
| IO-connector(s) | HY2.0 (Grove) male |
| Package contents | |
| Package contents | 1x M5STACK Barometric Pressure 2 Unit 1x Grove female cable (5cm) |
