GY-MS5803-14BA Pressure and Temperature Sensor Module - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 005449

Based on 0 review(s) - Write a review

€21.50

Ex Tax: €17.77

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

A very compact barometer and temperature sensor in one. The sensor chip is designed to perform underwater measurements and is therefore waterproof on top (note: the PCB itself is not water resistant).

See the following page for an Arduino IDE library: MS5803_14

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over GY-MS5803-14BA Pressure and Temperature Sensor Module - I2C

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005449_MS5803-14BA-datasheet.pdf

Tags: GY-MS5803-14BA Pressure and Temperature Sensor Module - I2C , GY-MS5803-14BA , Pressure

Specifications

General
Brand	GY
Manufacturer model/SKU	GY-MS5803-14BA
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Temperature sensor Pressure sensor (gas/liquid)
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	13
Dimension Y [mm]	11
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	1.8
Maximum supply voltage [V DC]	3.6
Minimum IO-pin input voltage [V]	1.8
Maximum IO-pin input voltage [V]	3.6
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x76

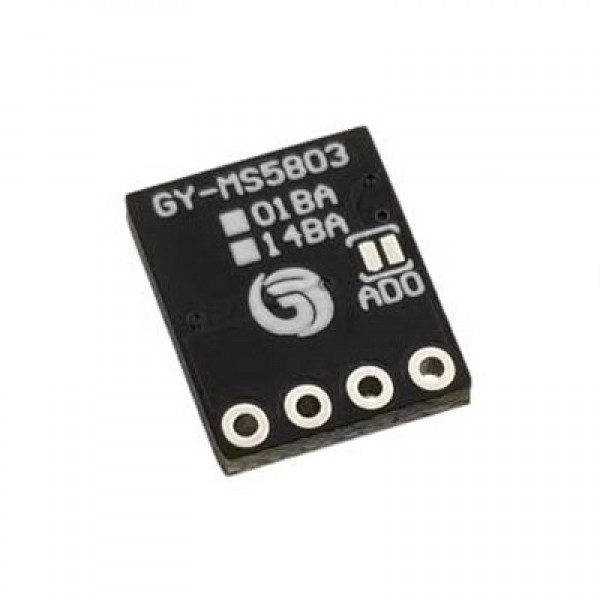

Adjustable I2C address	Yes (to 0x77 via soldering pad)
Built-in pull-up resistor(s) [kΩ]	10
Temperature sensor
Sensor (chip)	MS5803-14BA
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	85
Smallest resolution [°C]	0.002
Maximum resolution [bit]	24
Accuracy [±°C]	0.8 (See datasheet)
Pressure sensor
Sensor (chip)	MS5803-14BA
Suitable medium	Air Water (note: see note in product description)
Minimum measuring range [hPa]	0
Maximum measuring range [hPa]	14000
Smallest resolution [hPa]	0.2
Maximum resolution [bit]	24
Accuracy [±hPa]	20 (See datasheet)
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x Sensor module 1x Male pin header 4p
