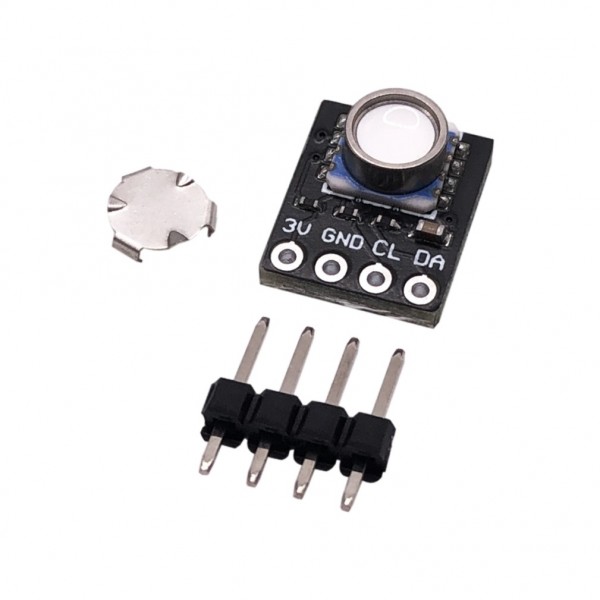

GY-MS5803-01BA Pressure and Temperature Sensor Module - I2C

GY-MS5803-01BA Pressure and Temperature Sensor Module - I2C
GY-MS5803-01BA Pressure and Temperature Sensor Module - I2C
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005451
Based on 0 review(s) - Write a review
€16.75
Ex Tax: €13.84
10 or more €16.50
20 or more €16.25
50 or more €16.00
100 or more €15.75
Add to Cart
Add to wishlist

A very compact barometer and temperature sensor in one. The sensor chip is designed to perform underwater measurements and is therefore waterproof on top (note: the PCB itself is not water resistant).

See the following page for an Arduino IDE library: MS5803_01

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over GY-MS5803-01BA Pressure and Temperature Sensor Module - I2C

This product has 0 review(s) in total.

Tags: Air , Pressure , GY-MS5803-01BA Pressure and Temperature Sensor Module - I2C , 005451 , GY , GY-MS5803-01BAv2 , Pressure sensor (gas/liquid) , Temperature sensor , Touch sensor , I2C

Specifications

General
Brand GY
Manufacturer model/SKU GY-MS5803-01BAv2
Minimum operating temperature [°C] -40
Maximum operating temperature [°C] 85
Features Touch sensor
Temperature sensor
Pressure sensor (gas/liquid)
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 13
Dimension Y [mm] 11
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 1.8
Maximum supply voltage [V DC] 3.6
Minimum IO-pin input voltage [V] 1.8
Maximum IO-pin input voltage [V] 3.6
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x76
Adjustable I2C address Yes
(to 0x77 via soldering pad)
Built-in pull-up resistor(s) [kΩ] 10
Temperature sensor
Sensor (chip) MS5803-01BA
Minimum measuring range [°C] -40
Maximum measuring range [°C] 85
Smallest resolution [°C] 0.002
Maximum resolution [bit] 24
Accuracy [±°C] 0.8
(see datasheet)
Pressure sensor
Sensor (chip) MS5803-01BA
Suitable medium Air
Water
(note: see note in product description)
Minimum measuring range [hPa] 10
(note: minimum operating pressure is 300hPa)
Maximum measuring range [hPa] 1300
(note: maximum operating pressure is 1200hPa)
Smallest resolution [hPa] 0.012
Maximum resolution [bit] 24
Accuracy [±hPa] 2.0
(see datasheet)
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x Sensor module
1x Male pin header 4p
