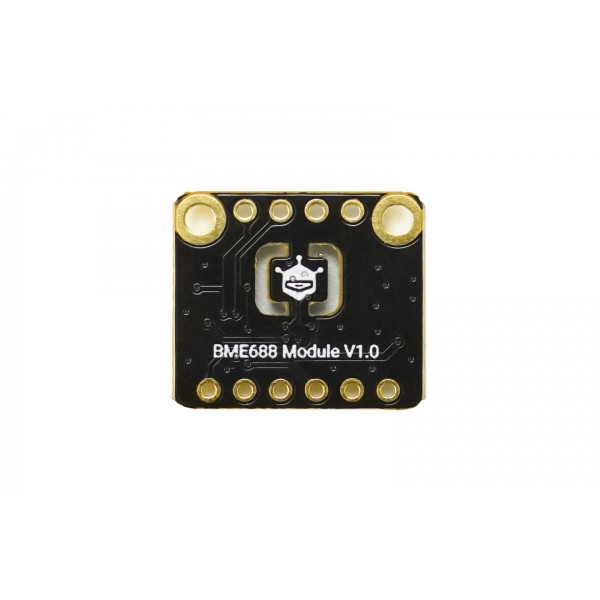

DFRobot Fermion BME688 Environmental Sensor - I2C - SPI

DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
DFRobot Fermion BME688 Environmental Sensor - I2C - SPI
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007459
Based on 0 review(s) - Write a review
€15.00
Ex Tax: €12.40
Add to Cart
Add to wishlist

A compact environmental sensor from DFRobot that uses the BME688 sensor. The module measures air quality, temperature, humidity, and atmospheric pressure.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Fermion BME688 Environmental Sensor - I2C - SPI

This product has 0 review(s) in total.

Tags: Air , Humidity , DFRobot Fermion BME688 Environmental Sensor - I2C - SPI , 007459 , DFRobot , SEN0629 , Pressure sensor (gas/liquid) , Humidity sensor , Temperature sensor , Gas sensor , SPI , I2C

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0629
Features Gas sensor
Humidity sensor
Temperature sensor
Pressure sensor (gas/liquid)
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 18
Dimension Y [mm] 16
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
(I2C)
3.3
(SPI)
IO-pin output voltage [V] Equal to supply voltage
(I2C)
3.3
(SPI)
Communication
Hardware interface(s) I2C
SPI
Default I2C address 0x76
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 4.7
Temperature sensor
Sensor (chip) BME688
Minimum measuring range [°C] -40
Maximum measuring range [°C] 85
Smallest resolution [°C] 0.01
Accuracy [±°C] 0.5
(0-65°C)
Humidity sensor
Sensor (chip) BME688
Minimum measuring range [% R.H.] 0
Maximum measuring range [% R.H.] 100
Smallest resolution [%R.H.] 0.008
Accuracy [±%] 3.0
(20-80%R.H. @25°C)
Pressure sensor
Sensor (chip) BME688
Suitable medium Air
Minimum measuring range [hPa] 300
Maximum measuring range [hPa] 1100
Smallest resolution [hPa] 0.0018
Accuracy [±hPa] 0.6
(300-1100hPa, 0-65°C)
Gassensor
Sensor (chip) BME688
Measurable gasses VOC
Output type Exact
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)

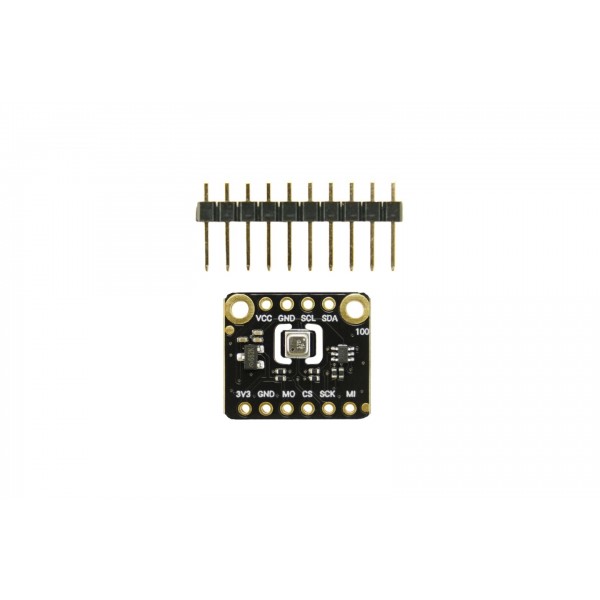

Package contents
Package contents 1x Sensor module
1x Male pin header 10p
