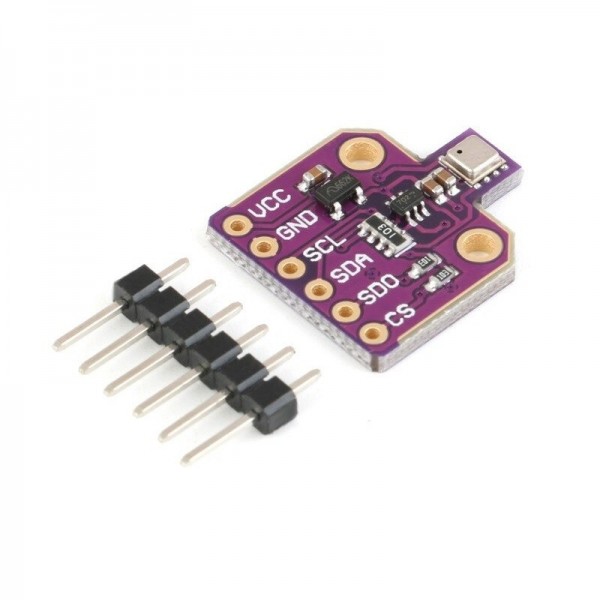

BME680 Sensor Module with Level Converter - Air Pressure - Air Quality - Humidity - Temperature

This module has four sensors in one that can measure temperature, air pressure, humidity and air quality. The module has a built-in level converter making it easy to use with both 3.3V and 5V microcontrollers.

Specifications:

• Supply voltage: 3.3 - 5V DC
• Signal voltage: 3.3 - 5V
• Sensor chip: BME680
• Communication: I2C or SPI
• Default I2C address: 0x77 (can be changed to 0x76 by connecting SDO to GND)
• Air pressure sensor:
  • Measuring range: 300 - 1100hPa
  • Smallest resolution: 20bit
  • Accuracy: ±0.6hPa
• Temperature sensor:
  • Measuring range: 0-65°C
  • Smallest resolution: 20bit
  • Accuracy: ±1.0°C
• Humidity sensor:
  • Measuring range: 0 - 100%RH
  • Smallest resolution: 16bit
  • Accuracy: ±3%
• Air quality sensor*:
  • Measuring range: 0 - 500 IAQ
  • Smallest resolution: 1 IAQ index
  • Accuracy: ±15%
• Operating temperature: -40 - 85°C
• Diameter mounting holes: 2mm
• Dimensions PCB: 16.3 x 18.7mm

Pinout:

• VCC: Power Supply (+)
• GND: Ground (-)
• SCL: I2C/SPI clock pin
• SDA: I2C/SPI data in pin
• SDO: SPI data from pin/I2C slave address pin
• CS (SS): SPI chip select pin

Package contents:

• 1x BME680 Digital Barometer
• 1x Male headers

See the following page for examples with a similar module: BME680

*Specifications are in combination with the BSEC library. See the second page in the link above, or the following page: BSEC Arduino Library

Check the tab "Downloads" for more information and/or downloads.
