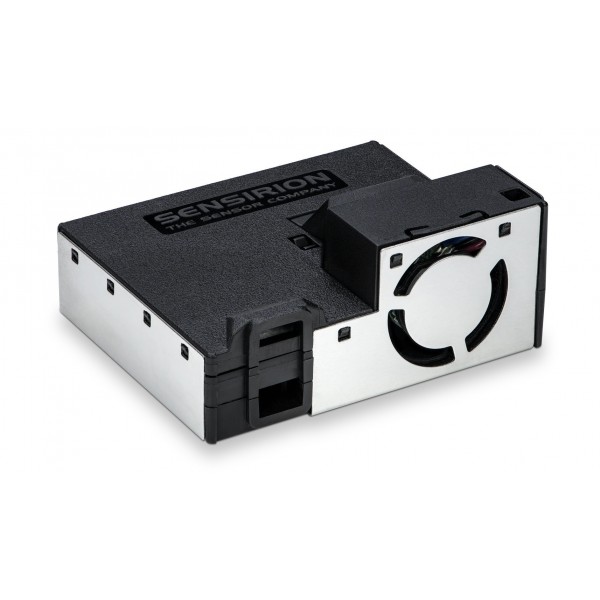

Name: Sensirion SEN55-SDN-T Environmental Sensor - Particulate Matter - Humidity - Temperature - VOC - NOx - SEN55-SDN-T
SKU: 005811
Price: 28.75 EUR
Availability: InStock

Sensirion SEN55-SDN-T Environmental Sensor - Particulate Matter - Humidity - Temperature - VOC - NOx

Availability: Directly available from warehouse in Eindhoven
SKU: 005811

Based on 0 review(s) - Write a review

€28.75

Ex Tax: €23.76

5 or more €28.25

10 or more €27.75

20 or more €27.25

50 or more €26.75

100 or more €26.25

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

An environmental sensor from Sensirion that can measure temperature, particulate matter concentrations, humidity, VOC and NO_x. The VOC (Volatile Organic Compound) and NO_x gas concentrations are measured relatively, using a VOC Index and NO_x Index. The sensor works with I2C protocol.

Note: No cable is included, this can be ordered separately: JST-GHR to DuPont Female Compatible Cable 6p.

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Sensirion SEN55-SDN-T Environmental Sensor - Particulate Matter - Humidity - Temperature - VOC - NOx

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005811_Sensirion_SEN5x_Datasheet.pdf

Tags: Sensirion SEN55-SDN-T Environmental Sensor - Particulate Matter - Humidity - Temperature - VOC - NOx , SEN55-SDN-T , Gas

Specifications

General
Brand	Sensirion
Manufacturer model/SKU	SEN55-SDN-T
Norm conformity	RoHS
Minimum operating humidity [%R.H.]	0
Maximum operating humidity [%R.H.]	90
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	50
Features	Temperature sensor Humidity sensor Enclosure Particulate matter sensor Gas sensor
General physical appearance
Main color	Black
Weight [g]	37

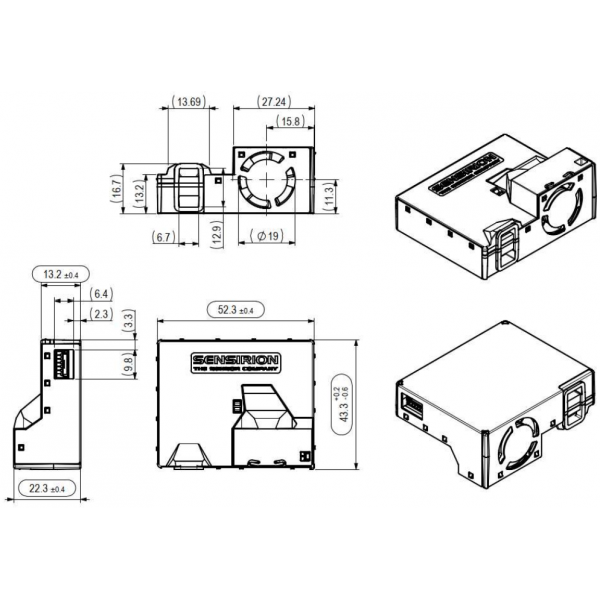

Dimension X [mm]	52
Dimension Y [mm]	43
Dimension Z [mm]	23
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	4.5
Maximum supply voltage [V DC]	5.5
Indication average current consumption [mA]	63
Indication (deep-)sleep current [μA]	2600
Minimum IO-pin input voltage [V]	2.3
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Same as I2C bus voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x69
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	None (10kΩ resistors recommended)
Temperature sensor
Sensor (chip)	SEN55
Minimum measuring range [°C]	-10
Maximum measuring range [°C]	50
Maximum resolution [bit]	16
Accuracy [±°C]	0.45
Humidity sensor
Sensor (chip)	SEN55
Minimum measuring range [% R.H.]	0
Maximum measuring range [% R.H.]	90
Maximum resolution [bit]	16
Accuracy [±%]	4.5
Particulate matter sensor
Sensor (chip)	SEN55
Output concentration(s)	PM1 PM2.5 PM10 PM4
Minimum particle size [μm]	0.3
Minimum measuring range [mg/m³]	0.0
Maximum measuring range [mg/m³]	1.0
Accuracy [±μg/m³]	5 (PM1/PM2.5, 0-100μg/m³) 25 (PM4/PM10, 0-100μg/m³) (See datasheet)
Accuracy [%]	5 (PM1/PM2.5, 0-100μg/m³) 10 (PM1/PM2.5, 100-1000μg/m³) 25 (PM4/PM10, 100-1000μg/m³) (See datasheet)
Gassensor
Sensor (chip)	SEN55
Measurable gasses	Nitrogen oxide NO Nitrogen dioxide NO2 VOC
Output type	Indicative
Minimum measuring range [ppm]	0 (VOC)
Maximum measuring range [ppm]	1000 (VOC)
Accuracy [%]	15 (VOC)
Minimum pre-heat time [s]	60
Connectors
Power supply connector(s)	JST-GH (compatible) male
IO-connector(s)	JST-GH (compatible) male
Package contents
Package contents	1x SEN55-SDN-T sensor
