Name: M5Stack CO2 Unit - SCD40 - M5STACK-U103
Brand: M5Stack
SKU: 004687
Price: 39 EUR
Availability: InStock

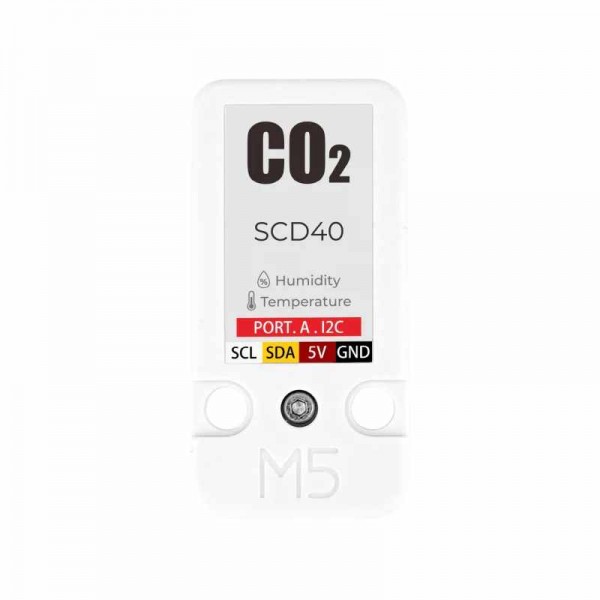

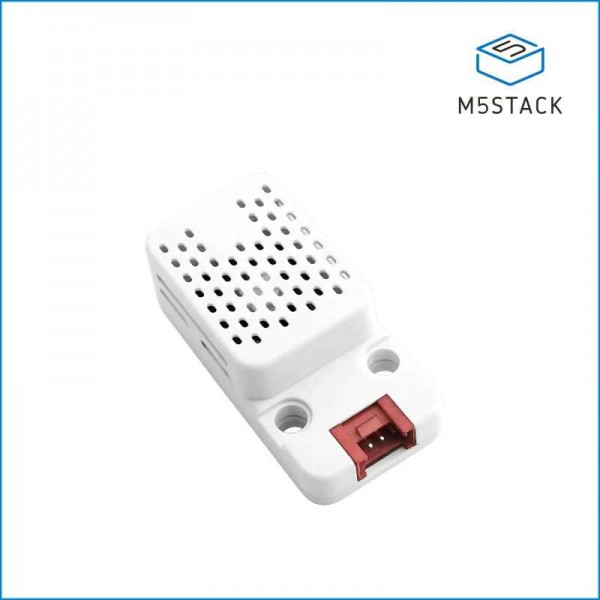

M5Stack CO2 Unit - SCD40

Based on 0 review(s) - Write a review

€39.00

Ex Tax: €32.23

10 or more €38.75

20 or more €38.50

50 or more €38.25

100 or more €38.00

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

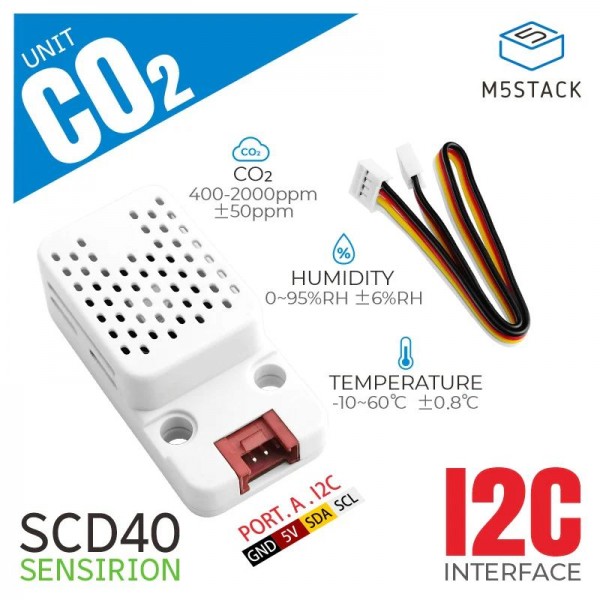

A CO2 sensor, humidity sensor and a temperature sensor in one of M5Stack.

See the following page for more information: Wiki

Please login or register to review

This product has 0 review(s) in total.

Tags: M5Stack CO2 Unit - SCD40 , M5STACK-U103 , Unit

General
Brand	M5Stack
Manufacturer model/SKU	U103
Minimum operating humidity [%R.H.]	0
Maximum operating humidity [%R.H.]	95
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	60
Features	Temperature sensor Humidity sensor Gas sensor
General physical appearance
Main color	White
Weight [g]	8
Dimension X [mm]	48
Dimension Y [mm]	24
Dimension Z [mm]	16
Mounting options	LEGO (compatible) holes
Form factor	Module (general) M5Stack Unit
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x62
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	15
Temperature sensor
Sensor (chip)	SCD40
Minimum measuring range [°C]	-10
Maximum measuring range [°C]	60
Accuracy [±°C]	0.8 (15 - 35°C)
Humidity sensor
Sensor (chip)	SCD40
Minimum measuring range [% R.H.]	0
Maximum measuring range [% R.H.]	100
Accuracy [±%]	6.0 (15 - 35°C)
Gassensor
Sensor (chip)	SCD40
Measurable gasses	Carbon dioxide O2
Output type	Exact
Minimum measuring range [ppm]	400
Maximum measuring range [ppm]	2000
Smallest resolution [ppm]	1
Accuracy [ppm]	50
Accuracy [%]	5
Connectors
Power supply connector(s)	HY2.0 (Grove) male
IO-connector(s)	HY2.0 (Grove) male
Package contents
Package contents	1x CO2 Unit 1x Grove Female cable (20CM)
