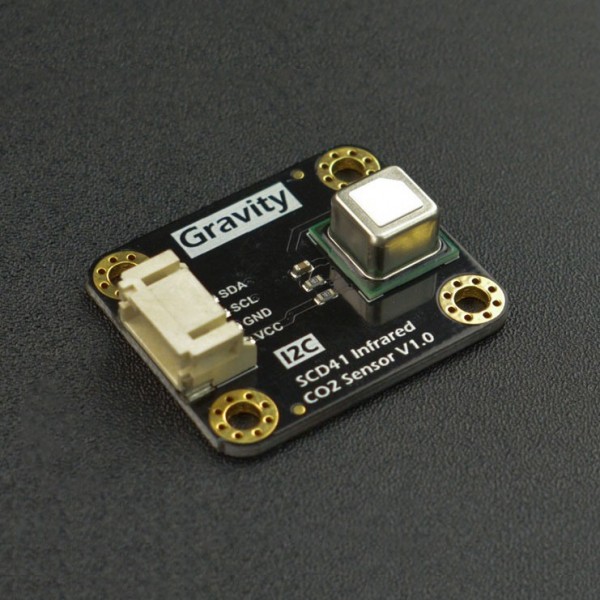

Name: DFRobot Gravity SCD41 Infrared CO2 - Temperature and Humidity Sensor - I2C - DFROBOT-SEN0536
SKU: 005055
Price: 54.5 EUR
Availability: InStock

DFRobot Gravity SCD41 Infrared CO2 - Temperature and Humidity Sensor - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 005055

Based on 0 review(s) - Write a review

€54.50

Ex Tax: €45.04

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

A CO2 sensor, humidity sensor and a temperature sensor in one of DFRobot.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Gravity SCD41 Infrared CO2 - Temperature and Humidity Sensor - I2C

Average Rating:

This product has 0 review(s) in total.

Datasheet: 005055_CD_DS_SCD40_SCD41_Datasheet_D1_052023.pdf

Tags: DFRobot Gravity SCD41 Infrared CO2 - Temperature and Humidity Sensor - I2C , DFROBOT-SEN0536 , Gas

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0536
Features	Temperature sensor Humidity sensor Gas sensor
General physical appearance
Main color	Black
Weight [g]	5
Dimension X [mm]	32
Dimension Y [mm]	27
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2.4
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	2.4
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Default I2C address	0x62
Adjustable I2C address	No
Built-in pull-up resistor(s) [kΩ]	10
Temperature sensor
Sensor (chip)	SCD41
Minimum measuring range [°C]	-10
Maximum measuring range [°C]	60
Accuracy [±°C]	0.8 (15 - 35°C)
Humidity sensor
Sensor (chip)	SCD41
Minimum measuring range [% R.H.]	0
Maximum measuring range [% R.H.]	95
Accuracy [±%]	6.0 (15 - 35°C)
Gassensor
Sensor (chip)	SCD41
Measurable gasses	Carbon dioxide O2
Output type	Exact
Minimum measuring range [ppm]	400
Maximum measuring range [ppm]	5000 (with specified accuracy) 40000 (maximum measurable value)
Smallest resolution [ppm]	1
Accuracy [ppm]	50
Accuracy [%]	5
Minimum pre-heat time [s]	60
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Package contents
Package contents	1x Gravity SCD41 sensor 1x JST-PH female to DuPont female cable
