Name: DFRobot Gravity DHT11 Temperature and Humidity Sensor - DFROBOT-DFR0067
Brand: DFRobot
SKU: 006237
Price: 7.75 EUR
Availability: InStock

DFRobot Gravity DHT11 Temperature and Humidity Sensor

Availability: Directly available from warehouse in Eindhoven
SKU: 006237

Based on 0 review(s) - Write a review

€7.75

Ex Tax: €6.41

Qty

Add to Cart

Add to wishlist

Only 7 pieces in stock

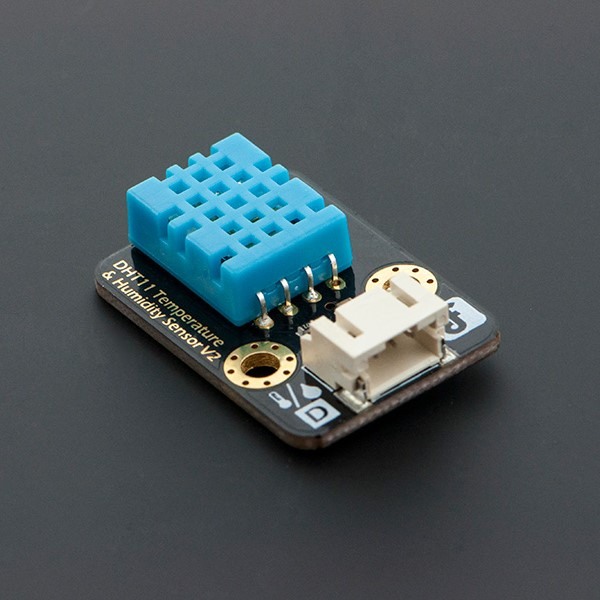

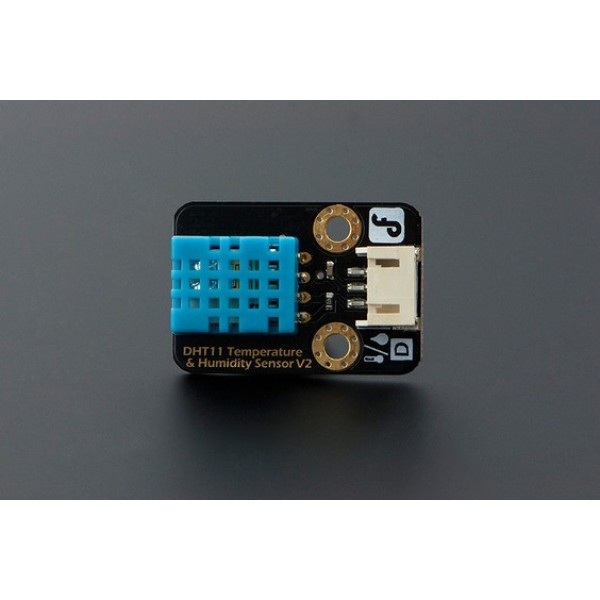

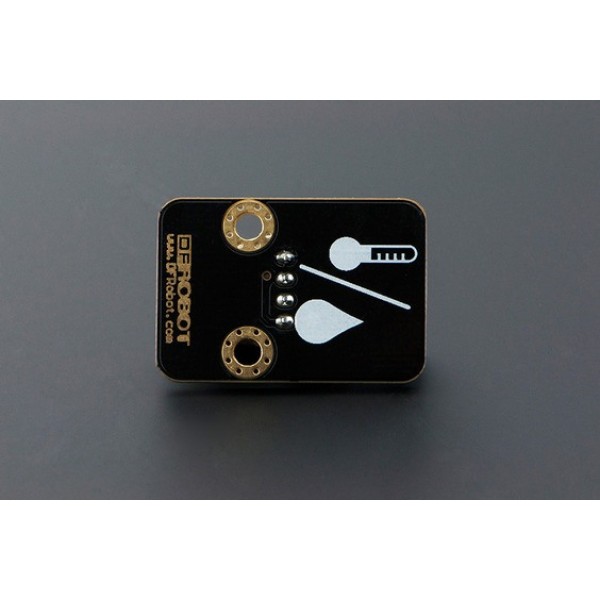

A temperature and humidity sensor module from DFRobot.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Gravity DHT11 Temperature and Humidity Sensor

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006237_DHT11.pdf

Tags: DFRobot Gravity DHT11 Temperature and Humidity Sensor , DFROBOT-DFR0067 , Humidity

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR0067
Features	Humidity sensor Temperature sensor
General physical appearance
Main color	Black
Weight [g]	3
Dimension X [mm]	32
Dimension Y [mm]	22
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	3.2
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	One-Wire
Temperature sensor
Sensor (chip)	DHT11
Minimum measuring range [°C]	-20
Maximum measuring range [°C]	60
Maximum resolution [bit]	16
Accuracy [±°C]	2.0
Humidity sensor
Sensor (chip)	DHT11
Minimum measuring range [% R.H.]	5
Maximum measuring range [% R.H.]	95
Maximum resolution [bit]	16
Accuracy [±%]	5.0
Connectors
Power supply connector(s)	JST-PH (compatible) male
IO-connector(s)	JST-PH (compatible) male
Package contents

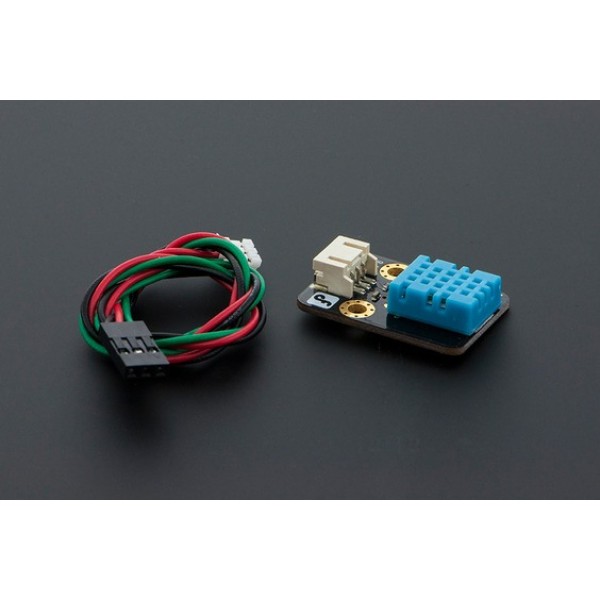

Package contents	1x JST-PH to DuPont female cable 1x DHT11 sensor module
