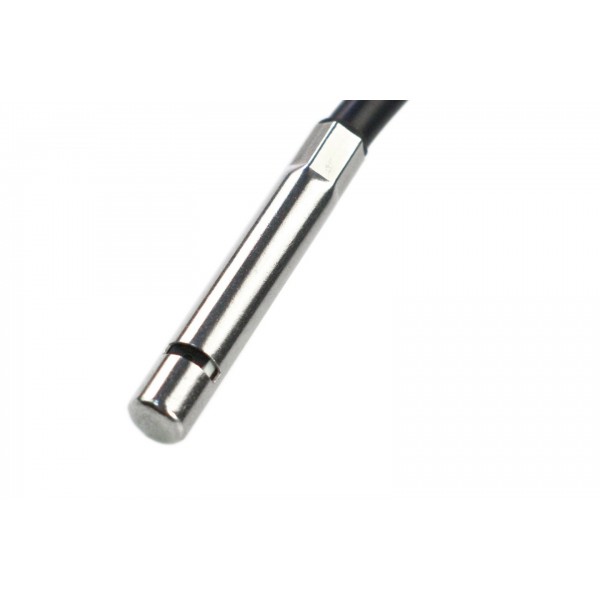

DFRobot CHT832X I2C Temperature and Humidity Sensor

DFRobot CHT832X I2C Temperature and Humidity Sensor
DFRobot CHT832X I2C Temperature and Humidity Sensor
DFRobot CHT832X I2C Temperature and Humidity Sensor
DFRobot CHT832X I2C Temperature and Humidity Sensor
DFRobot CHT832X I2C Temperature and Humidity Sensor
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007242
Based on 0 review(s) - Write a review
€9.75
Ex Tax: €8.06
Add to Cart
Add to wishlist

A temperature and humidity sensor from DFRobot.

See the following page for more information: GitHub

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot CHT832X I2C Temperature and Humidity Sensor

This product has 0 review(s) in total.

Tags: Air , Humidity , DFRobot CHT832X I2C Temperature and Humidity Sensor , 007242 , DFRobot , SEN0546 , Temperature sensor , Humidity sensor , I2C

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0546
Features Humidity sensor
Temperature sensor
General physical appearance
Main color Gray/silver
Weight [g] 34
Dimension X [mm] 5
Dimension Y [mm] 5
Dimension Z [mm] 30
Material Stainless steel
Form factor Wire/cable
General electrical properties
Minimum supply voltage [V DC] 2.5
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 2.5
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x44
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 4.7
Temperature sensor
Sensor (chip) CHT832X
Minimum measuring range [°C] -40
Maximum measuring range [°C] 125
Smallest resolution [°C] 0.01
Accuracy [±°C] 0.1
(10~50°C)
Humidity sensor
Sensor (chip) CHT832X
Minimum measuring range [% R.H.] 0
Maximum measuring range [% R.H.] 100
Smallest resolution [%R.H.] 0.01
Accuracy [±%] 2.0
Connectors
Power supply connector(s) Pin header female (2.54mm)
IO-connector(s) Pin header female (2.54mm)
Wire/cable
Wire/cable length [m] 1.5
Package contents
Package contents 1x Sensor
